Component location
›
Fuse 20, engine bay main fuse box 342
›
Notes
Fuse 20, engine bay main fuse box 342: Notes

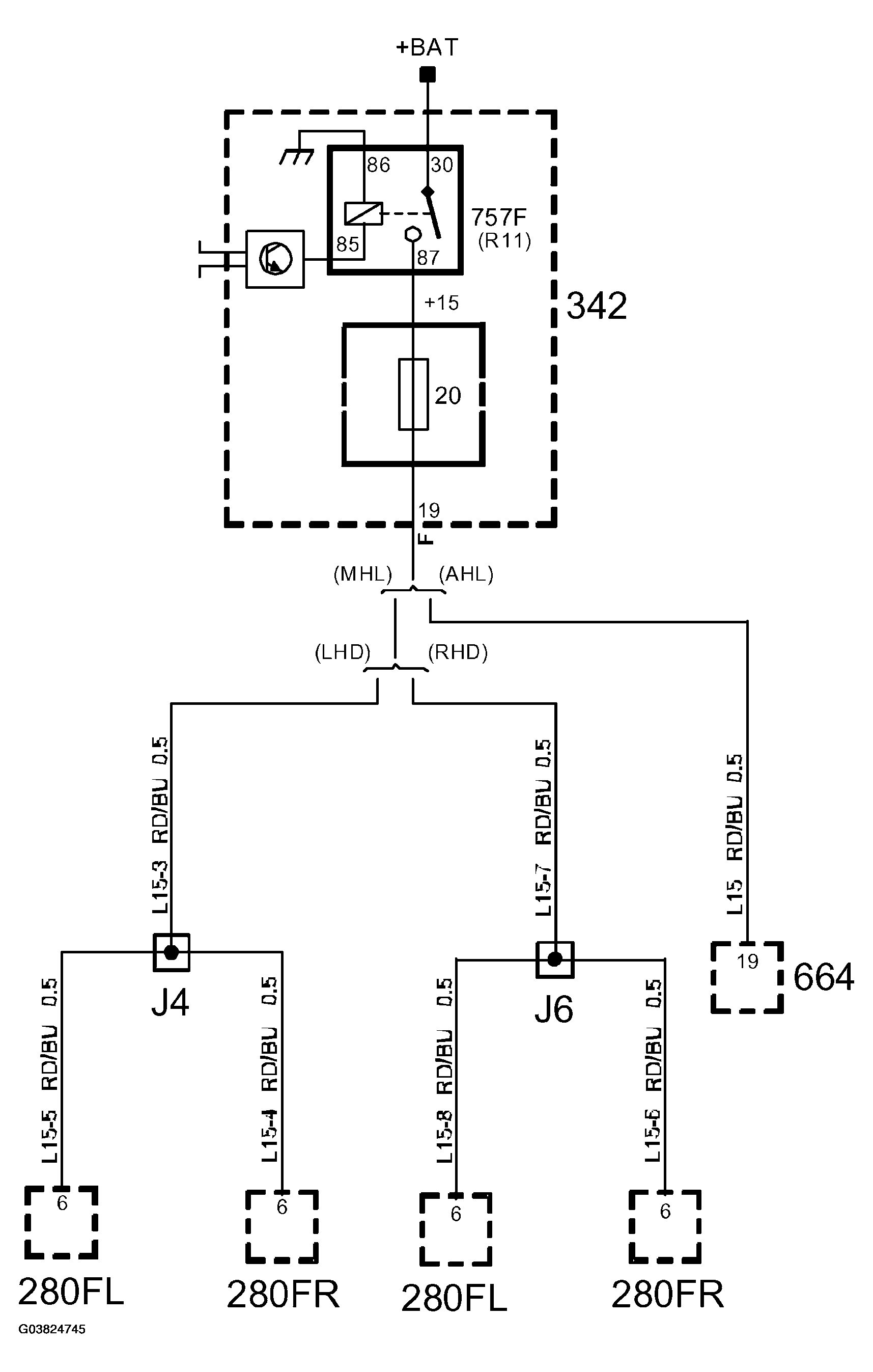

Fig 1: Fuse 20, Engine Bay Main Fuse Box 342 Circuit
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
