Rear load angle sensor (704R): Connection

REAR LOAD ANGLE SENSOR (704R) CONNECTION

Pin No.	Signal type	Description
1	Ground	Ground from AHL control module pin 10.
5	Power supply	Power supply 5 V, from AHL control module pin 9.
6	Signal	PWM signal with information on sensor status to AHL control module pin 6.

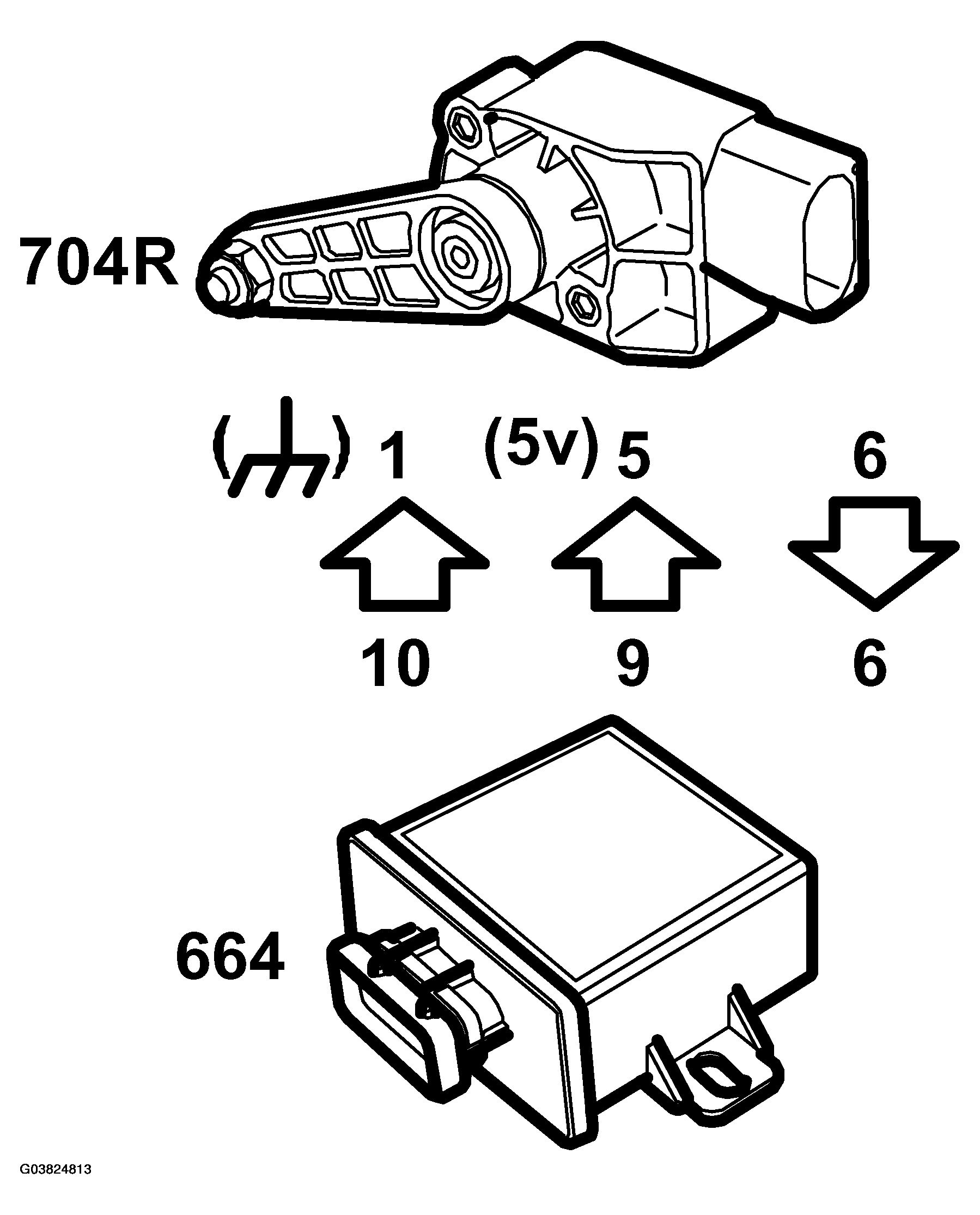

Fig 1: Rear Load Angle Sensor (704R) Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

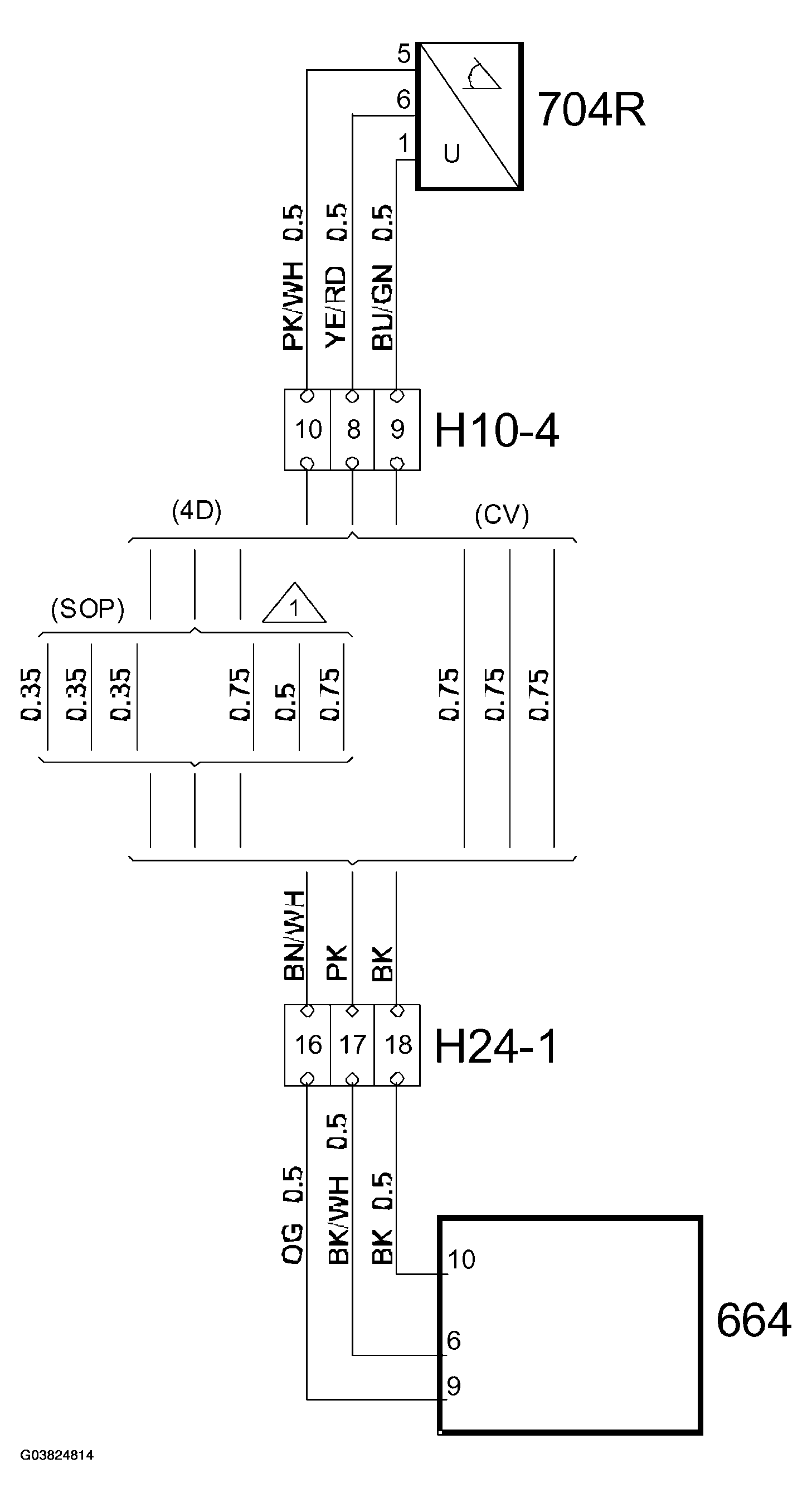

Fig 2: Rear Load Angle Sensor (704R) Circuit

Courtesy of SAAB-SCANIA OF AMERICA, INC.
