Home › Saab › 2005 › 9-3 Linear, 2D Convertible, Standard › Repair and Diagnosis › Electrical › Starter › Component location › Connector H4-3

Connector H4-3

Location:  under the TCM control module

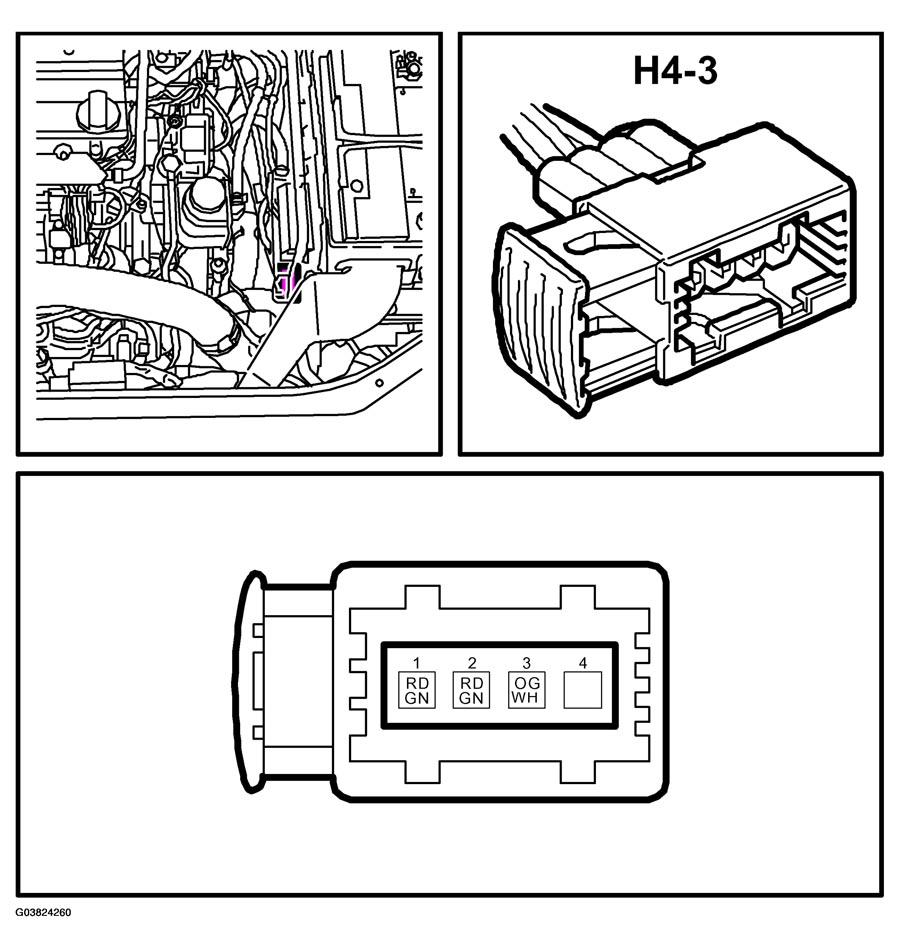

Fig 1: Identifying Connector Pinout (H4-3)
G03824260Courtesy of SAAB-SCANIA OF AMERICA, INC.
