Fuse 6, engine bay fuse box 342: Notes

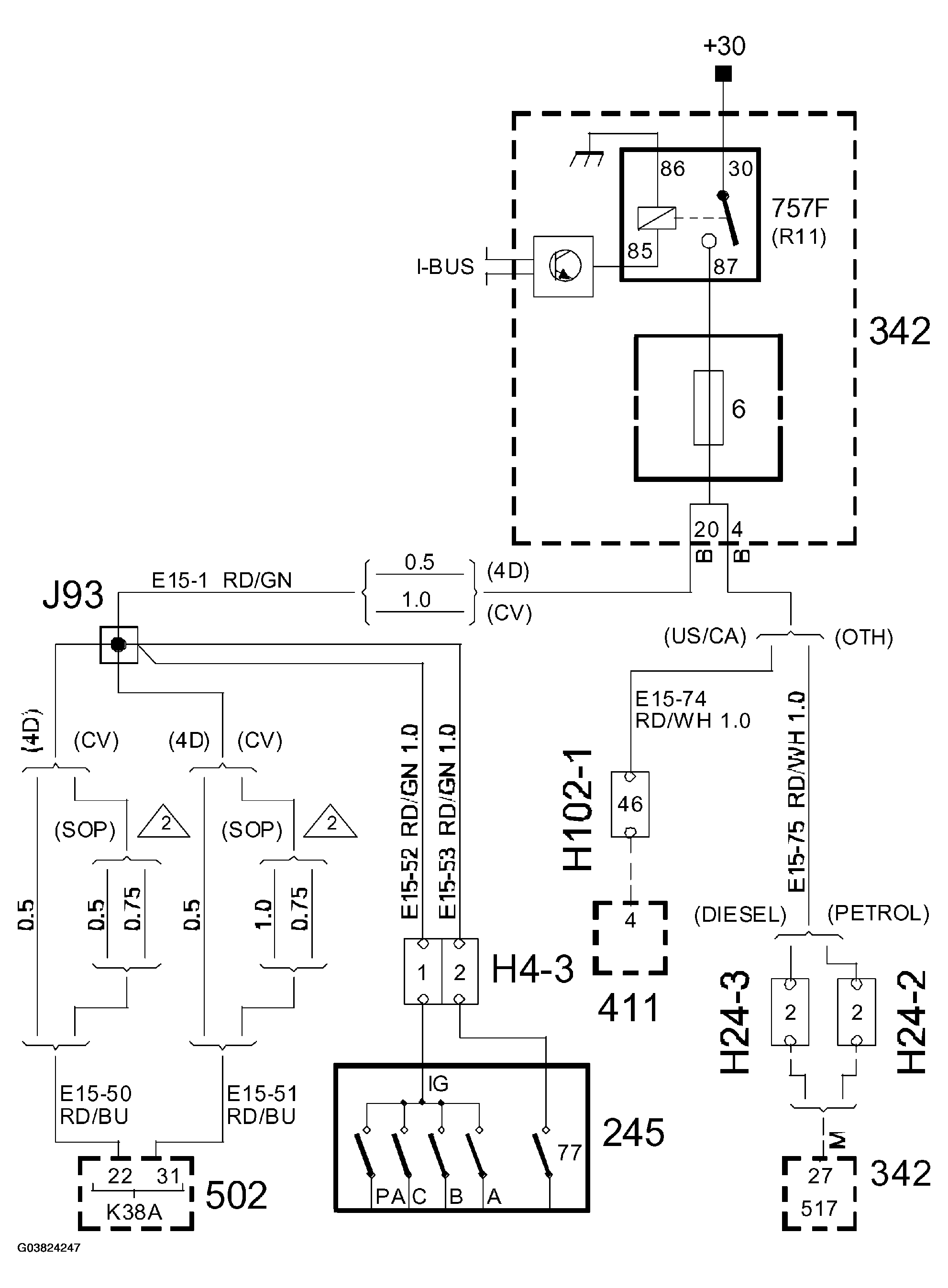

Fig 1: Identifying Engine Bay Fuse Box 342 Connection Diagram
G03824247Courtesy of SAAB-SCANIA OF AMERICA, INC.
