Main components

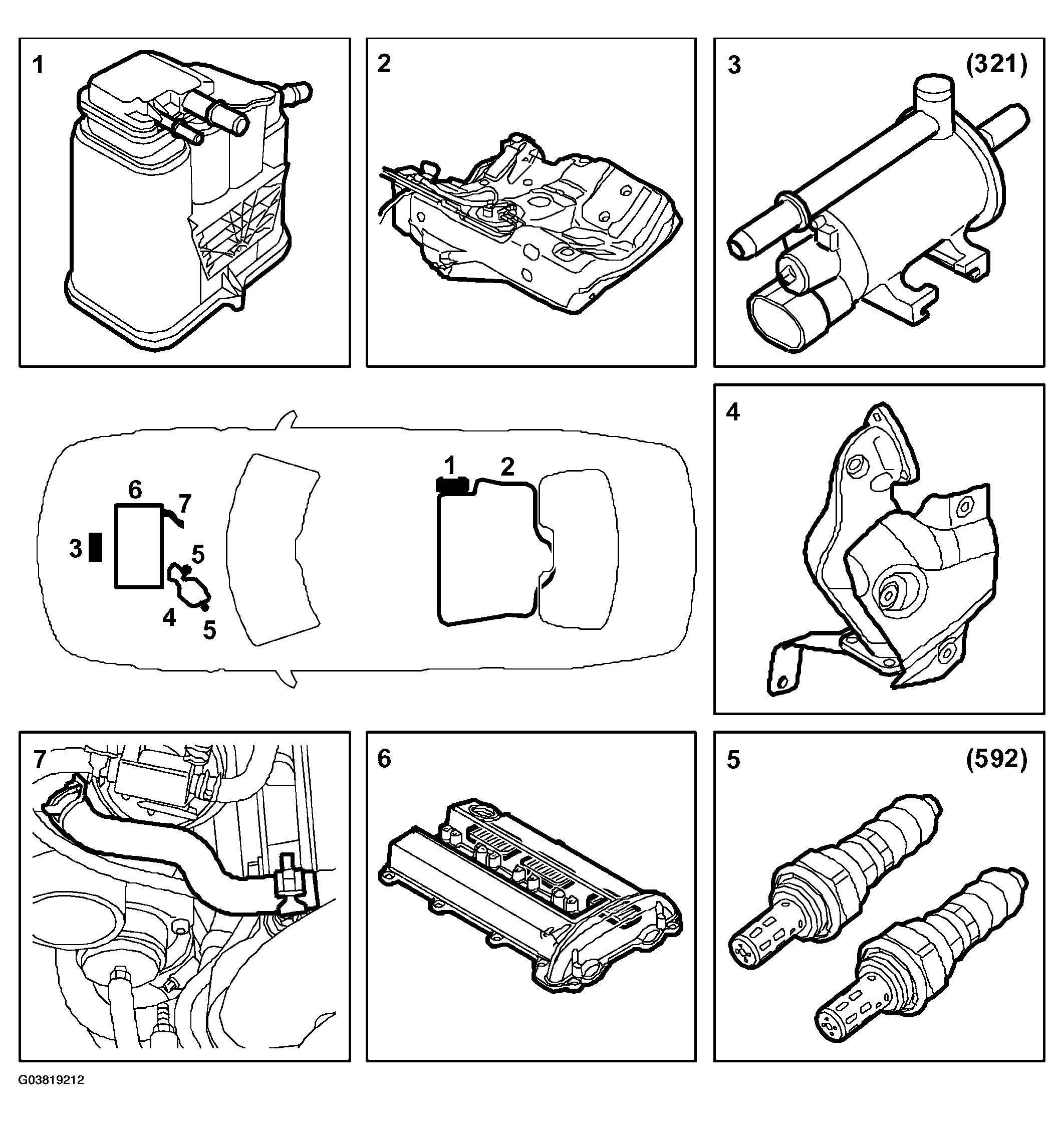

Fig 1: Identifying Components
G03819212Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. EVAP emission canister
  2. Fuel tank
  3. EVAP canister purge valve
  4. Catalytic converter
  5. Oxygen sensor
  6. Internal oil trap
  7. Crankcase ventilation hose
