Home › Saab › 2005 › 9-3 Linear, 2D Convertible, Standard › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Adjustment / Replacement › Power steering fluid pressure sensor (739) › To remove

To remove

  1. Cut off the cable tie securing the sensor connector.

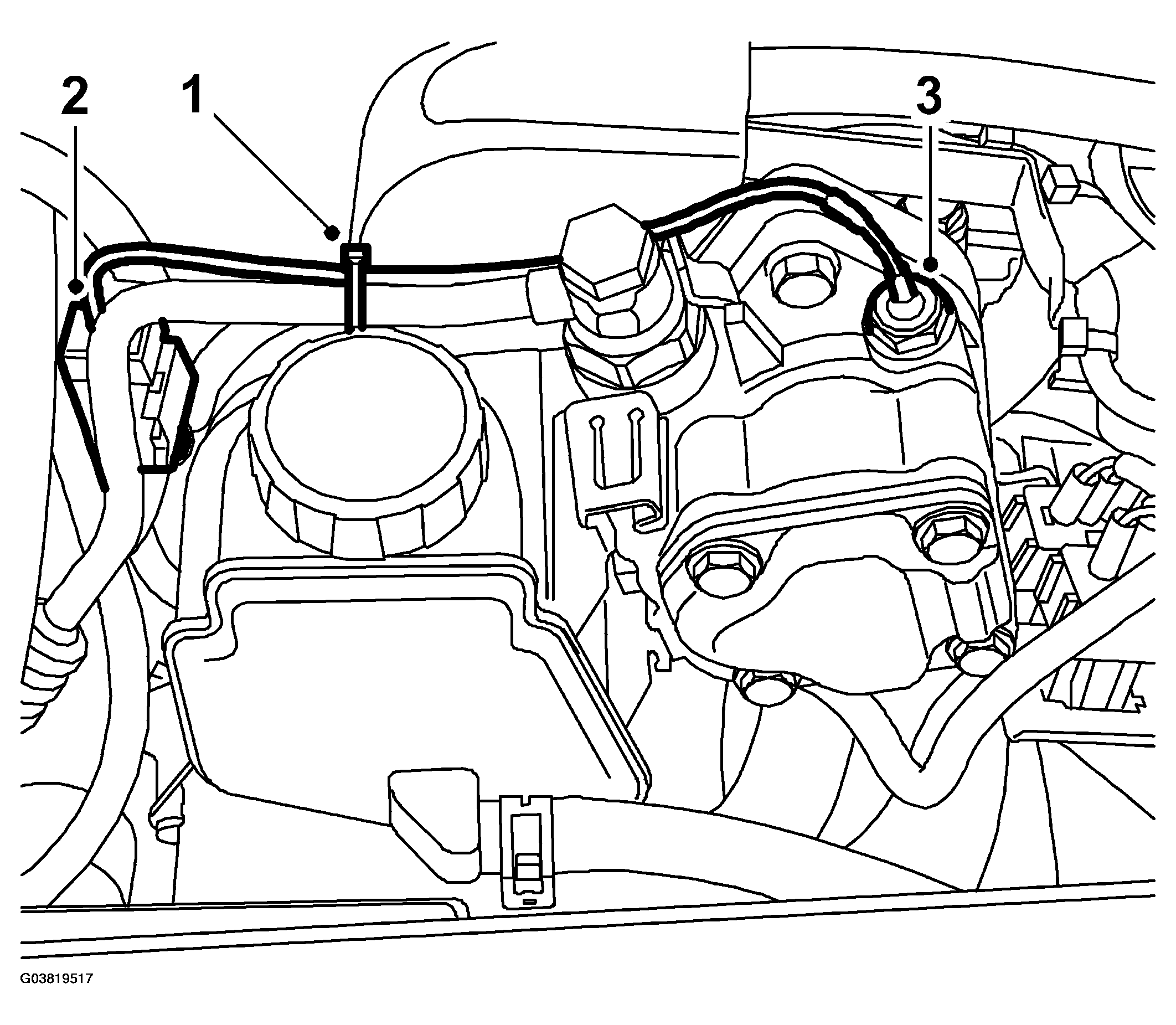

    Fig 1: Illustration For Step - 1, 3
    G03819517Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the sensor connector.
  3. Carefully remove the pressure sensor as it contains loose parts.
