TRIONIC T8 Fuel Control System
›
Component location
›
Control module, Trionic, B207, switch B (589B)
Control module, Trionic, B207, switch B (589B)
Location:
in front on the engine

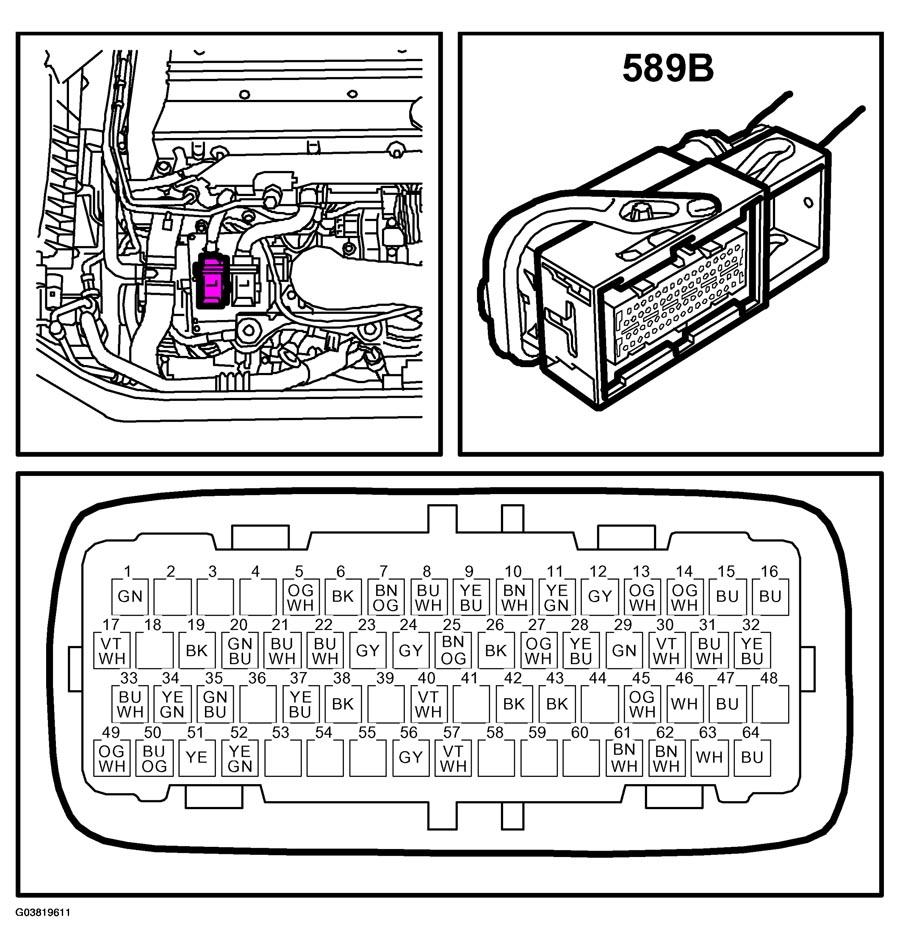

Fig 1: Identifying Control Module Trionic B207 switch A (589B) Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
