Pressure sensor A/C (620)

Location: near the left front corner of the air filter

B207

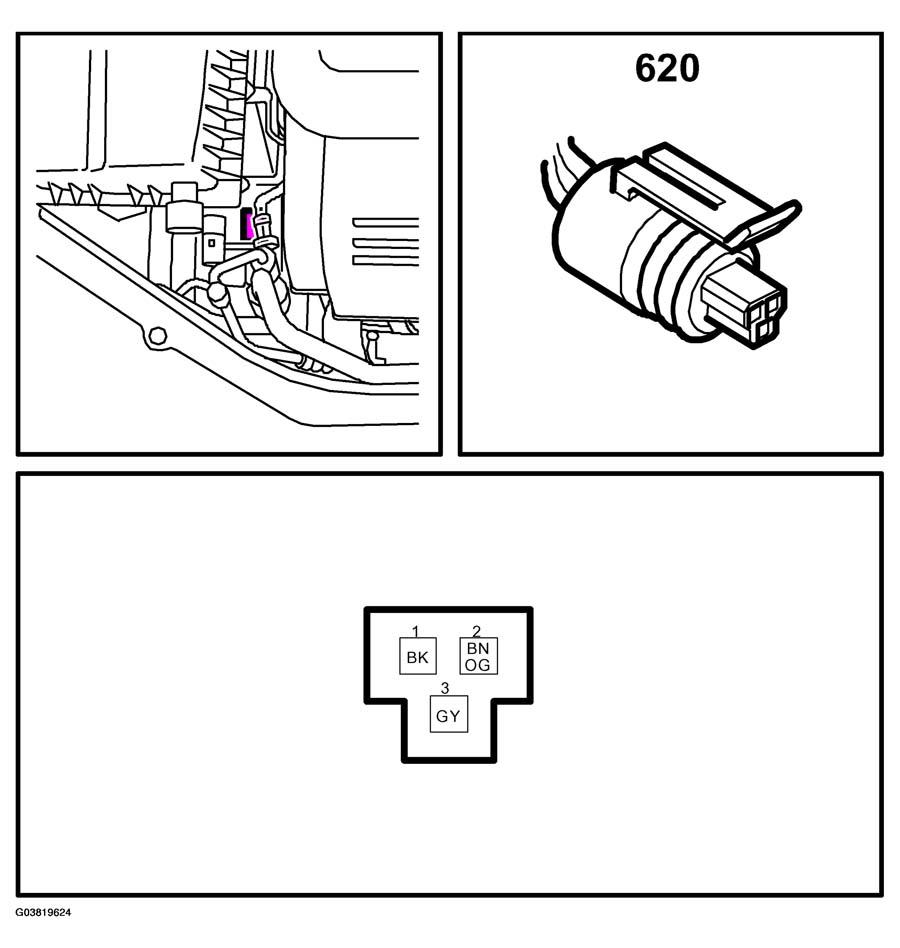

Fig 1: Identifying Pressure Sensor A/C - B207 Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Z18XE

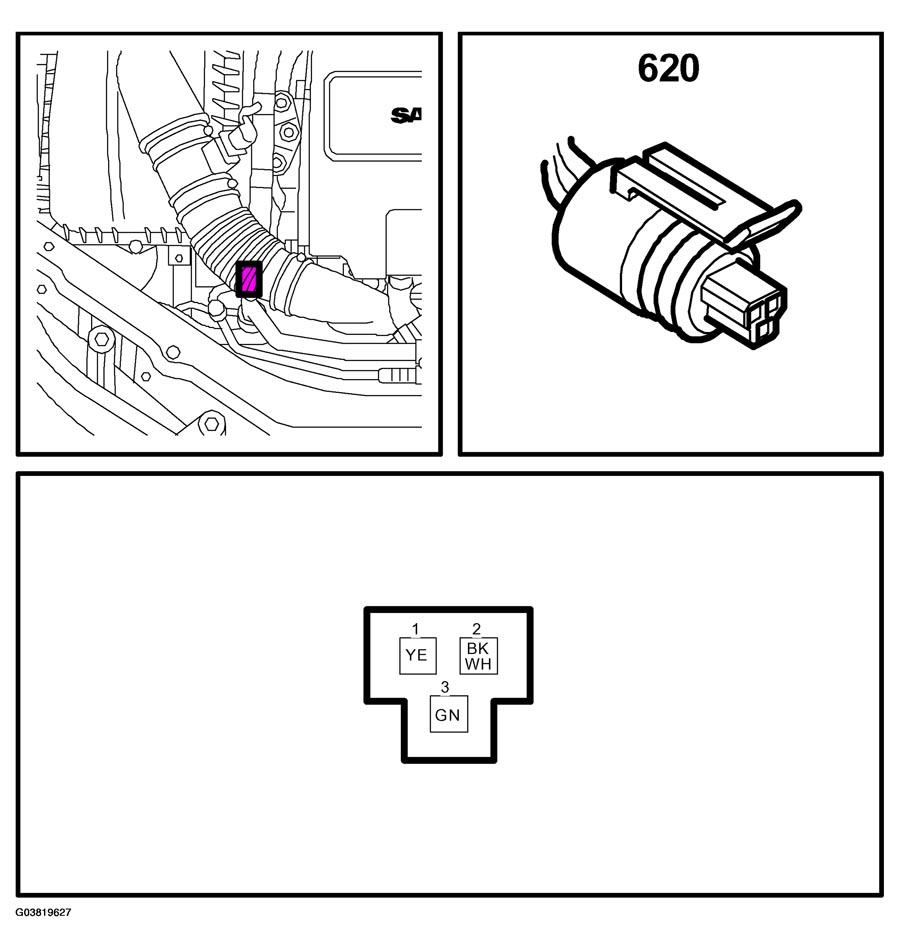

Fig 2: Identifying Pressure Sensor A/C - Z18XE Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Z19DT

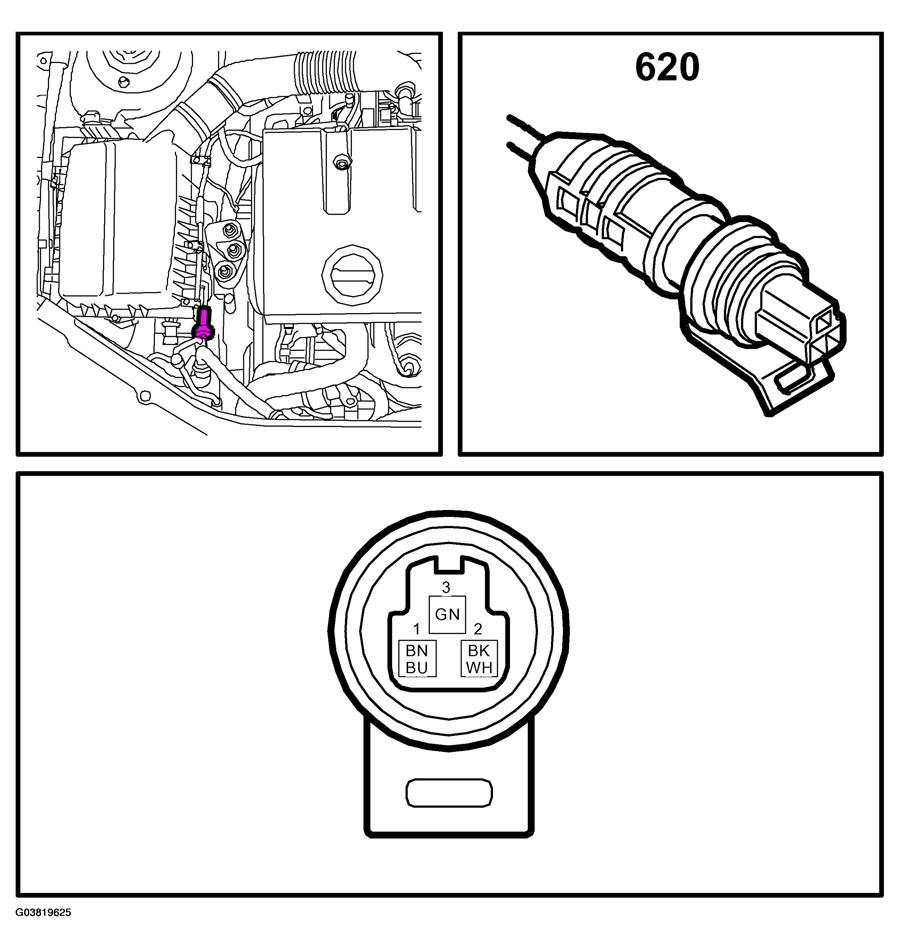

Fig 3: Identifying Pressure Sensor A/C - Z19DT Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Z19DTH

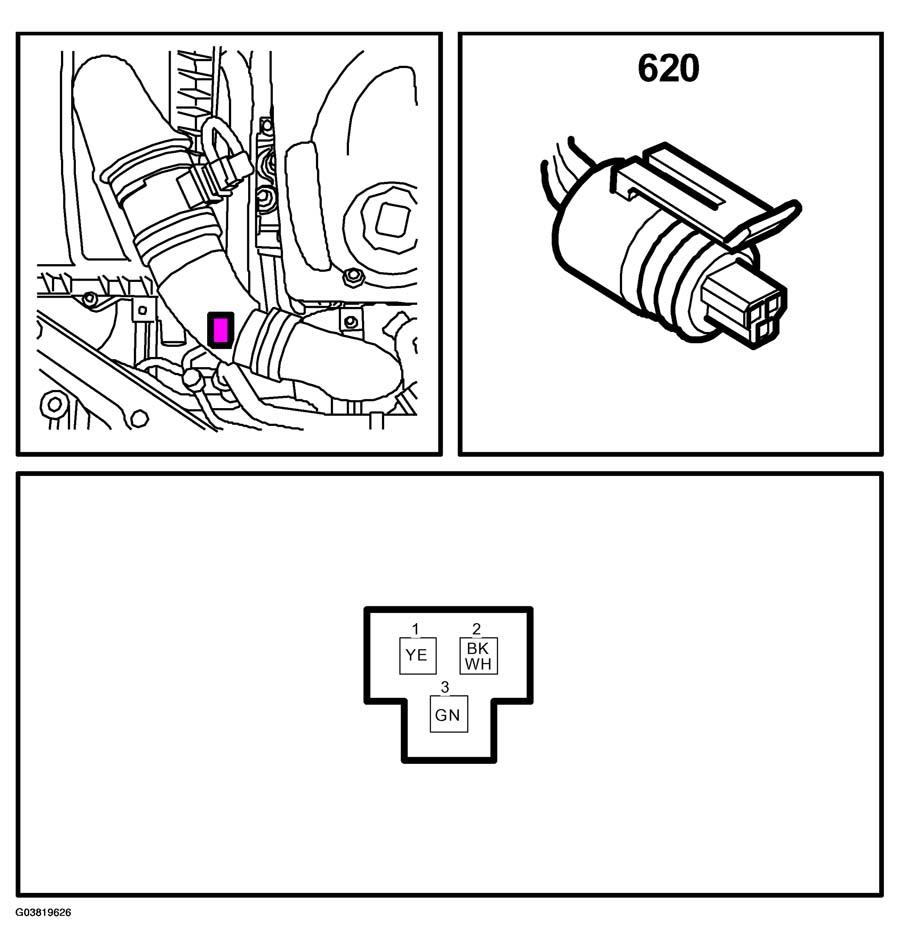

Fig 4: Identifying Pressure Sensor A/C - Z19DTH Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.
