Fuse 6, engine bay fuse box 342: Notes

WARNING: This page is about a different variant/trim than selected.

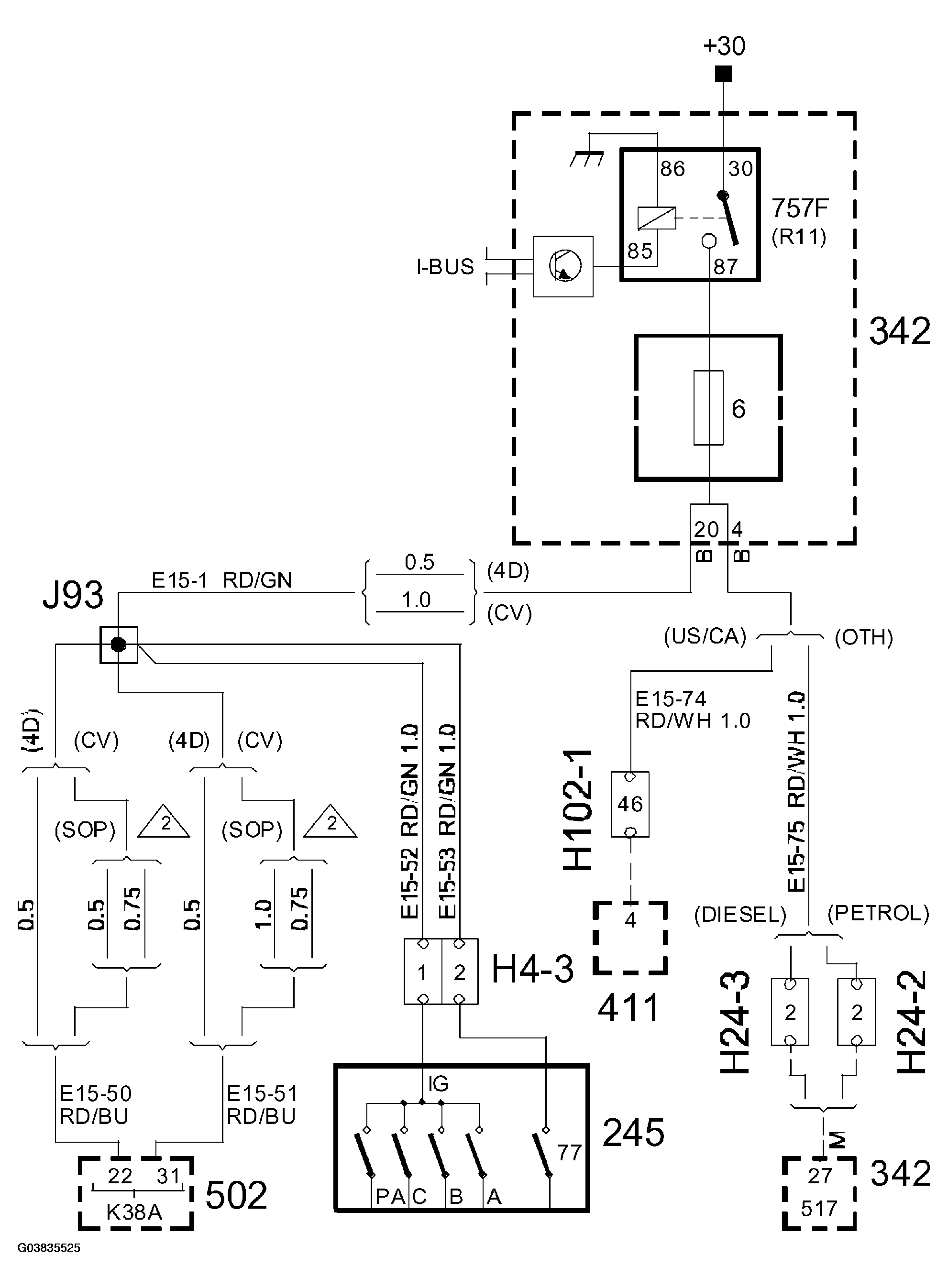

Fig 1: Engine Bay Fuse Box Wiring Diagram
G03835525Courtesy of SAAB-SCANIA OF AMERICA, INC.
