To remove

  1. Remove the gearbox, see 5-SPEED ,5-SPEED, F17 , or 6-SPEED .

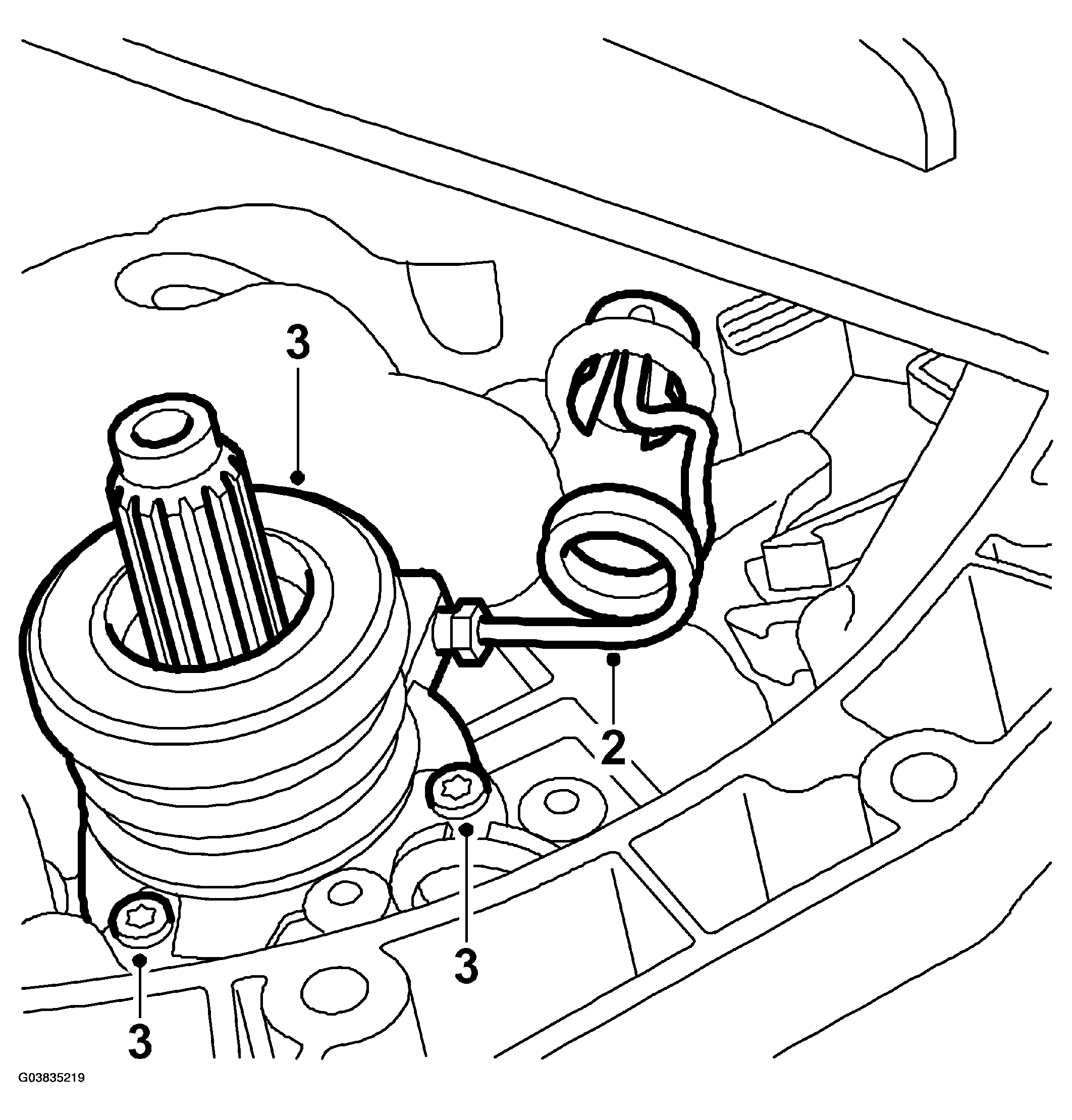

    Fig 1: Illustration For Step 2-3
    G03835219Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the three retaining bolts for the slave cylinder and pull it out.
