Grounding point G2: Notes

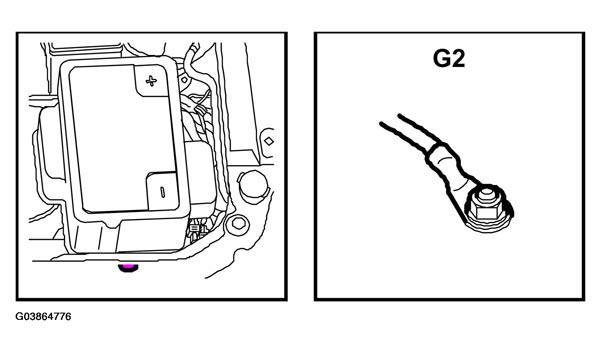

Fig 1: Identifying Grounding Point G2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

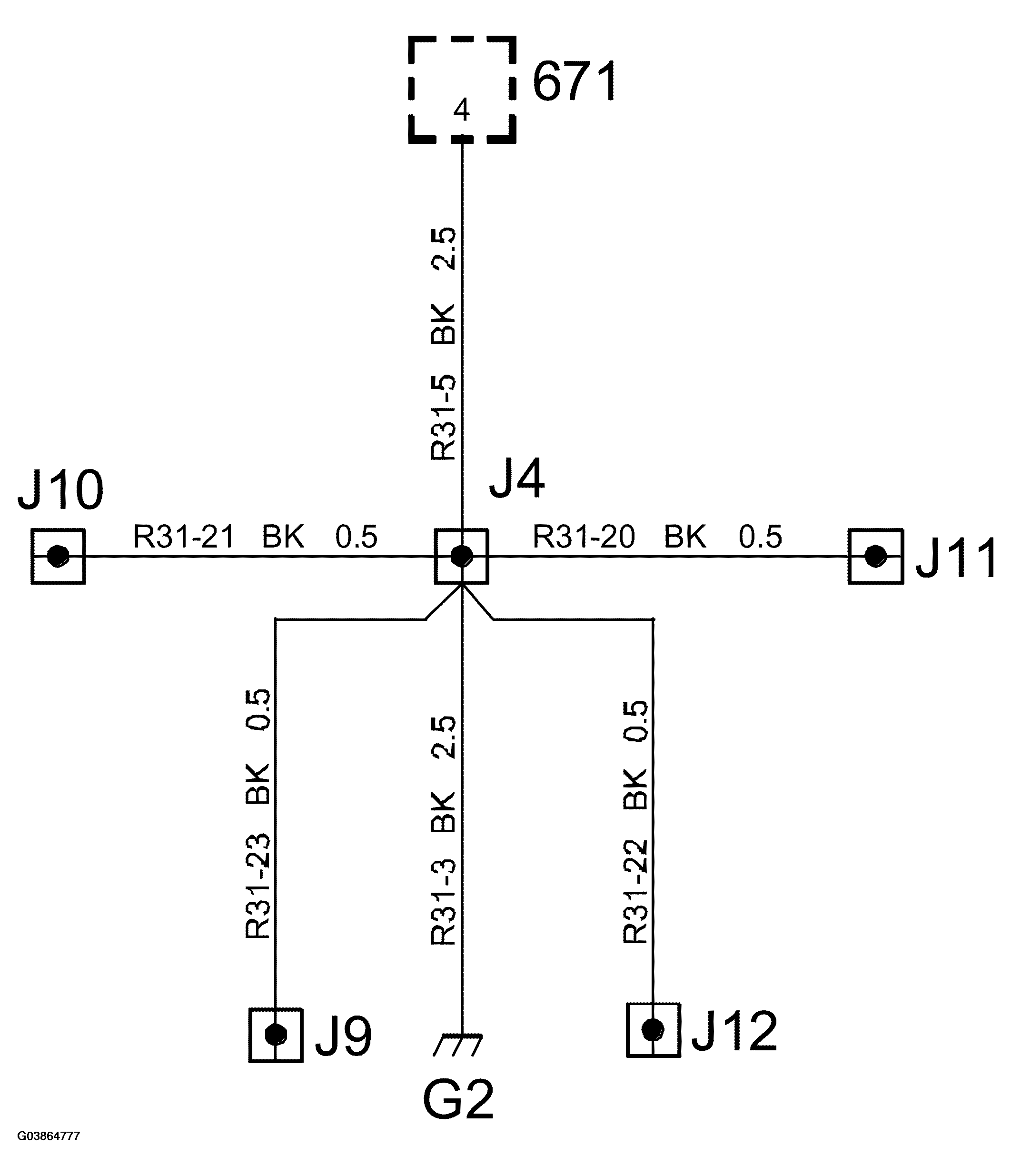

Fig 2: Grounding Point G2 Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Location:
Left-hand structural member behind headlamp (battery ground).
