Changing Regulator With Generator Brushes, V6 Diesel: Refitting

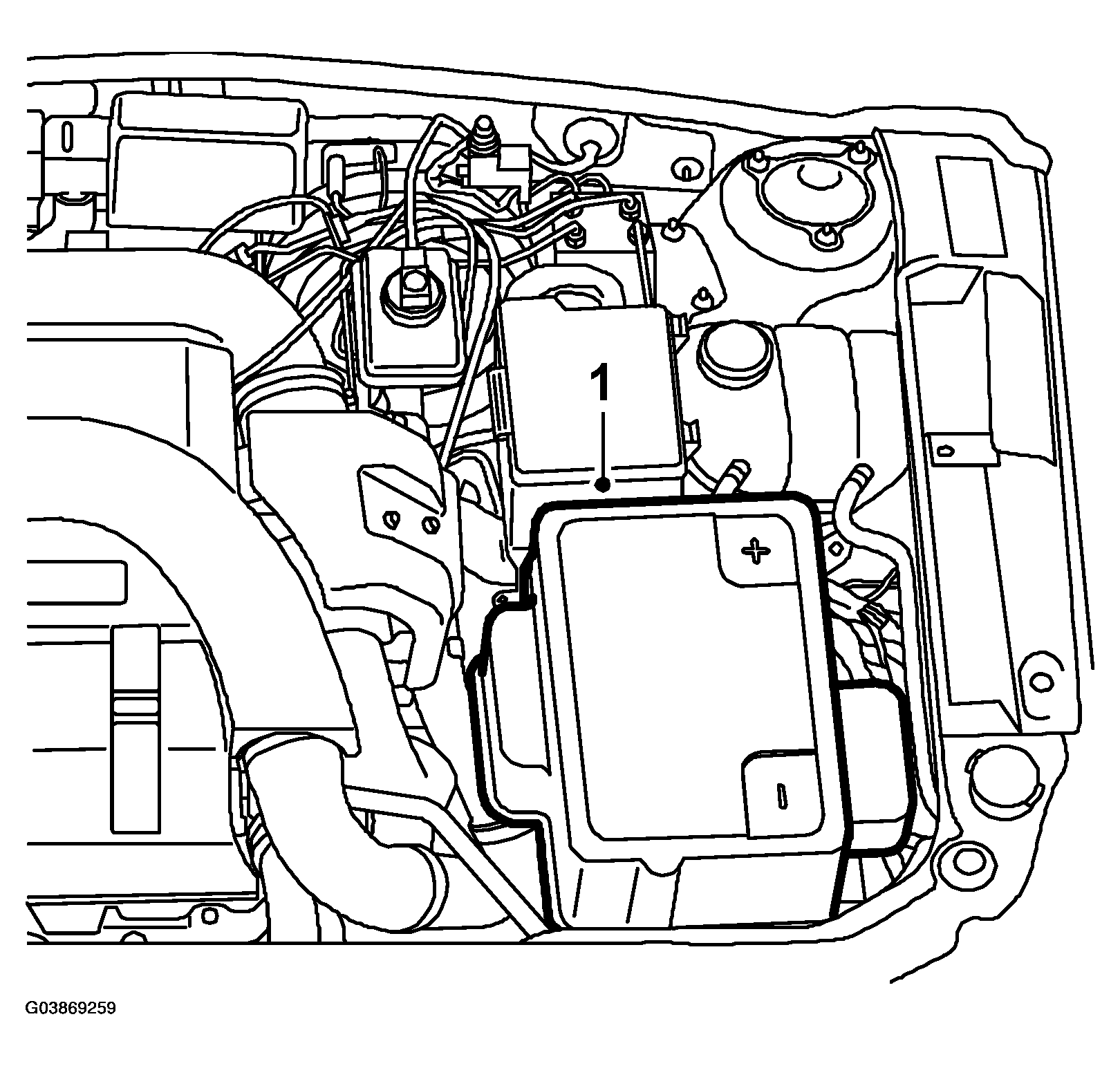

Fig 1: Illustration For Step 3-4

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Carefully straighten the spring tab so that it is in contact with the regulator. Clean and apply a thin layer of Vaseline to prevent oxidation.
2. Clean the ground connection on the regulator and apply Vaseline.
3. Refit the regulator.
4. Refit the protective housing on to the generator.
