Grounding point G41S: Notes

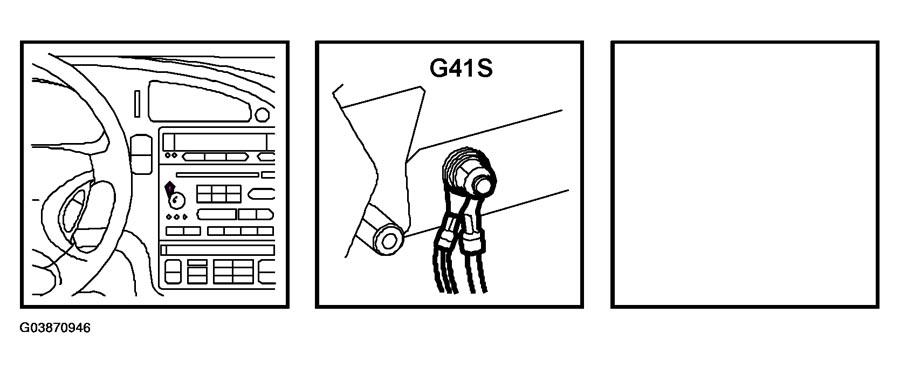

Fig 1: Identifying Grounding Point G41S

Courtesy of SAAB-SCANIA OF AMERICA, INC.

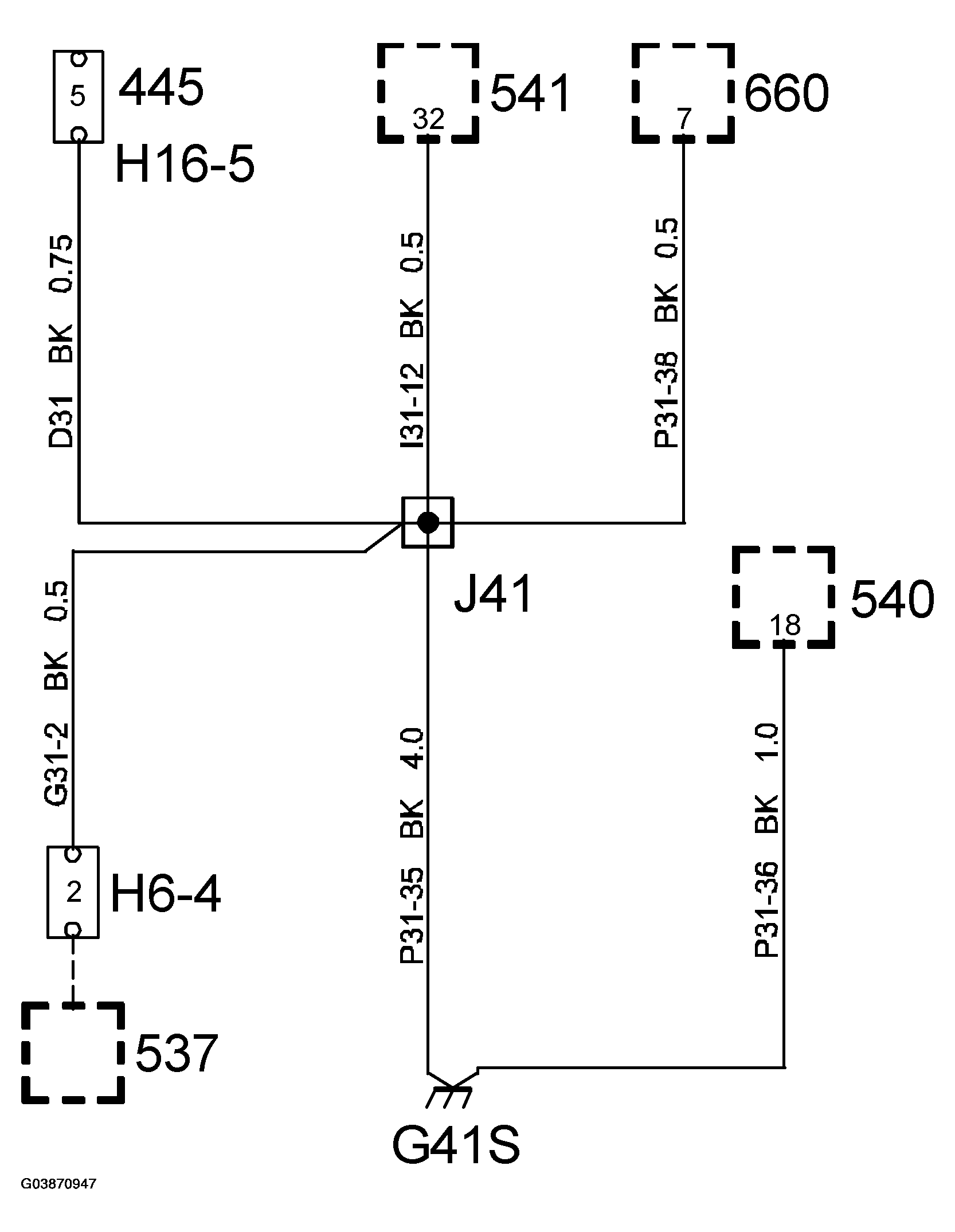

Fig 2: Grounding Point G41S Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left-hand grounding screw in center of knee protection bar (in cabin)
