Home › Saab › 2005 › 9-5 Linear, Automatic › Repair and Diagnosis › Electrical › Horns › Lighting And Signaling Systems › Component Location › Control Module, PMM (611)

Control Module, PMM (611)

LHD

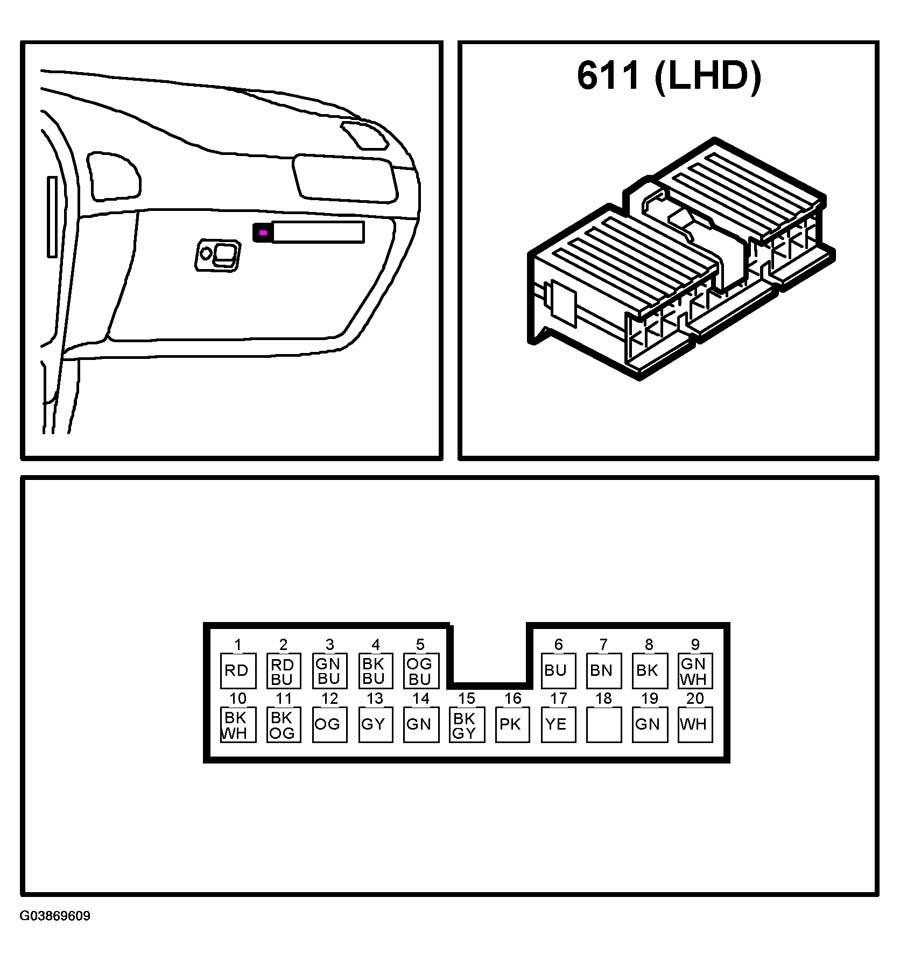

Fig 1: Identifying PMM Control Module Connector And Location - LHD
G03869609Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

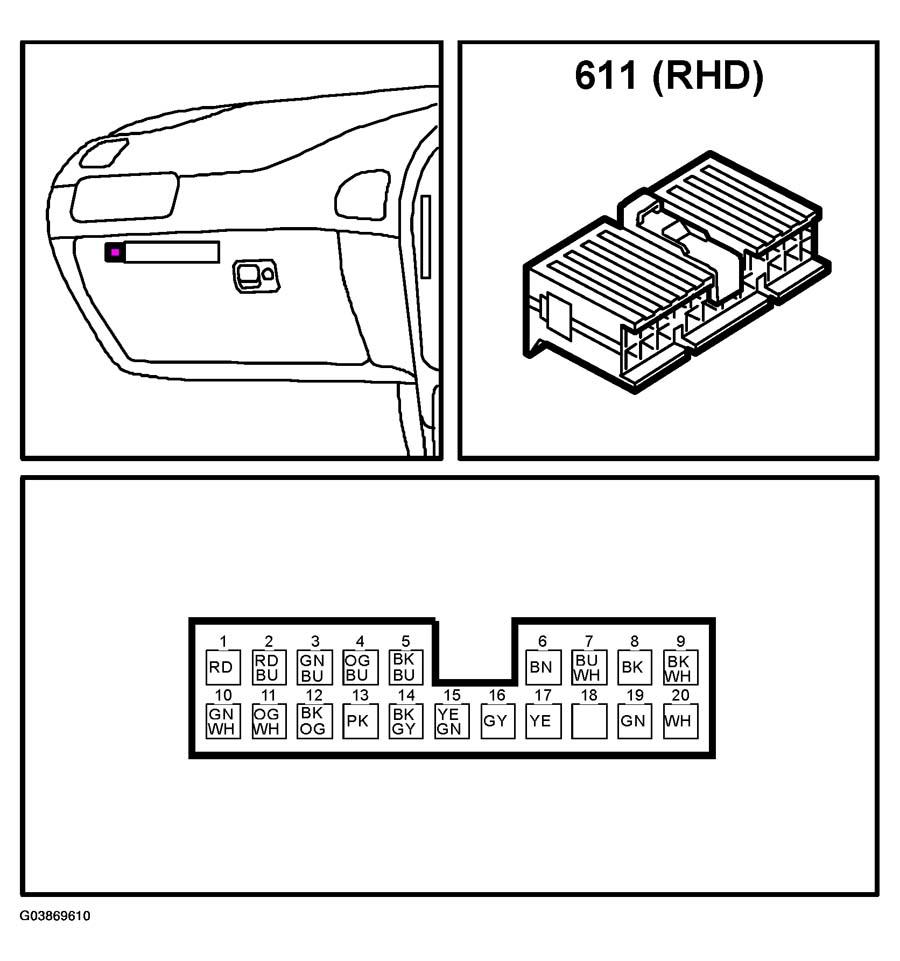

Fig 2: Identifying PMM Control Module Connector And Location - RHD
G03869610Courtesy of SAAB-SCANIA OF AMERICA, INC.
