Control Module, RH Headlamp (682FR)
Control Module, RH Headlamp (682FR)

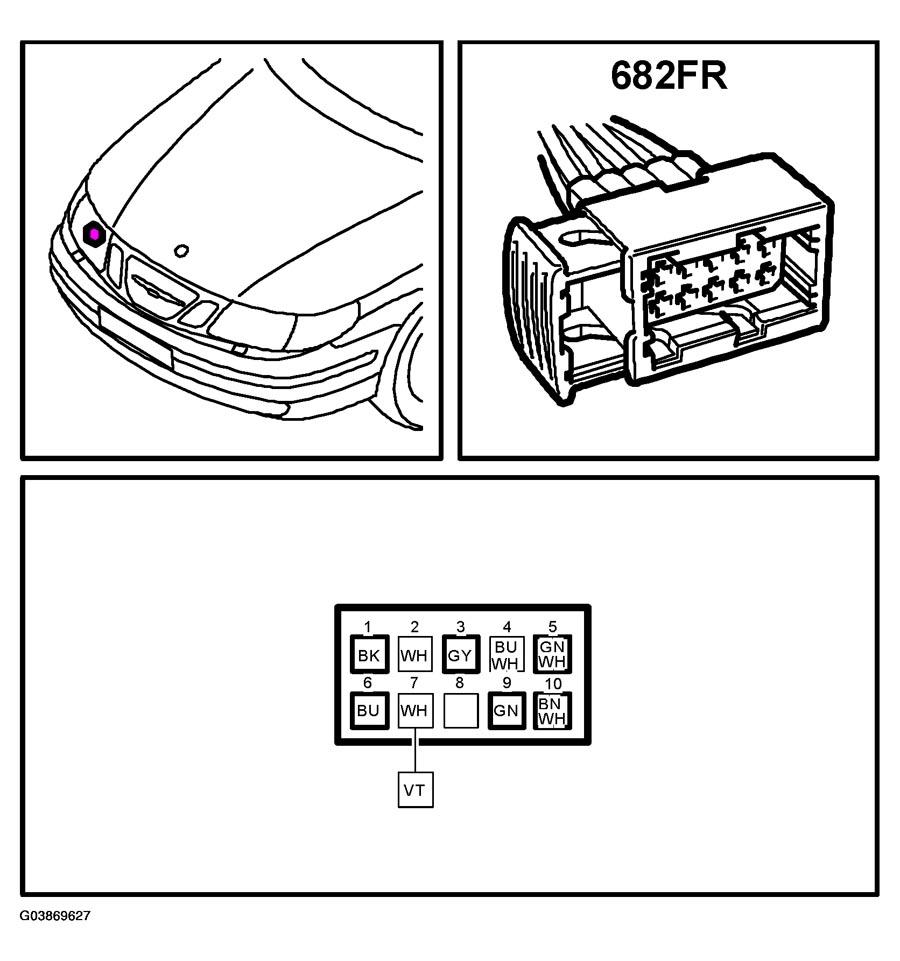

Fig 1: Identifying Control Module Connector And Location - RH Headlamp (682FR)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
