Control Module, Twice (632)

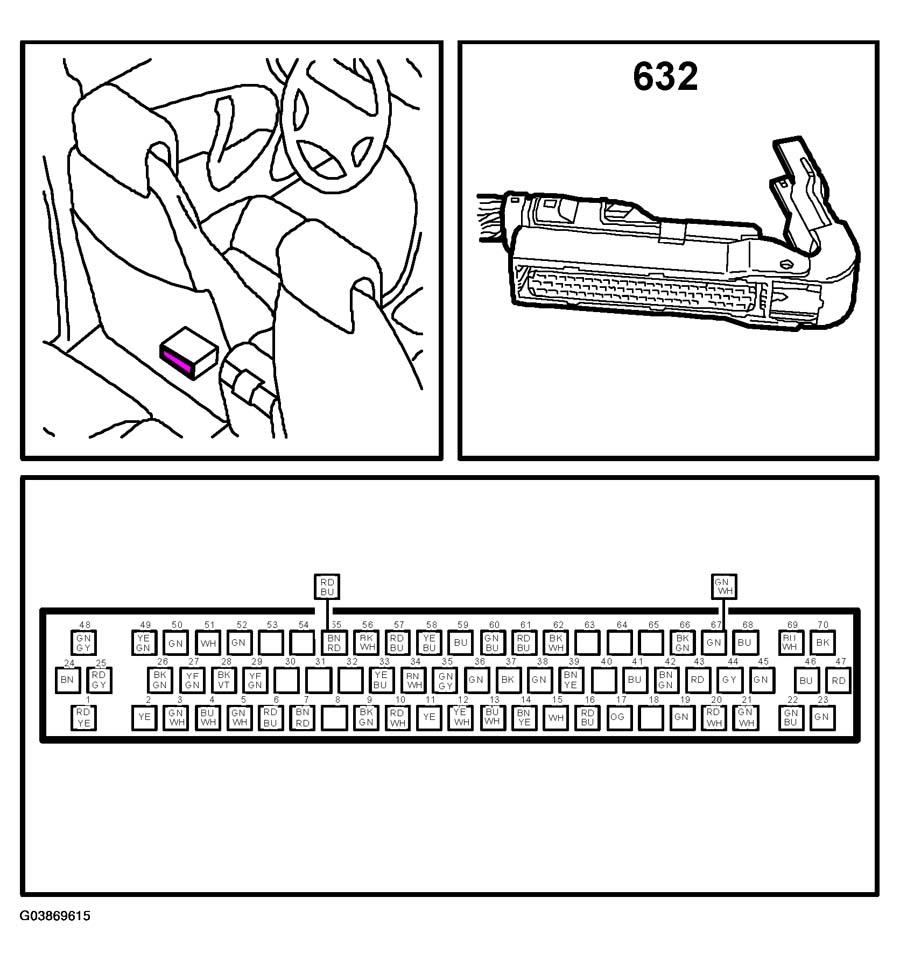

Fig 1: Identifying Control Module Connector And Location - Twice (632)
G03869615Courtesy of SAAB-SCANIA OF AMERICA, INC.
