Grounding Point G30: Notes

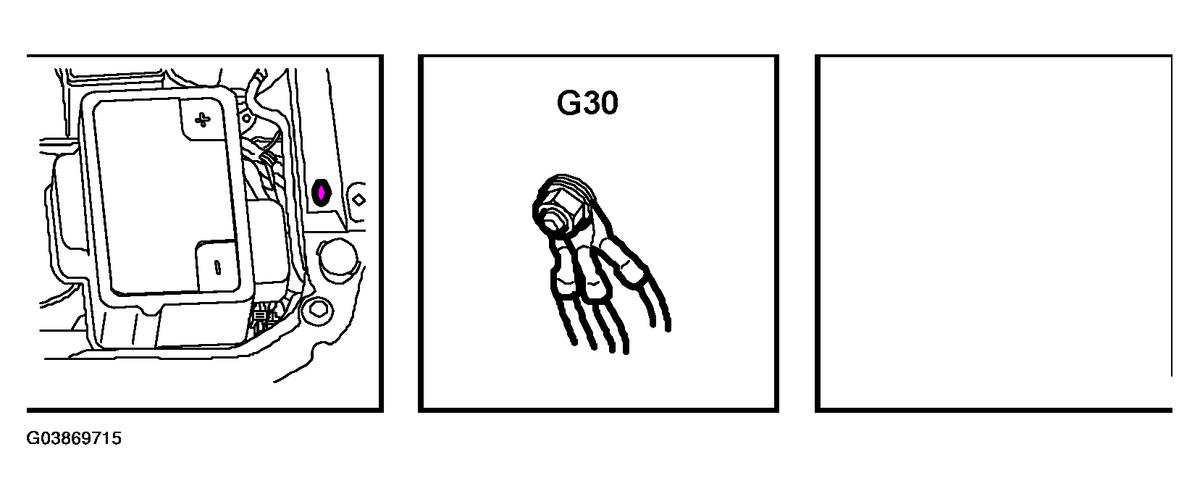

Fig 1: Identifying Grounding Point G30 And Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

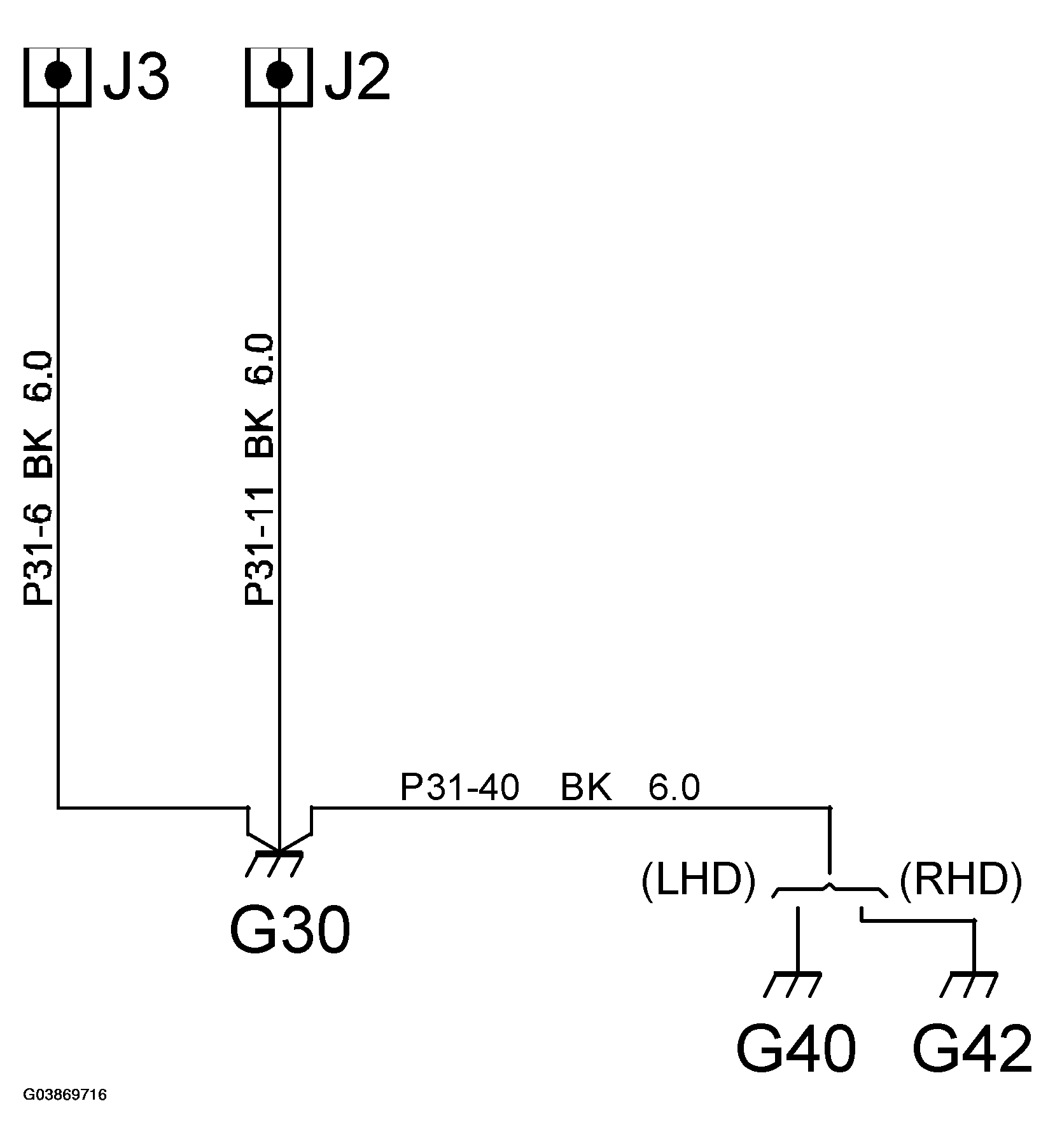

Fig 2: Identifying Crimp J2 Wiring Diagram - Front Harness

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the engine bay on the side panel in front of the left-hand wheel housing
