Grounding Point G42: Notes

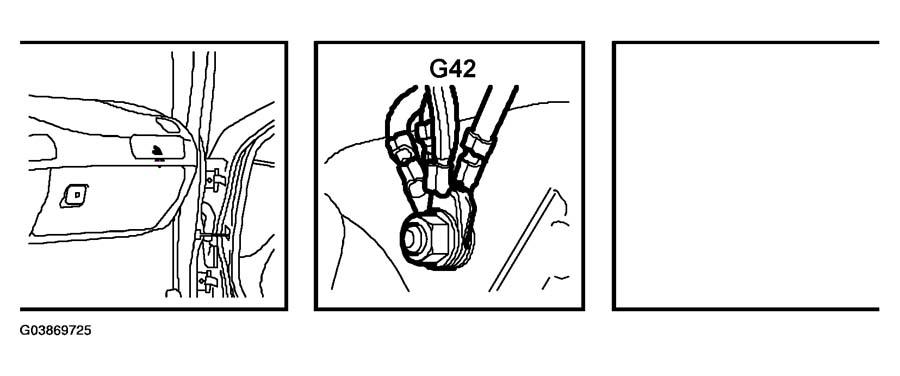

Fig 1: Identifying Grounding Point G42 And Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

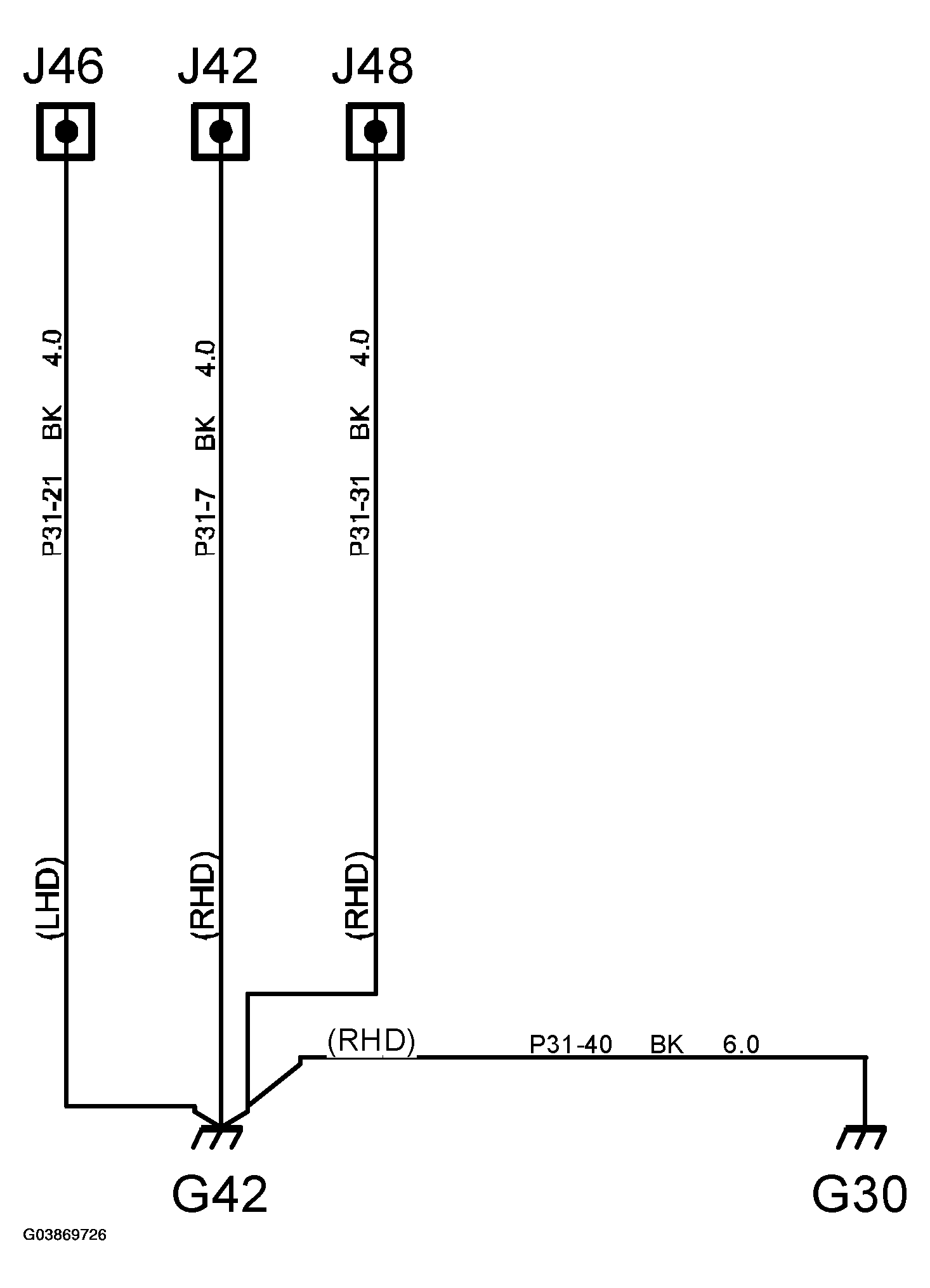

Fig 2: Identifying Crimp J46 Wiring Diagram - Instrument Harness

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On right-hand side of knee member.
