Grounding Point, G41P: Notes

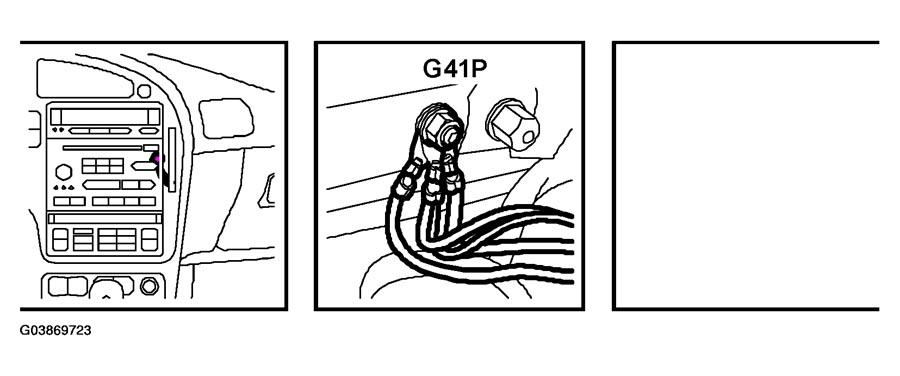

Fig 1: Identifying Grounding Point G41P And Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

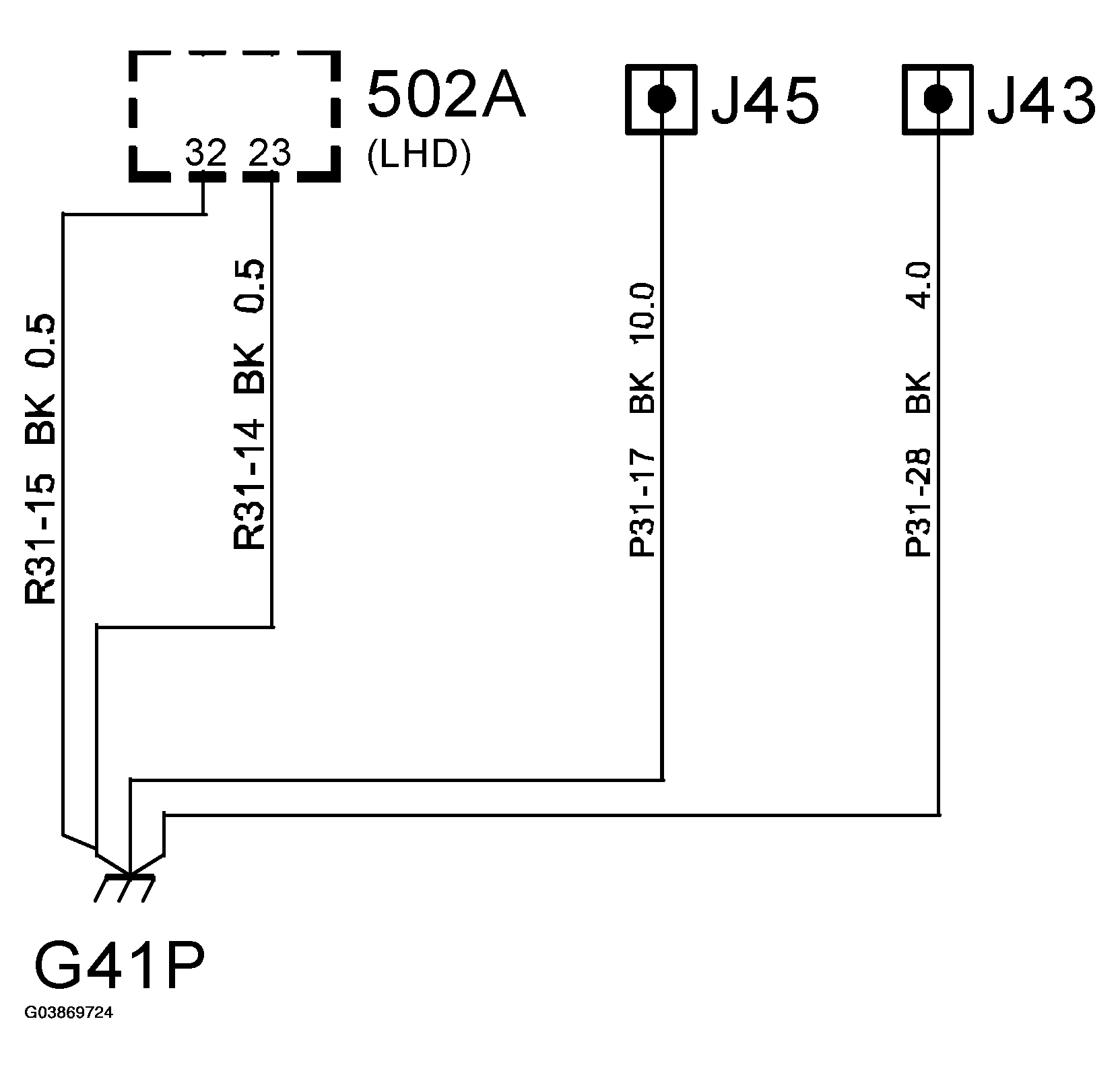

Fig 2: Identifying Crimp J43 Wiring Diagram - Instrument Wiring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left grounding screw on middle of knee member (in cabin)
