Light-And-Key Monitor: Notes

DICE monitors the main lighting and the ignition key. If the main lighting or the key is forgotten, SID delivers a warning signal. This feature is optional (OFF/ON).

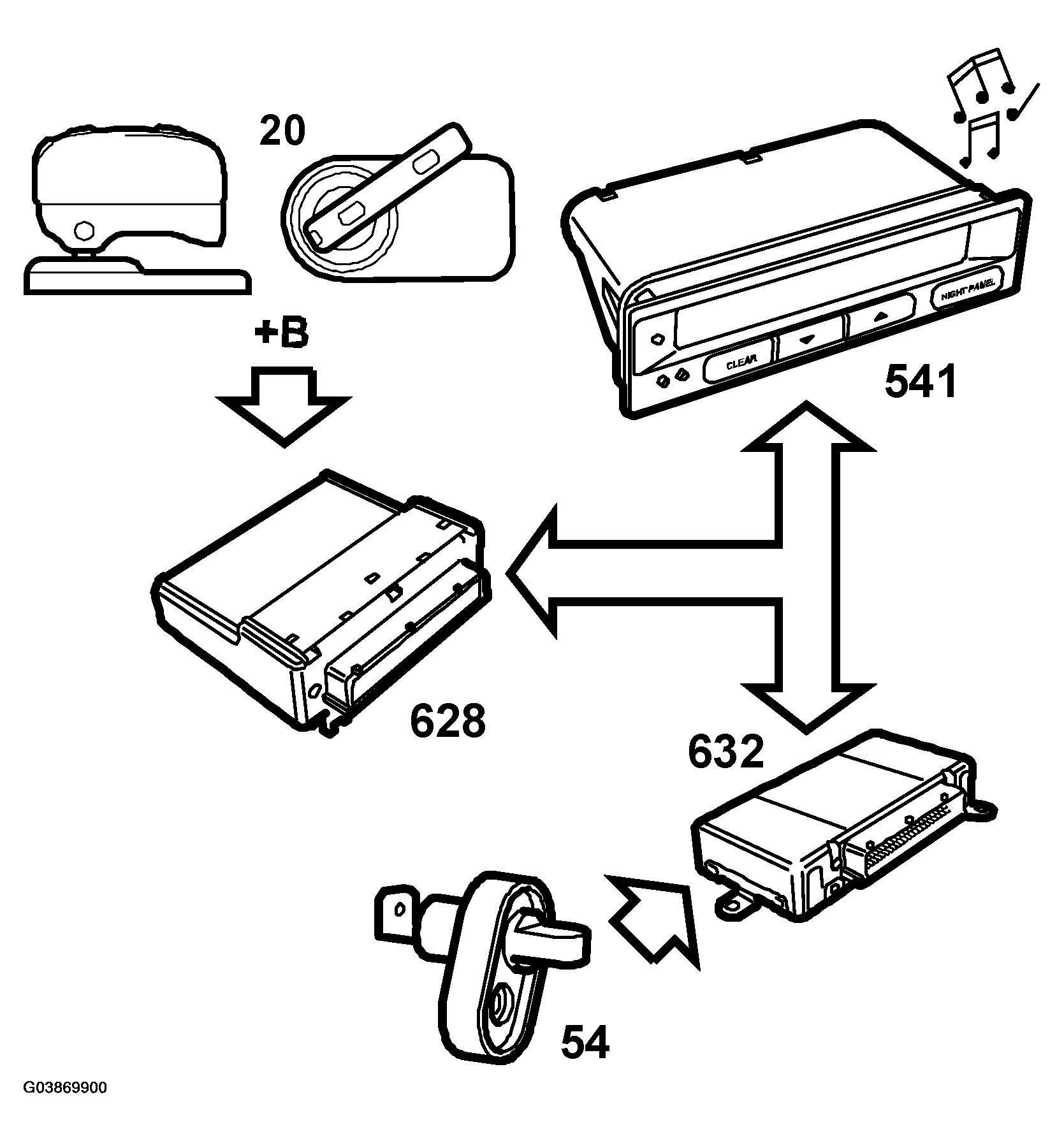

Fig 1: Identifying Light-And-Key Monitor Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
