Main Components, Interior Lighting 5D

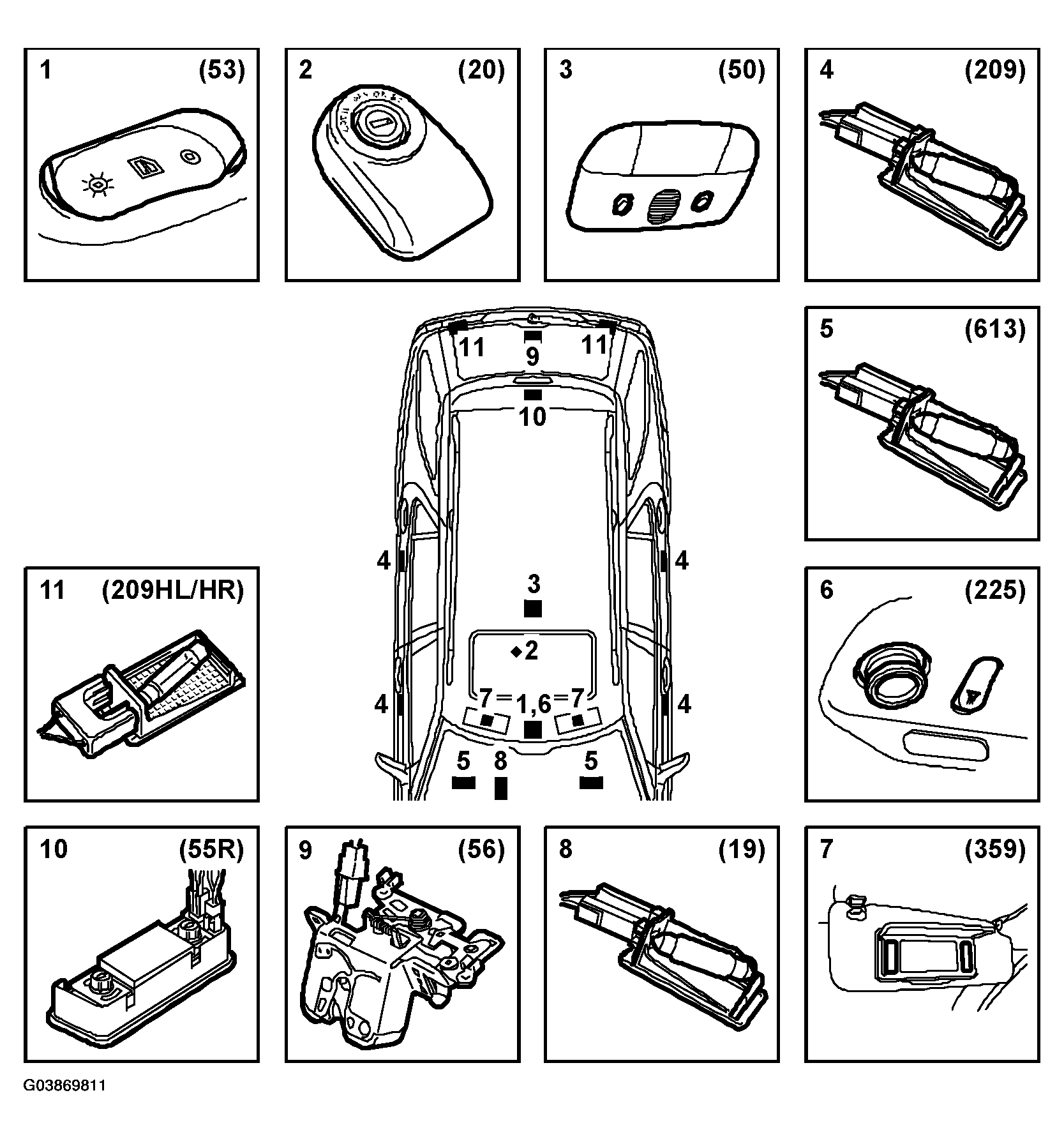

Fig 1: Identifying Main Components And Location - Interior Lighting 5D

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Switch for interior lighting (53)
2. Ignition switch (20)
3. Centre roof lamp (50)
4. Courtesy lights (209)
5. Floor lighting, front (613)
6. Reading lamp (225)
7. Vanity mirror lighting (359)
8. Glove box light (19)
9. Luggage compartment lighting switch (56)
10. Luggage compartment lighting (55)
