System Overview, External Lighting

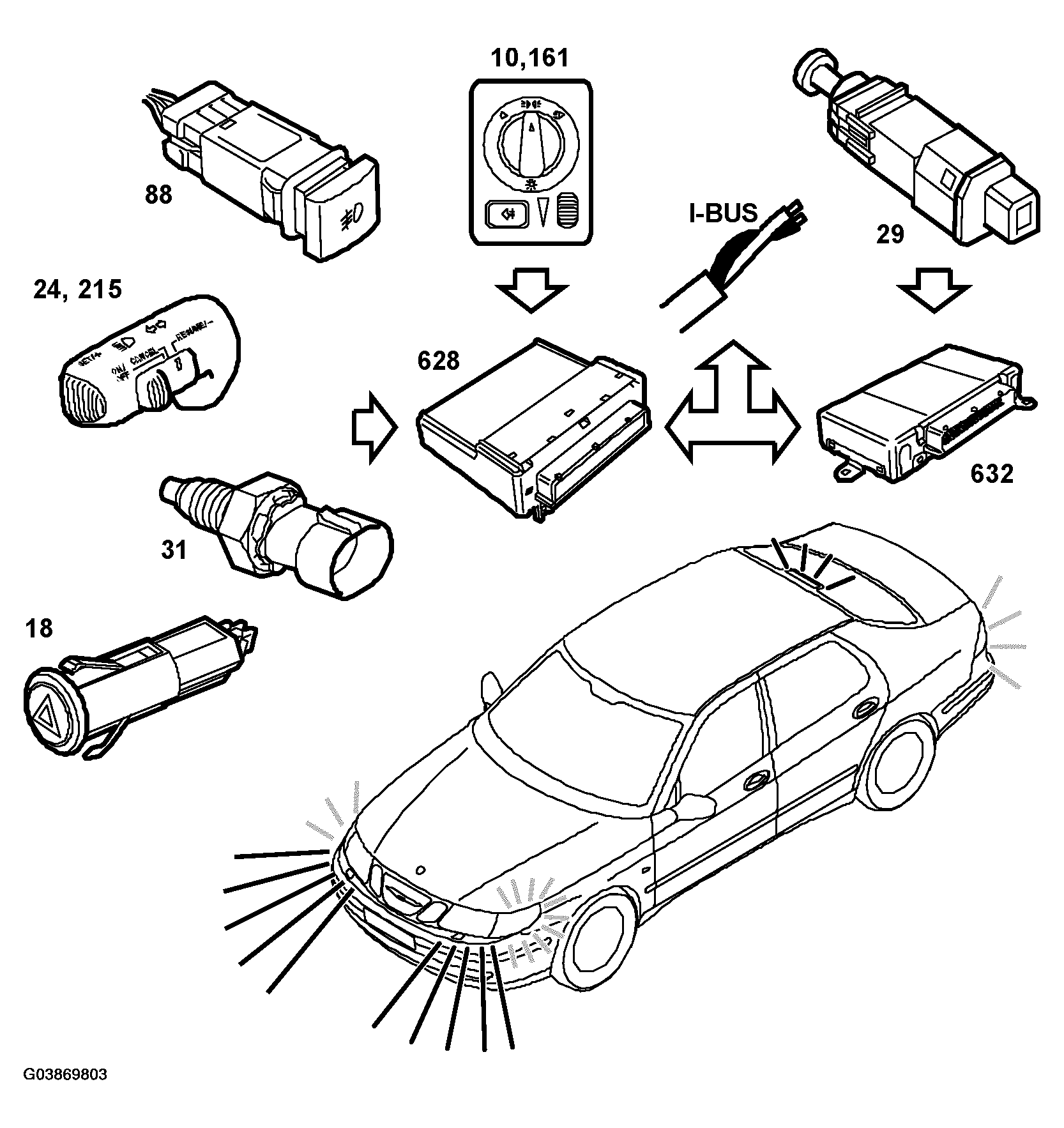

Fig 1: Identifying External Lighting System Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Switch, front fog lights (88)
• Light switch (10)
• Switch, rear fog lights (161)
• Dipswitch (24, 215)
• Reversing-light switch (31)
• Control module, DICE (628)
• Control module, TWICE (632)
• Brake light switch (29)
• Switch, hazard flashers (18)
