Starter Motor For 4-CYL Diesel Engine

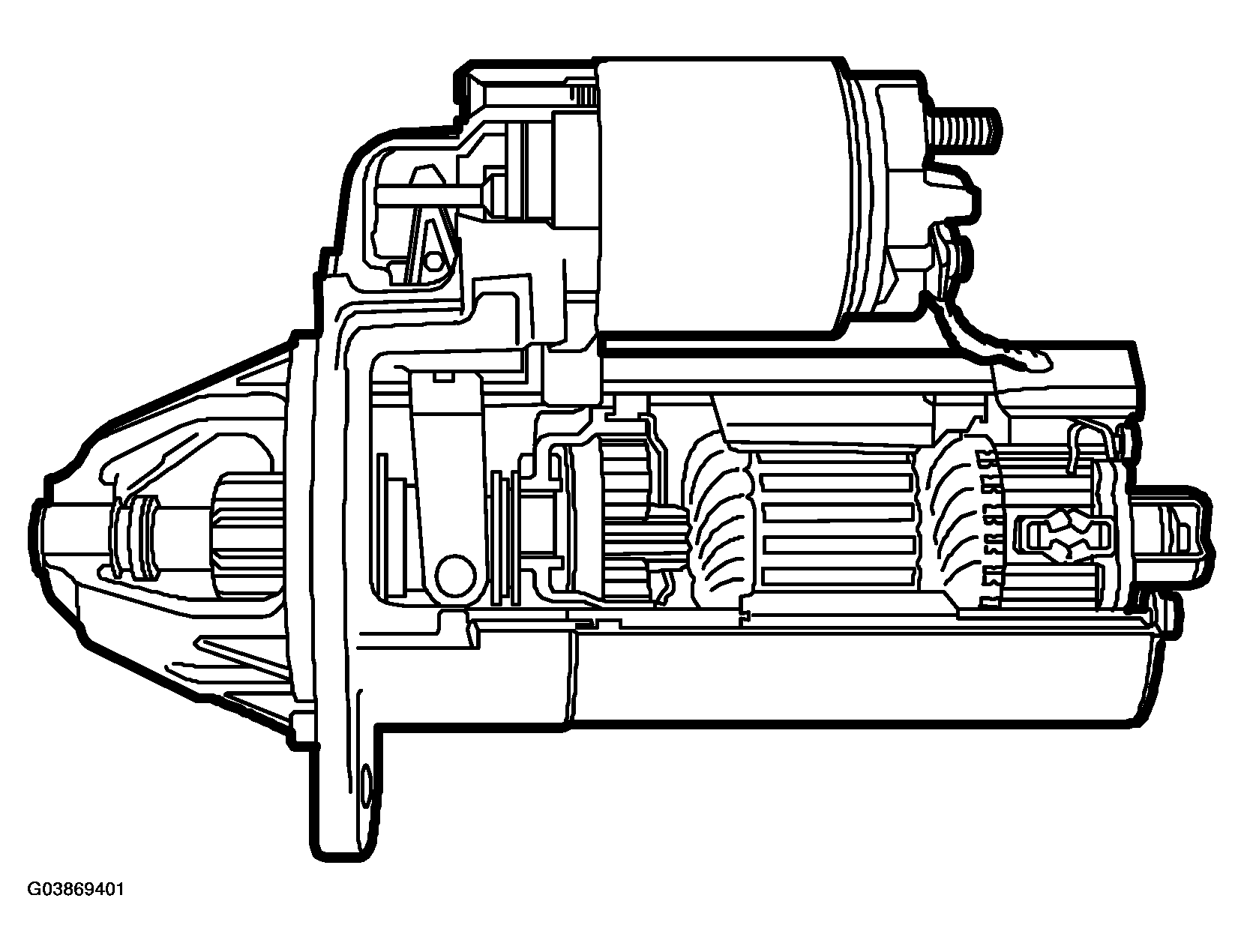

Fig 1: Identifying Starter Motor - 4-Cyl Diesel Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

STARTER MOTOR SPECIFICATIONS - 4-CYL DIESEL ENGINE

Type designation		Bosch DW 12V 0 001 109 015
Power	kW	2,0
No. of teeth on starter motor pinion		10
Number of teeth on ring gear		135
Ratio engine/starter motor		13,5:1

Test values

STARTER MOTOR TEST VALUES - 4-CYL DIESEL ENGINE

No load, 11.4 V	RPM A	3280 110
Under load, 9 V	RPM A	1800 575
Under load, 7.5 V	RPM A	720 860
Lowest engaging voltage for solenoid switch	V	7
