Control values, pressure

CONTROL VALUES REFERENCE

		B205	B235
Compression ratios		8.8:1	9.3:1
Compression, maximum variation between cylinders	bar	2.0	2.0
Nominal compression	bar	12	14

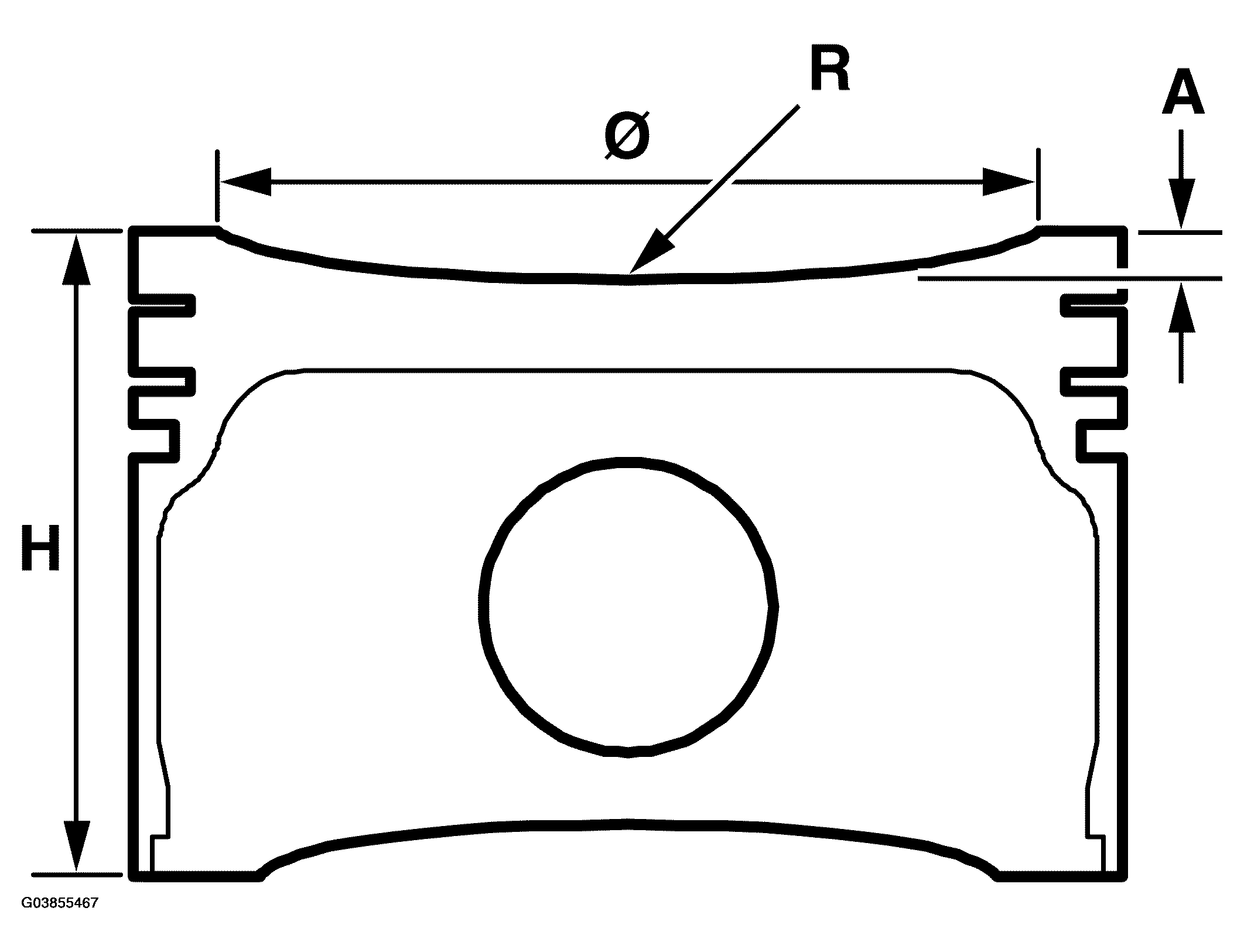

Fig 1: Measuring Piston Diameter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

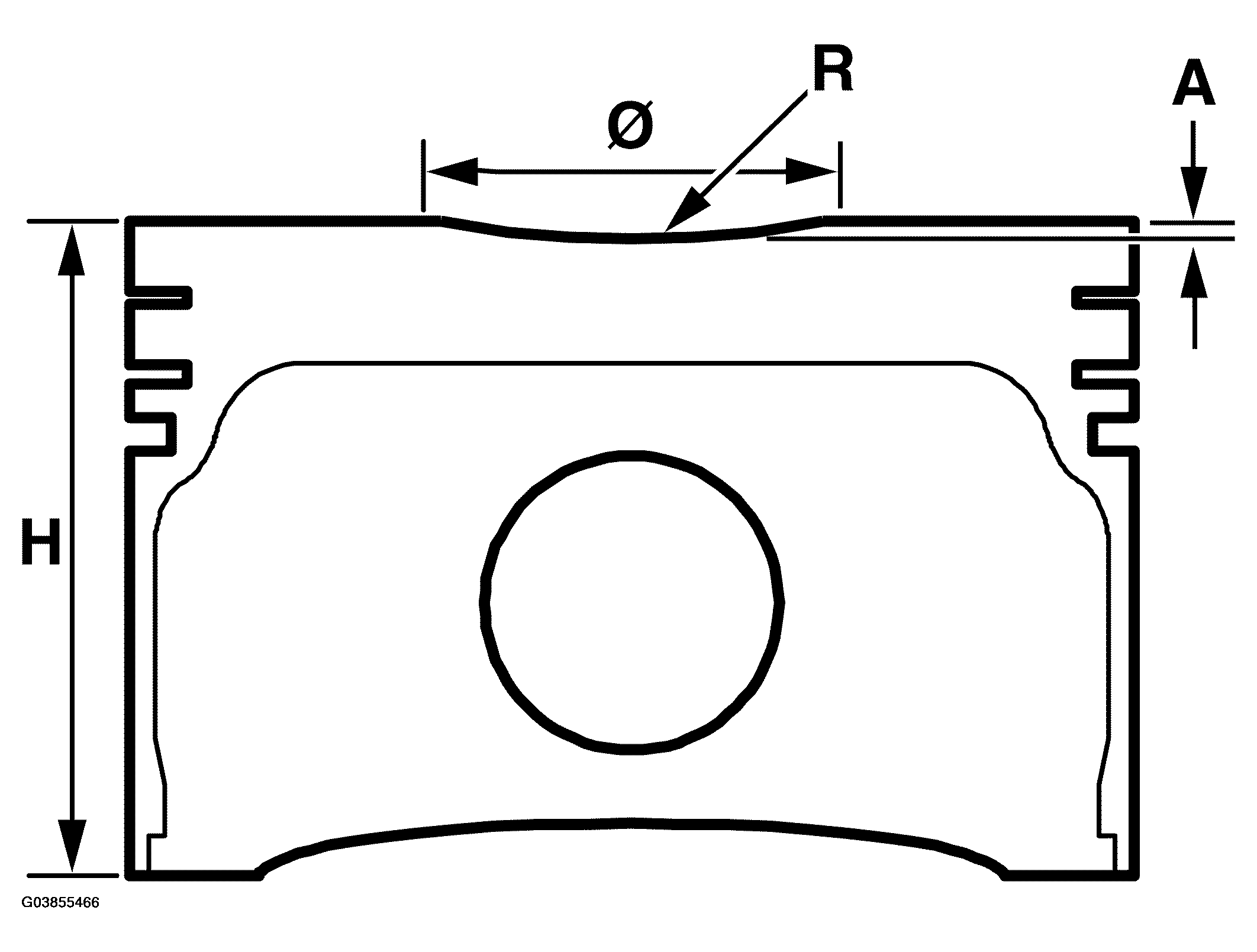

Fig 2: Measuring Piston Diameter

Courtesy of SAAB-SCANIA OF AMERICA, INC.
