Starter Motor For 4-CYL Petrol Engine

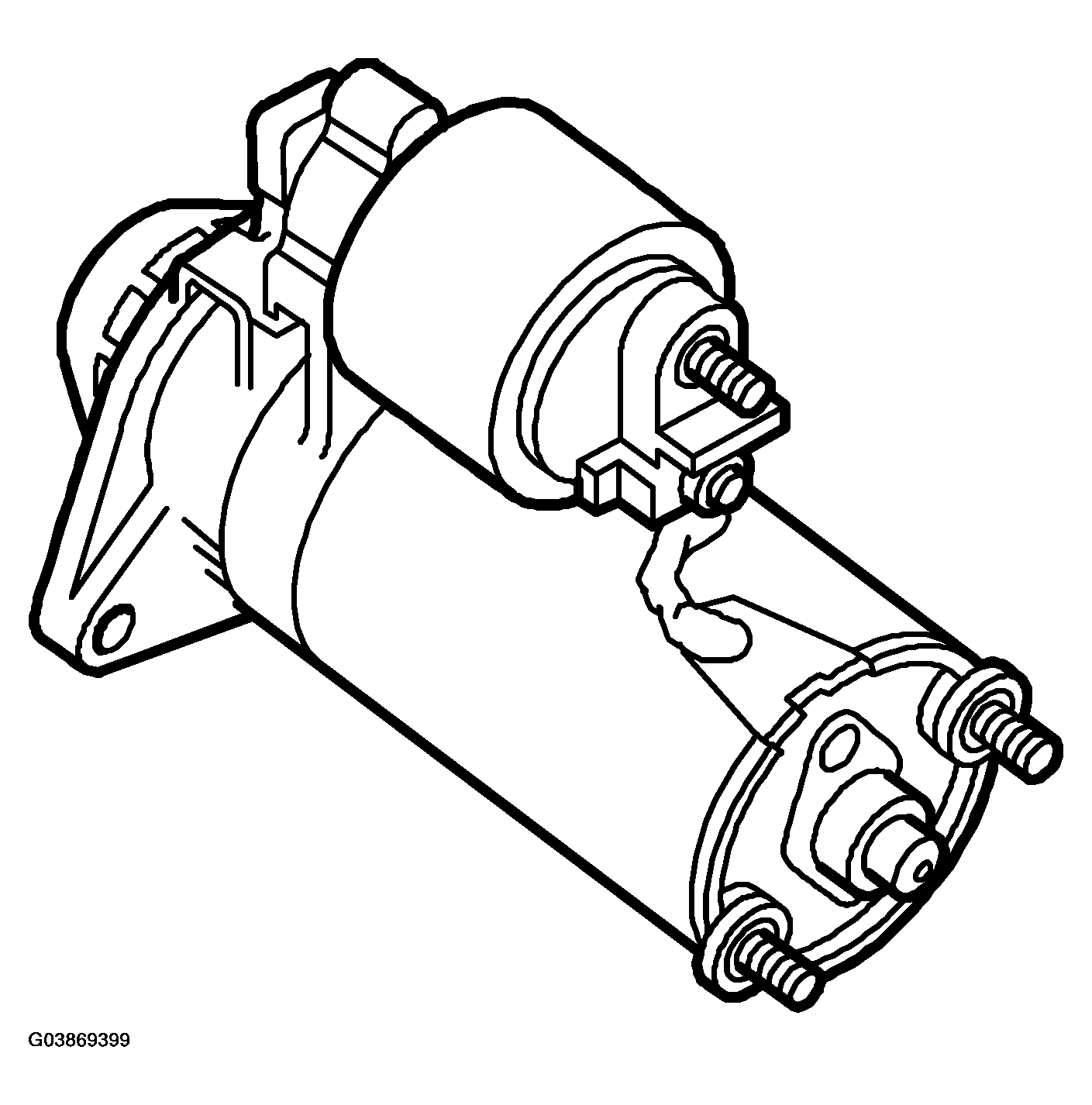

Fig 1: Identifying Starter Motor - 4-Cyl Petrol Engine

Courtesy of SAAB-SCANIA OF AMERICA, INC.

STARTER MOTOR SPECIFICATIONS - 4-CYL PETROL ENGINE

Type designation		Mitsubishi Electric M000T86781
Power	kW	1.4
No. of teeth on starter motor pinion		10
Number of teeth on ring gear		135
Ratio engine/starter motor		13.5:1

Test values

STARTER MOTOR TEST VALUES - 4-CYL PETROL ENGINE

No load, 11 V	RPM A	2500 90
Under load, 7.5 V	RPM A	880 300
Lowest engaging voltage for the solenoid switch	V	8
