Injectors, Flow Capacity

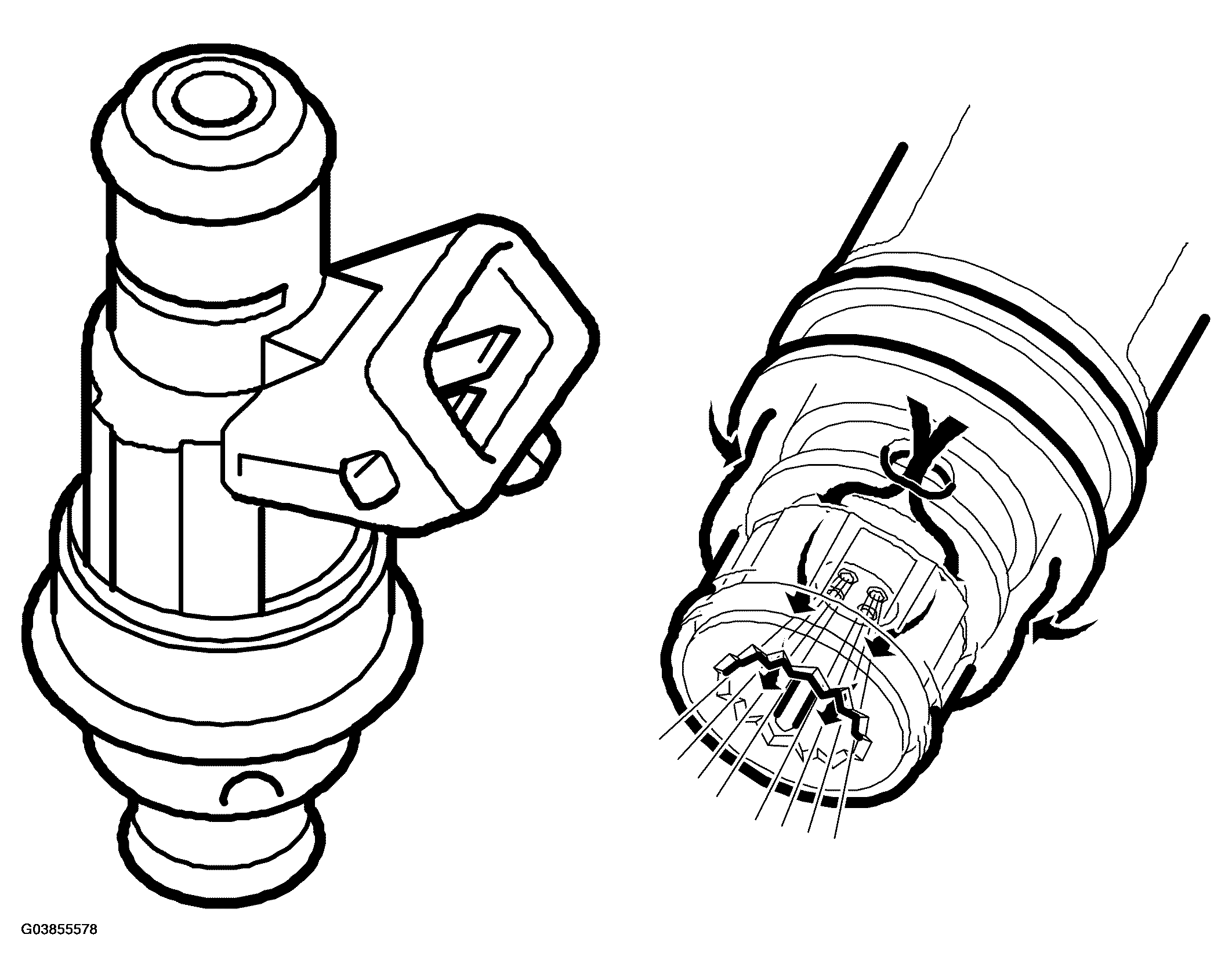

Fig 1: Identifying Injectors, Flow Capacity

Courtesy of SAAB-SCANIA OF AMERICA, INC.

4 cyl .

FLOW CAPACITY CHART

Flow capacity	ml/30s	176 +/- 7
Maximum permissible difference between injectors.	ml	14
