Home › Saab › 2005 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System, 4-CYL. › Adjustment - Replacement › EVAP Pressure Sensor › To remove

To remove

  1. Remove the fuel tank. See FUEL TANK .
  2. Blow clean around the pressure sensor.

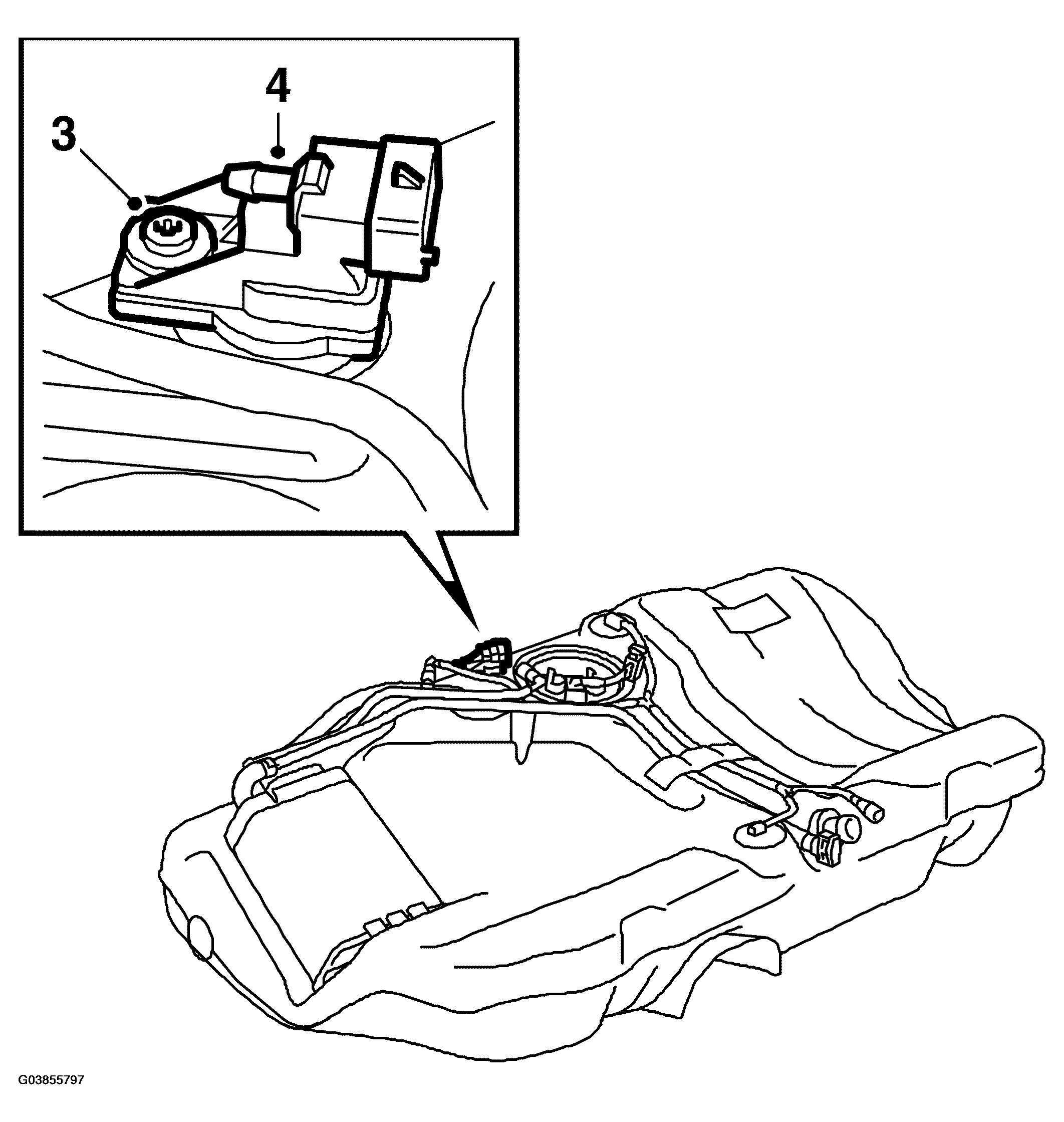

    Fig 1: Illustration For Steps 3-4
    G03855797Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw on the pressure sensor.
  4. Carefully remove the pressure sensor.
