Home › Saab › 2005 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System, 4-CYL. › Adjustment - Replacement › Ignition Discharge Module › To remove

To remove

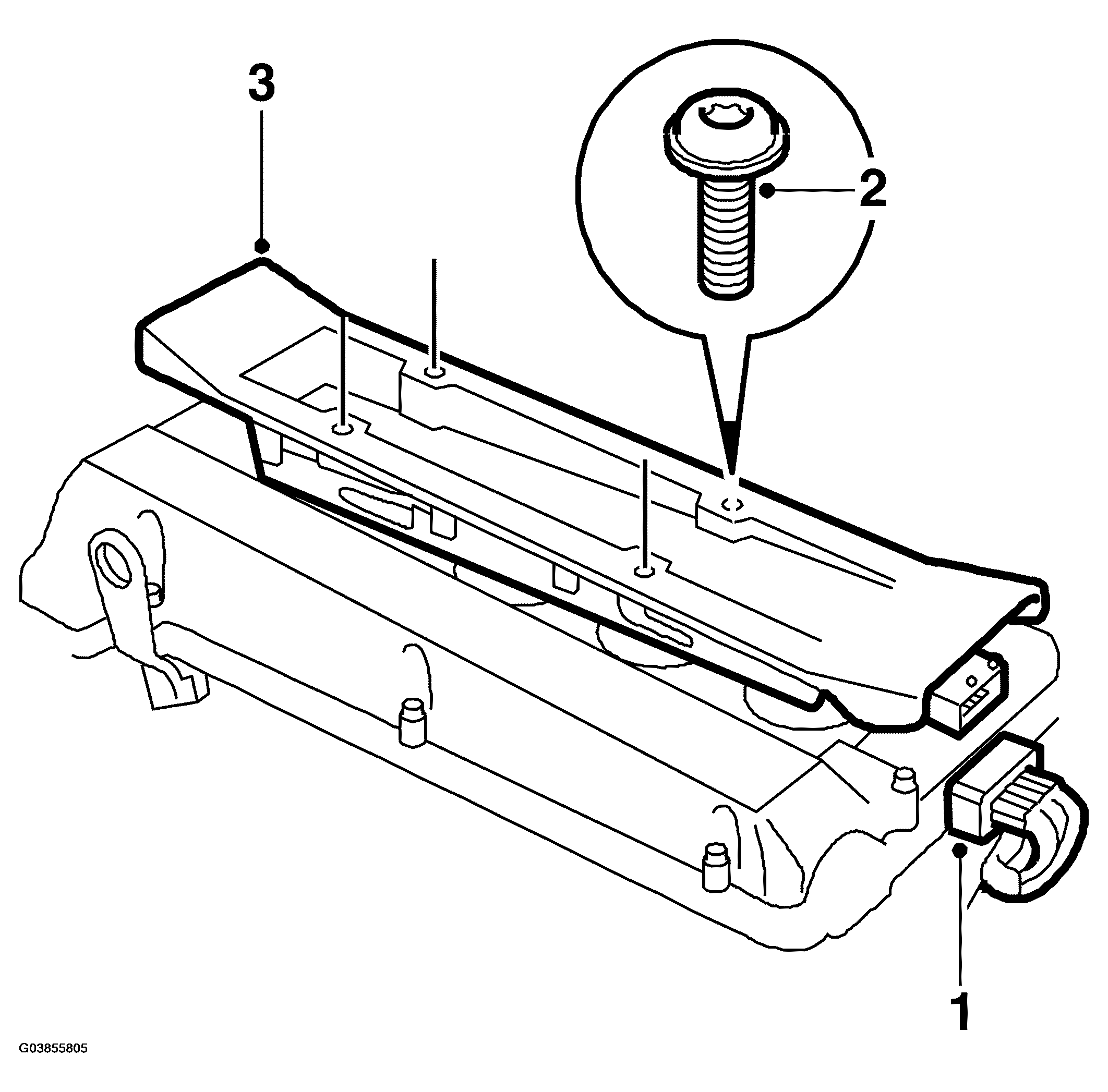

Fig 1: Illustration For Steps 1-3
G03855805Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unplug the 10-pin ignition discharge module connector.
  2. Remove the 4 screws.
  3. Lift up the module.
