Home › Saab › 2005 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System, 4-CYL. › Adjustment - Replacement › Manifold Absolute Pressure Sensor › To Remove

To Remove

  1. Remove the upper engine cover.

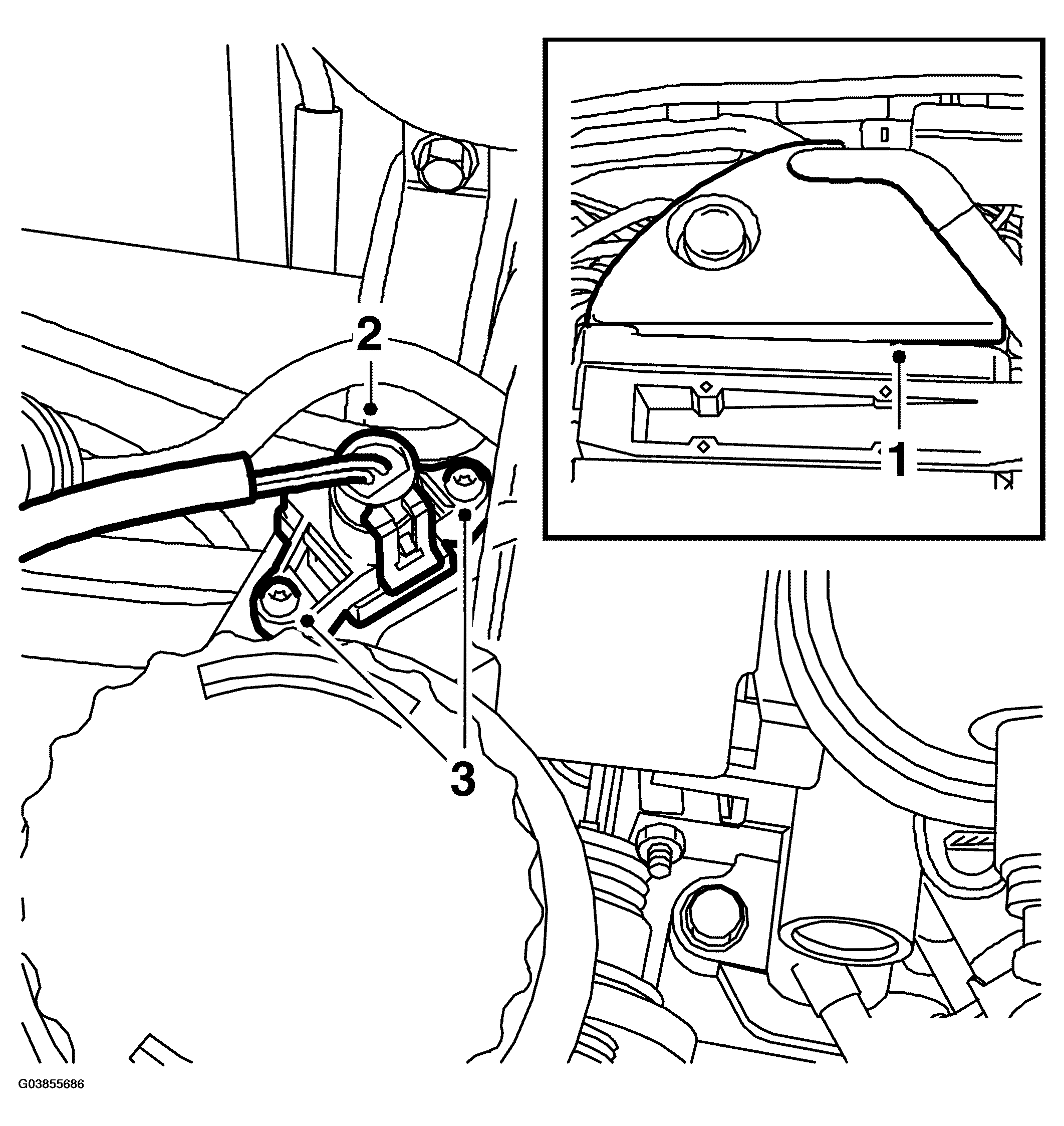

    Fig 1: Illustration For Steps 1-3
    G03855686Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.
  3. Remove the sensor.
