To remove

  1. Remove the lid on the box containing relays and fuses in the engine bay.

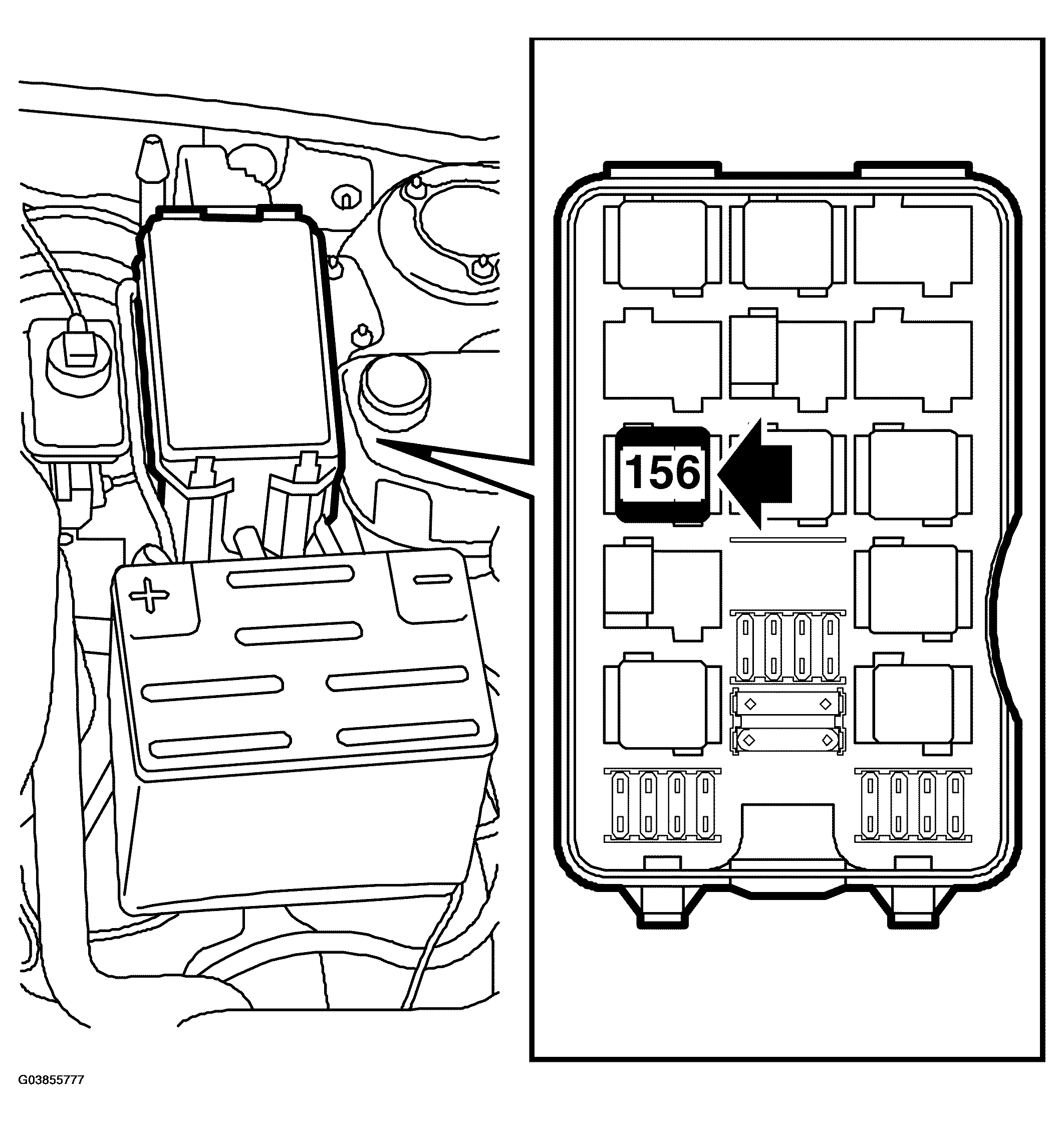

    Fig 1: Removing Relay
    G03855777Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the relay by moving the catch to the side and pulling up the relay.
