Home › Saab › 2005 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System, 4-CYL. › Component Location › Connector H16-7

Connector H16-7

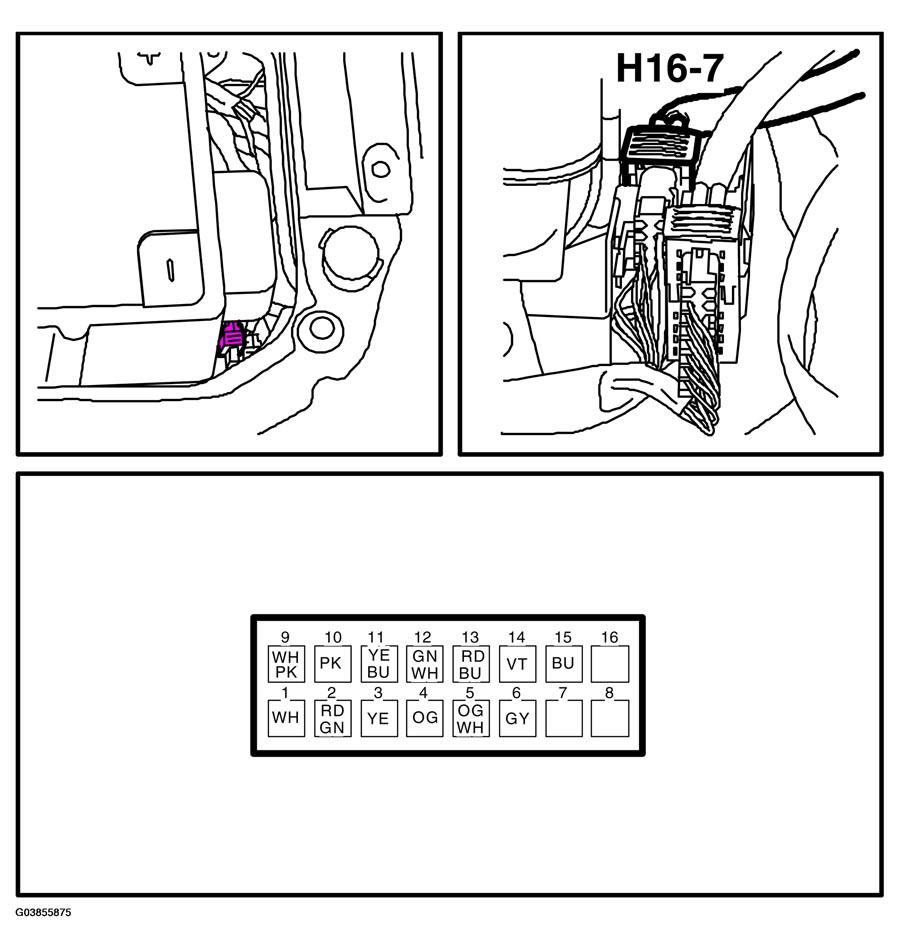

Fig 1: Identifying H16-7 Connector And Location
G03855875Courtesy of SAAB-SCANIA OF AMERICA, INC.
