Ignition Discharge Module: Notes

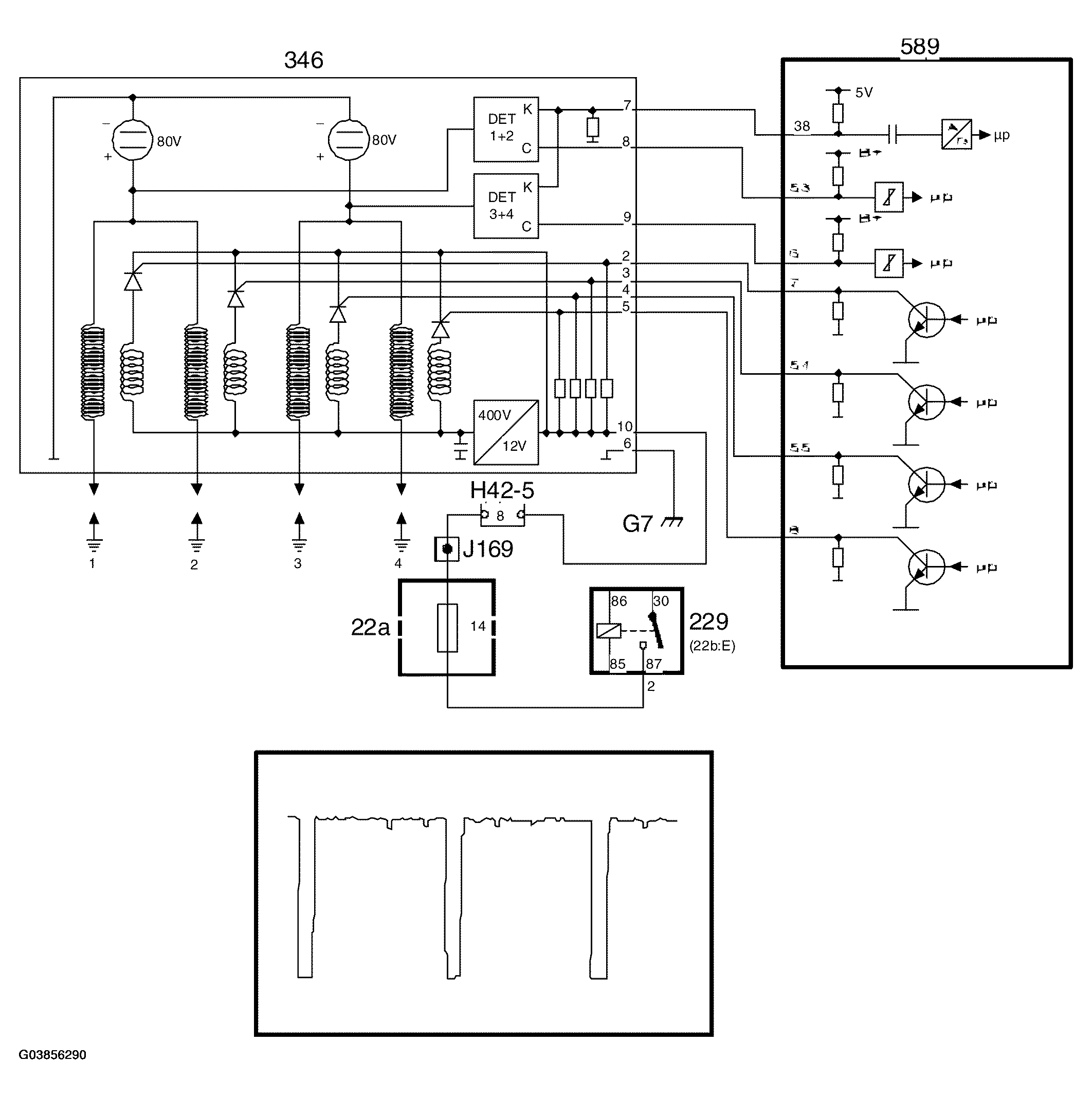

Fig 1: Ignition Discharge Module - Circuit Diagram
G03856290Courtesy of SAAB-SCANIA OF AMERICA, INC.
