To remove

  1. Raise the car. If a jack is used, the car must be supported on safety stands.
  2. Remove the wheel.
  3. Remove the nut from the anti-roll bar link.

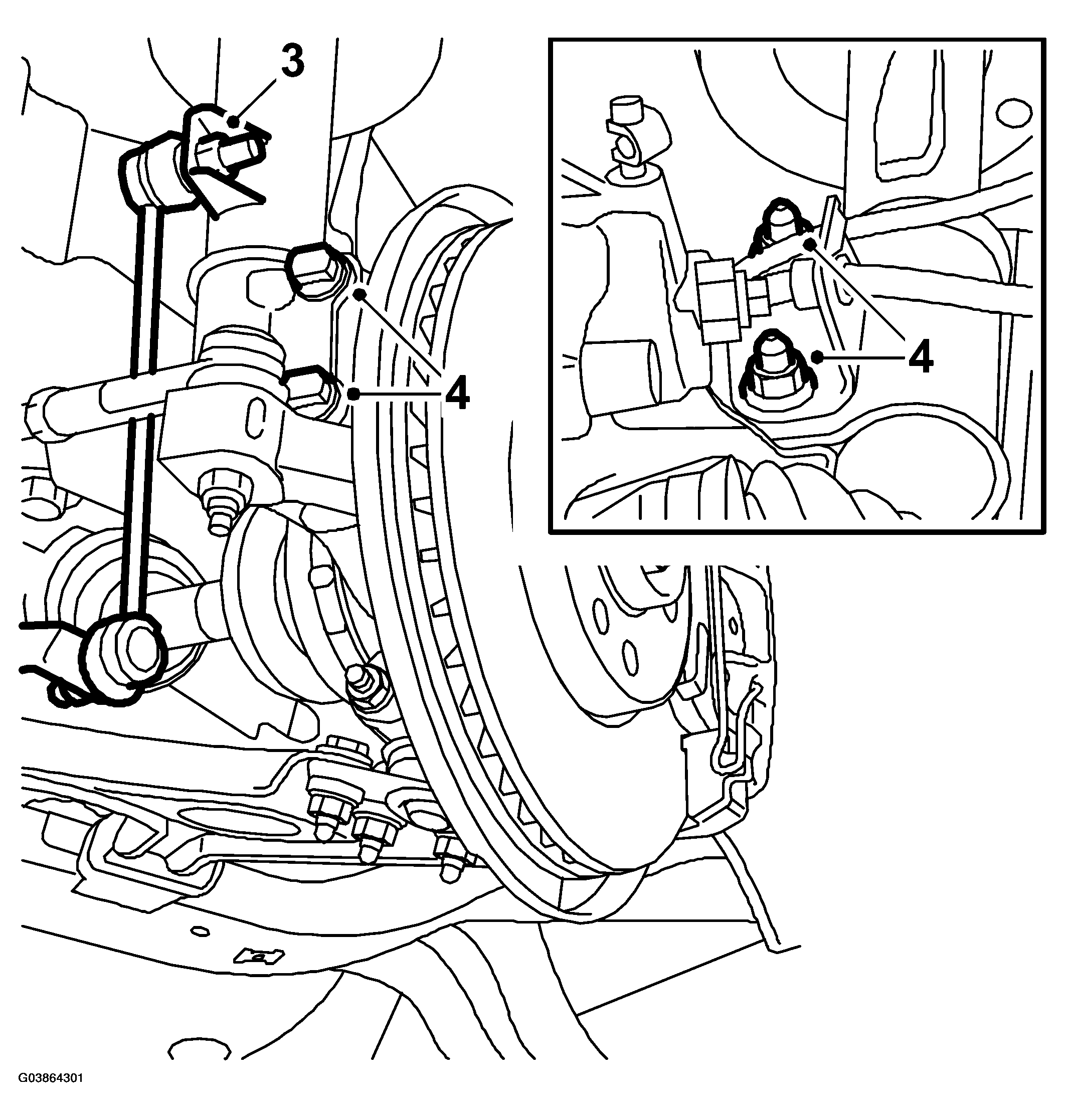

    Fig 1: Illustration For Step 3-4
    G03864301Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the steering swivel member from the MacPherson strut. Hold the bolt in place and remove the nut. Tap out the bolt. Use a new bolt when fitting.
    NOTE: The bolts are of a spline type and must not be turned.
  5. Withdraw the steering swivel member from the suspension strut.

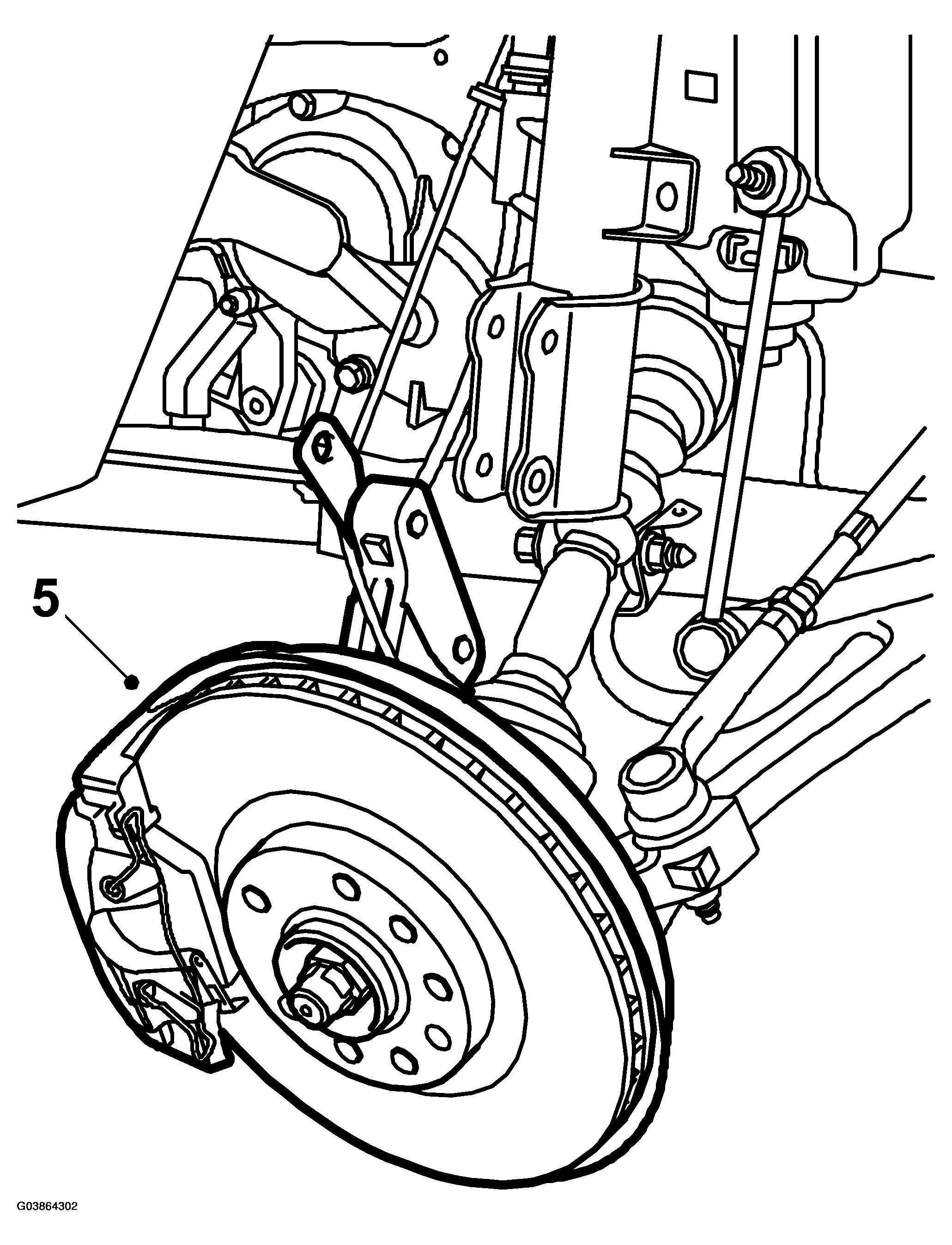

    Fig 2: Illustration For Step 5
    G03864302Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the MacPherson strut's three retaining bolts at the top attachment point.

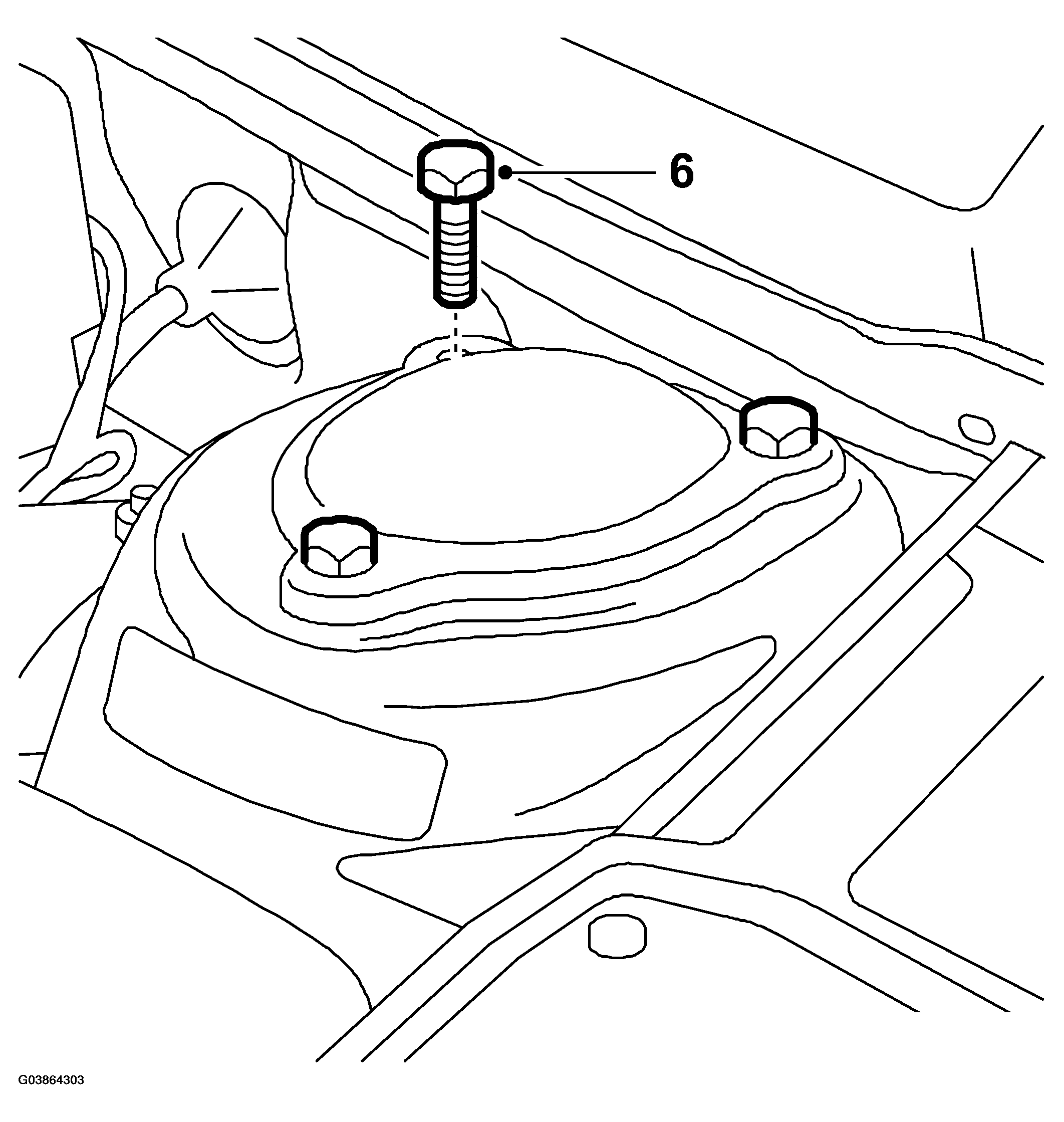

    Fig 3: Illustration For Step 6
    G03864303Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the MacPherson strut.
