Saab
›
2005
›
9-5 Linear, Automatic
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
Adjustment/Replacement
›
Subframe bushes
›
To remove
To remove
Remove the subframe, see
SUBFRAME, PETROL ENGINES, CHANGE
.
Remove the bush using
89 96 779 PRESS SLEEVE KIT, FRONT ASSEMBLY
.
A: KM-907-11
B: KM-907-12
C: KM-907-30

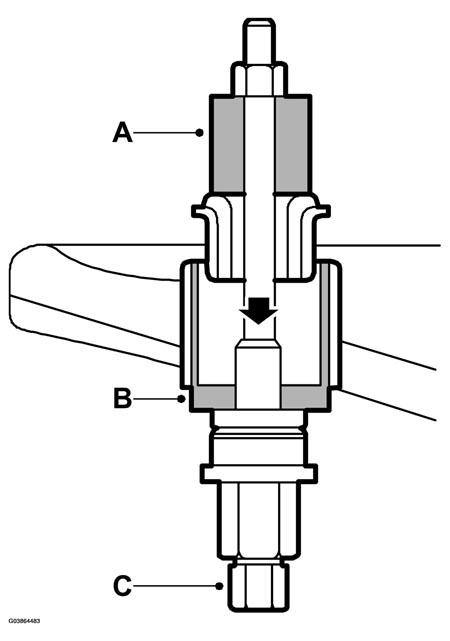

Fig 1: Identifying Press Sleeve Kit Components (Installing)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
