Automatic Transmission: Adjustment-Replacement: Solenoids: Fitting

  1. Position the solenoid and tighten the bolt.

    Tightening torque: 7 Nm (5 lbf ft)  .

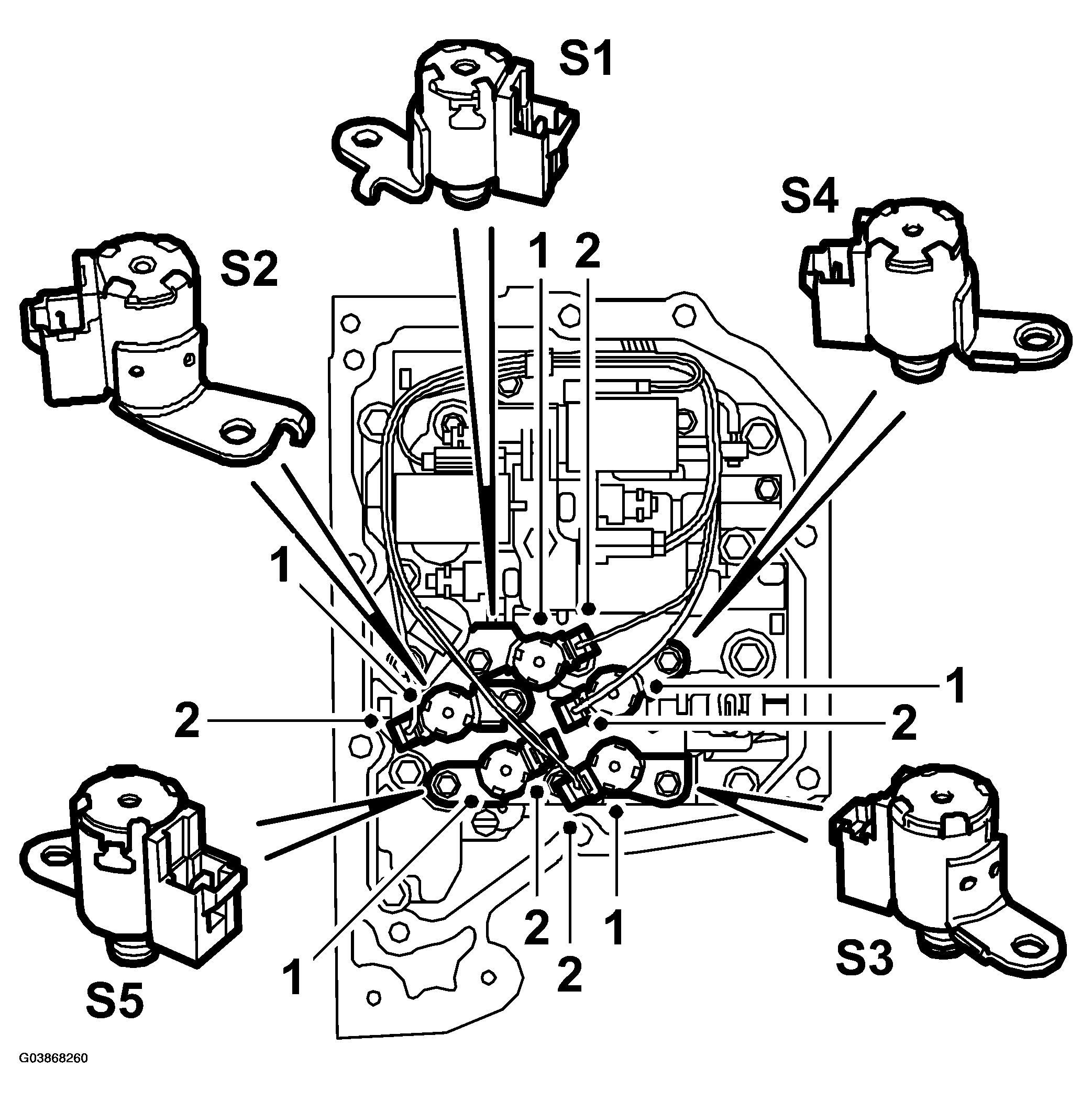

    Fig 1: Illustration For Steps 1-2
    G03868260Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the solenoid's connector.
  3. Fit the VALVE HOUSING COVER .
