Component location
›
Transmission range switch 1, automatic (245)
Transmission range switch 1, automatic (245)

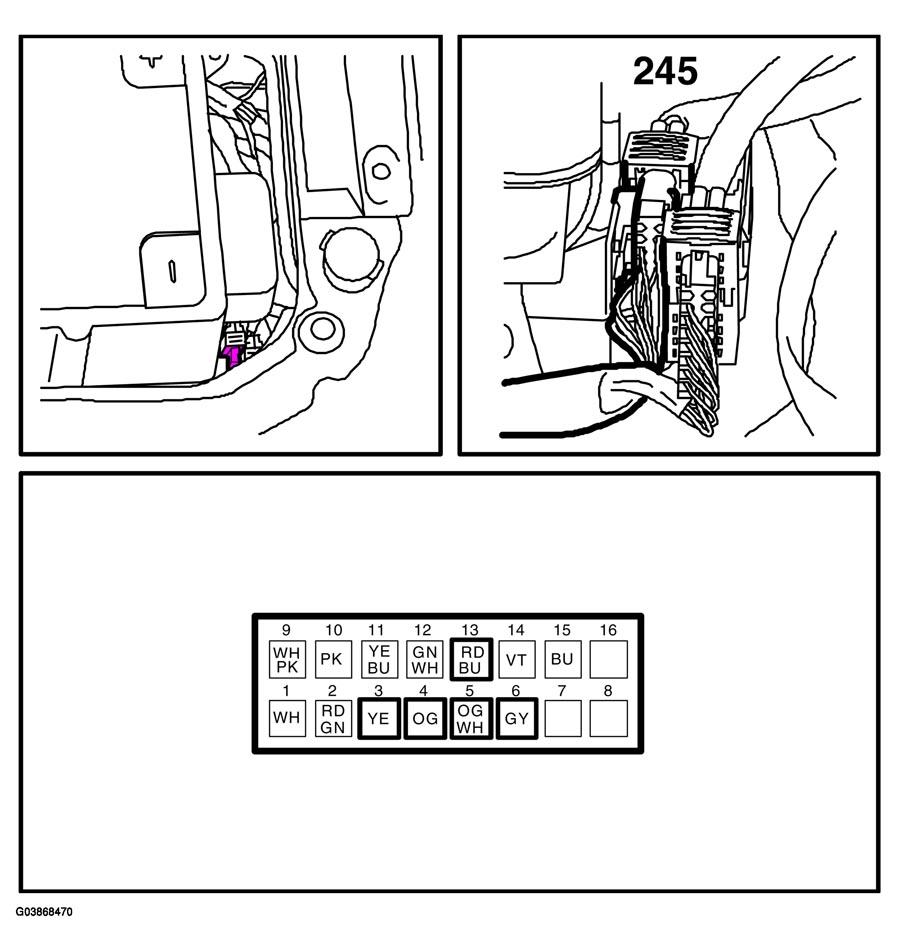

Fig 1: Identifying Transmission Range Switch 1 Location And Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
