Control module inputs

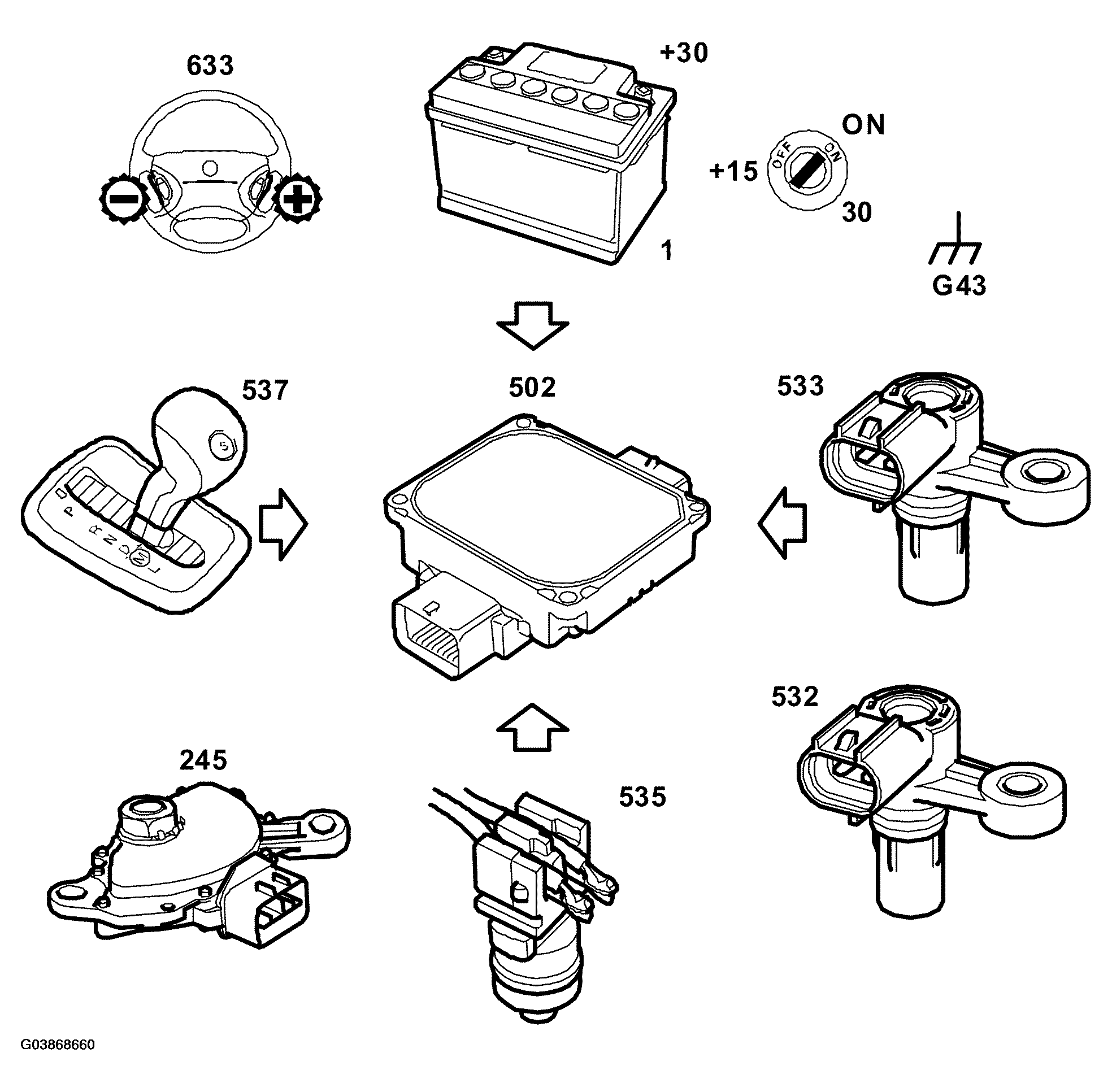

Fig 1: Communication Diagram - Control Module (1 Of 2)

G03868660

Courtesy of SAAB-SCANIA OF AMERICA, INC.

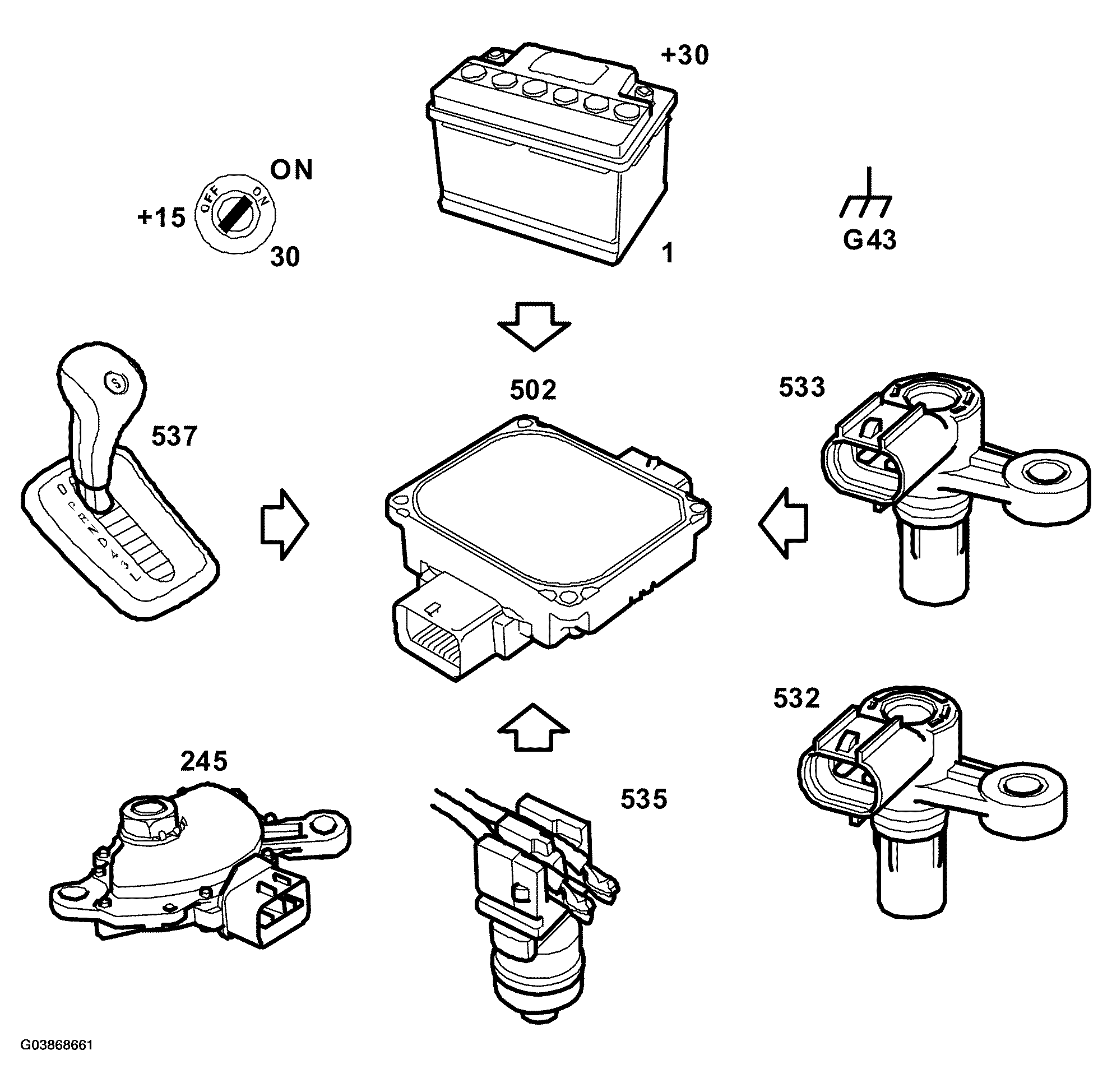

Fig 2: Communication Diagram - Control Module (2 Of 2)

G03868661

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage +30 (A33).
Battery voltage +15 (A31, A22).
Ground (G43).
Speed sensor, input shaft (532).
Speed sensor, output shaft (533).
Temperature sensor, transmission fluid (535).
Gear selector position sensor (245).
Switch, SPORT (537).
Switch, up and down gear changing, pin 8 (A)
