Control module outputs

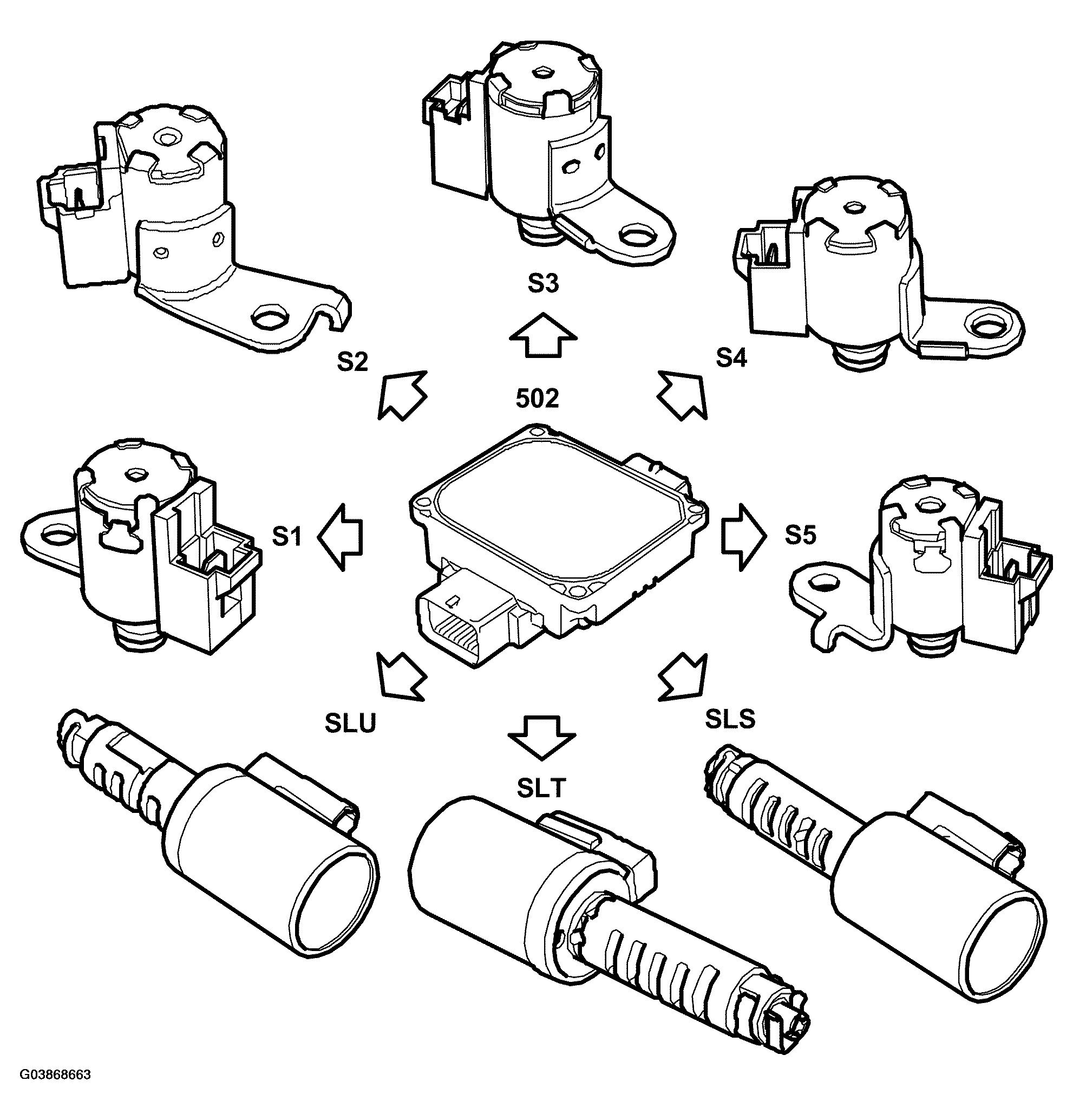

Fig 1: Communication Diagram - Control Module Outputs

G03868663

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Solenoid valve S1 for shifting.
Solenoid valve S2 for shifting.
Solenoid valve S3 for shifting.
Solenoid valve S4 for shifting.
Solenoid valve S5 for shifting.
Solenoid valve SLU for lock-up.
Solenoid valve SLT for system pressure.
Solenoid valve SLS for clutch pressure.
