Power flow, 5th gear

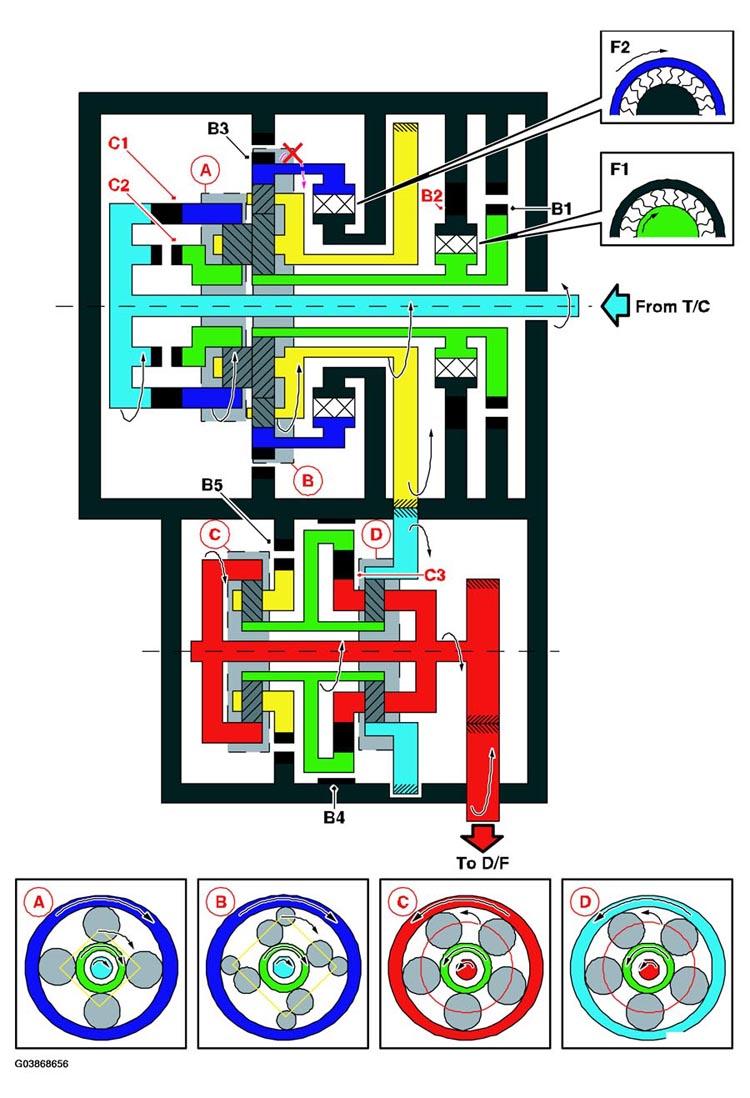

Fig 1: Identifying 5th Gear Power Flow

Courtesy of SAAB-SCANIA OF AMERICA, INC.

5TH GEAR POWER FLOW TECHNICAL DESCRIPTION

Position		S1	S2	S3	S4	S5	C1	C2	C3	B1	B2	B3	B4	B5	F1	F2
D	5th	OFF	OFF	OFF	ON	OFF	ON	ON	ON	OFF	ON	OFF	OFF	OFF	OFF	OFF
