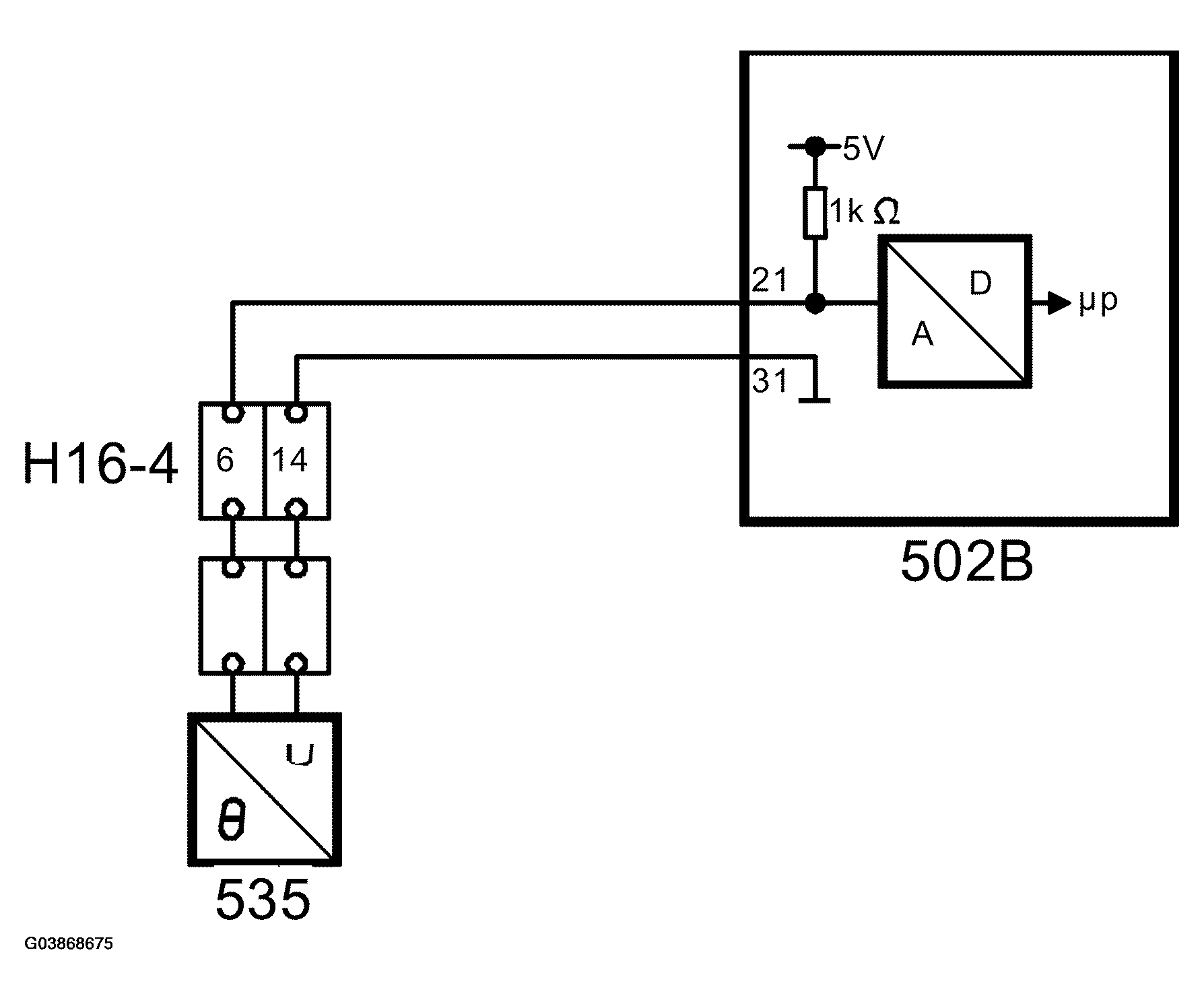

Transmission fluid temperature sensor: Diagnostics
In the event of a fault in the temperature sensor, three different diagnostic trouble codes may be generated:
- If the temperature increases or decreases too slowly during the first 15 minutes of driving, diagnostic trouble code P0711 will be generated.
- In the event of short to B-, diagnostic trouble code P0712 will be generated.
- In the event of short to B+ or an open circuit, diagnostic trouble code P0713 will be generated.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
TRANSMISSION FLUID TEMPERATURE CHARTOil temperature °C Resistance O +/-10% Voltage (TCM) V +/-10% -10 5000 4.6 0 2000 4.1 20 900 3.4 40 400 2.4 80 125 1.1 100 75 0.7 150 27 0,3
