Gear Selector Mechanism (Automatic)
›
Adjustment - Replacement
›
SPORT button
›
To remove
To remove

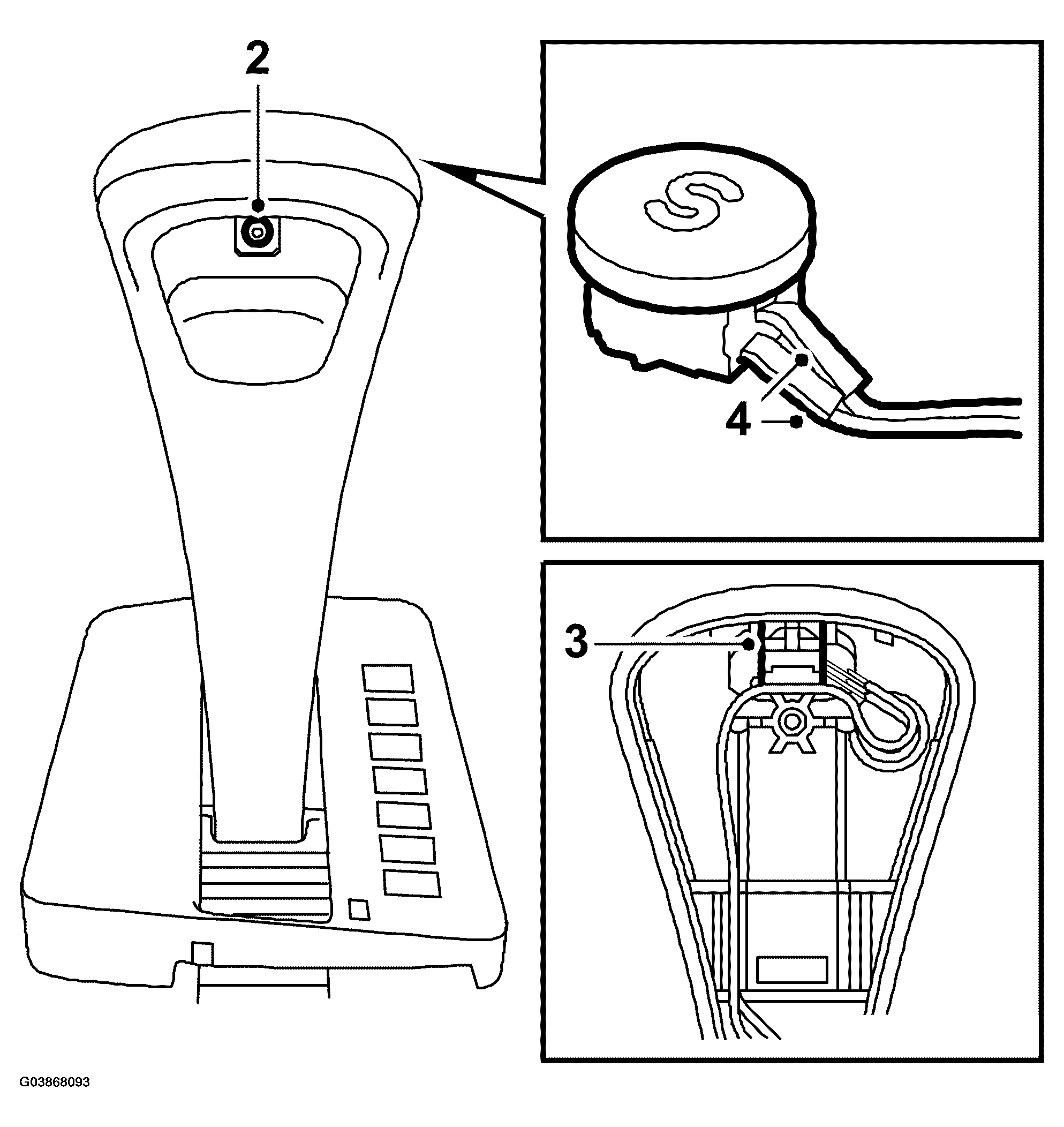

Fig 1: Illustration For Step 2 - 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Put the gear selector in position N or D.
Remove the front part of the gear selector housing.
Press up the SPORT button from below.
Unsolder the SPORT button. Lay a guard underneath so the solder does not drip onto the center console.
