To Remove

  1. Connect Tech 2.
  2. Establish communication with the audio system.
  3. Select "PROGRAMMING  " from the system menu.

    The text "Marriage/Divorce" is displayed.

  4. Press "ENTER".
  5. Select DIVORCED with the change button and press "OK".
    • "DIVORCED" must be selected when removing the head unit (to be installed in another car or to be returned for warranty repair).
  6. The radio should no mute after a short delay and "TheftLock is activated" appear on the unit's screen.
  7. Press the special tools into the holes provided for them in the head unit. Press the tools in until they lock, at which point a click will be heard.

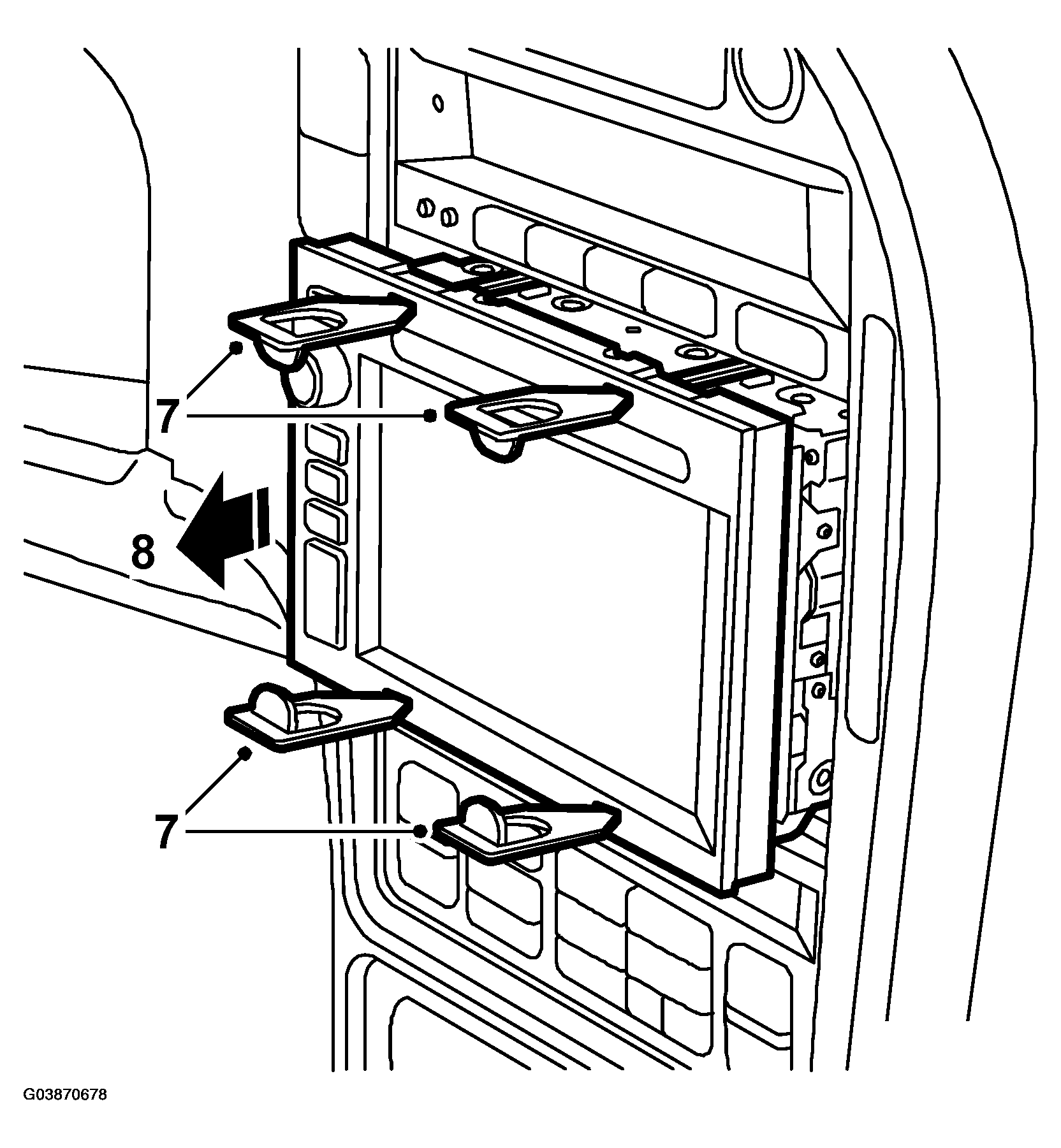

    Fig 1: Illustration For Step 7-8
    G03870678Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Extract the head unit using the tool handles. Remove the special tools.
  9. Unplug the connectors from the unit.

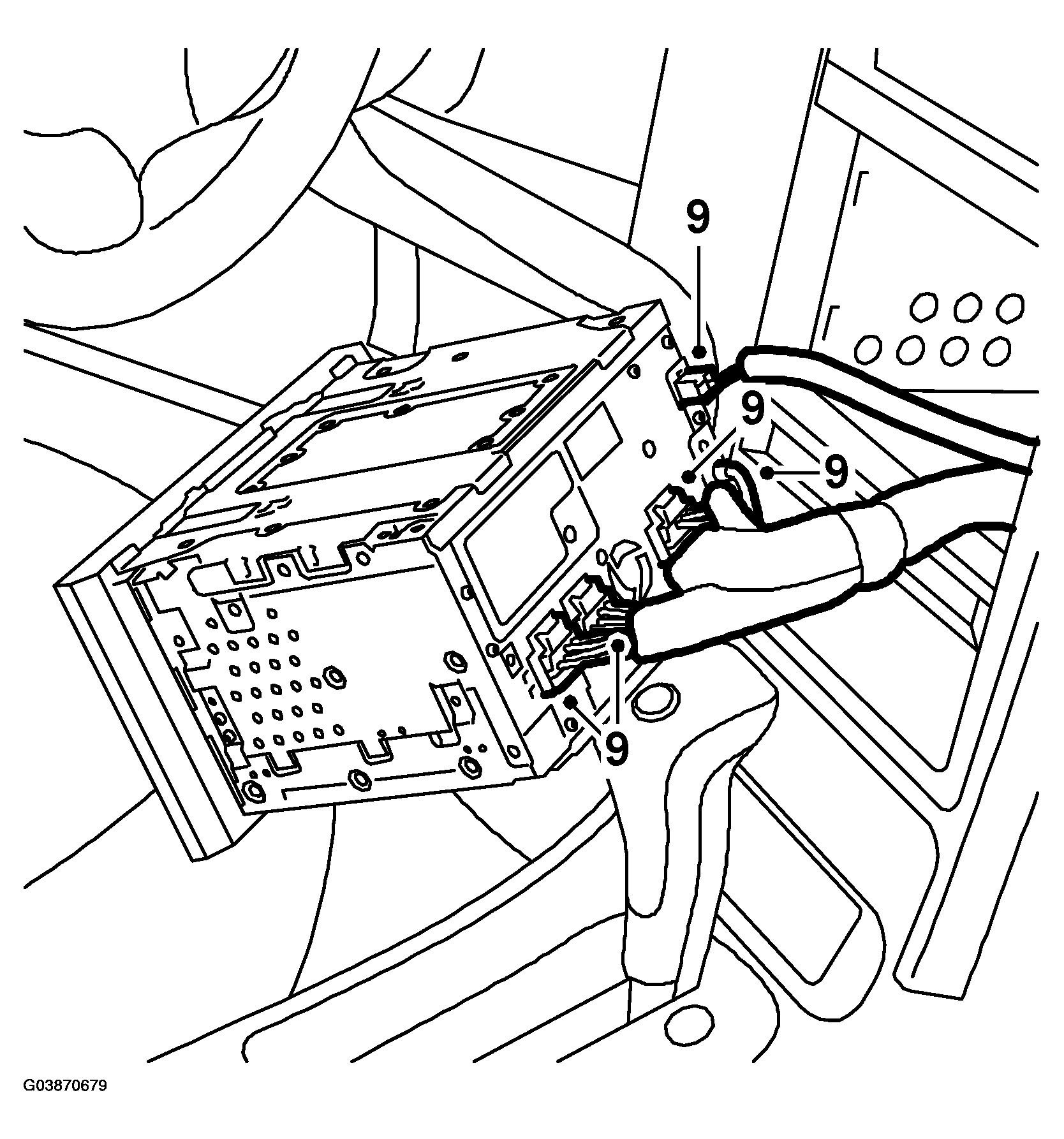

    Fig 2: Illustration For Step 9
    G03870679Courtesy of SAAB-SCANIA OF AMERICA, INC.
