Grounding point G40: Notes

Fig 1: Identifying Grounding Point G40 And It's Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

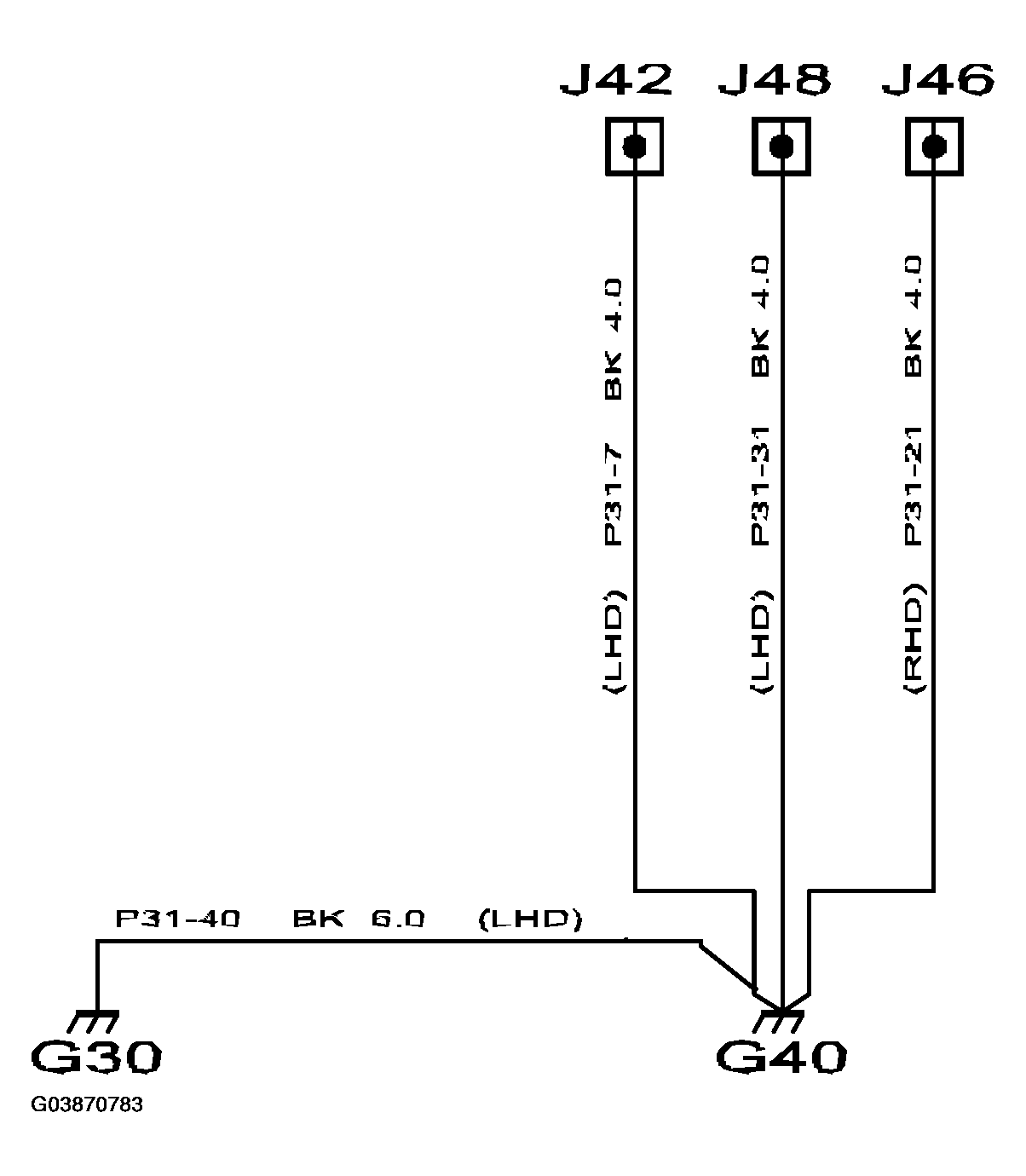

Fig 2: Grounding Point G40 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In passenger compartment on left-hand side of knee member.
