Grounding point G42: Notes

Fig 1: Identifying Grounding Point G42 And It's Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

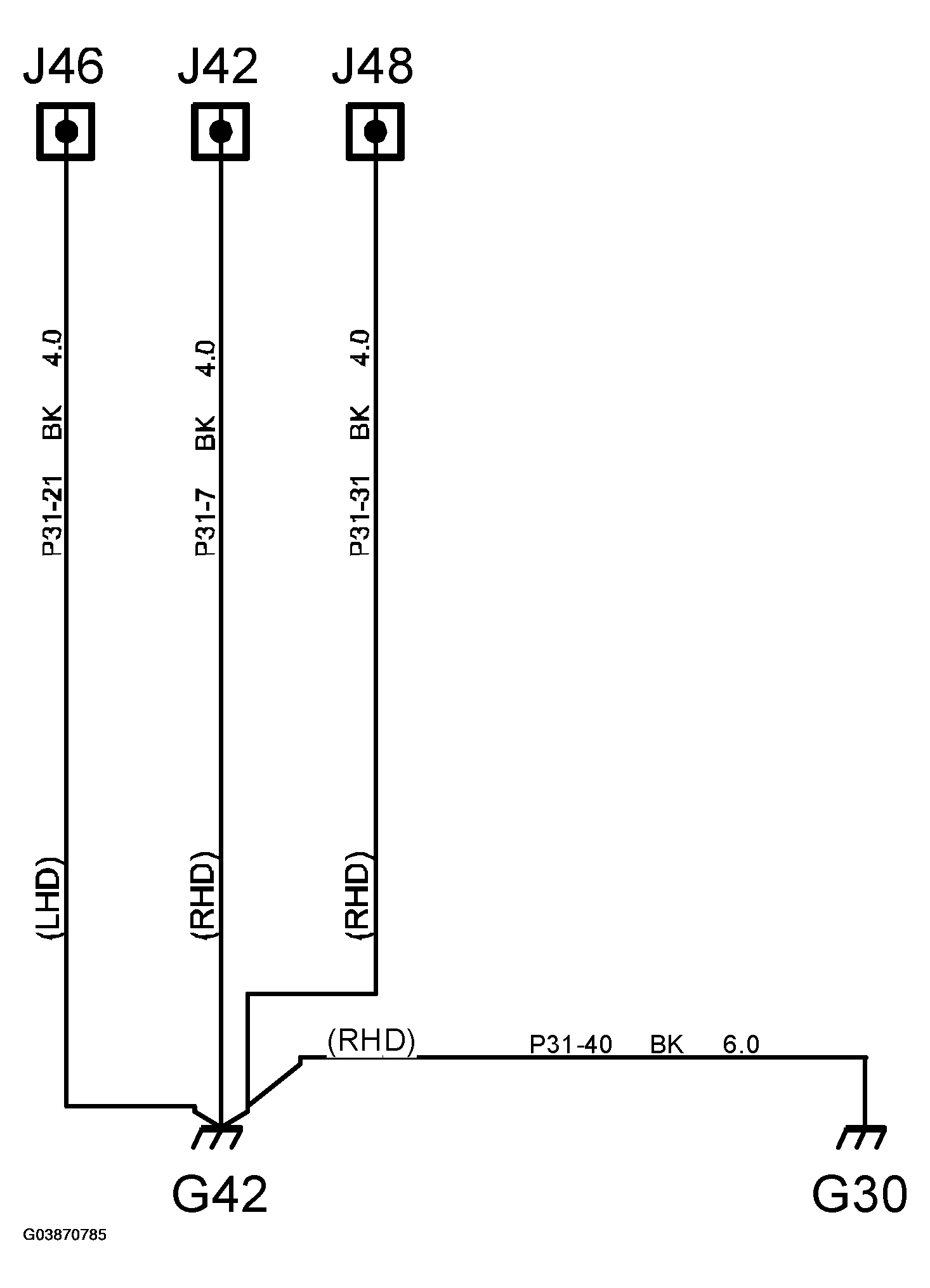

Fig 2: Grounding Point G42 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On right-hand side of knee member.
