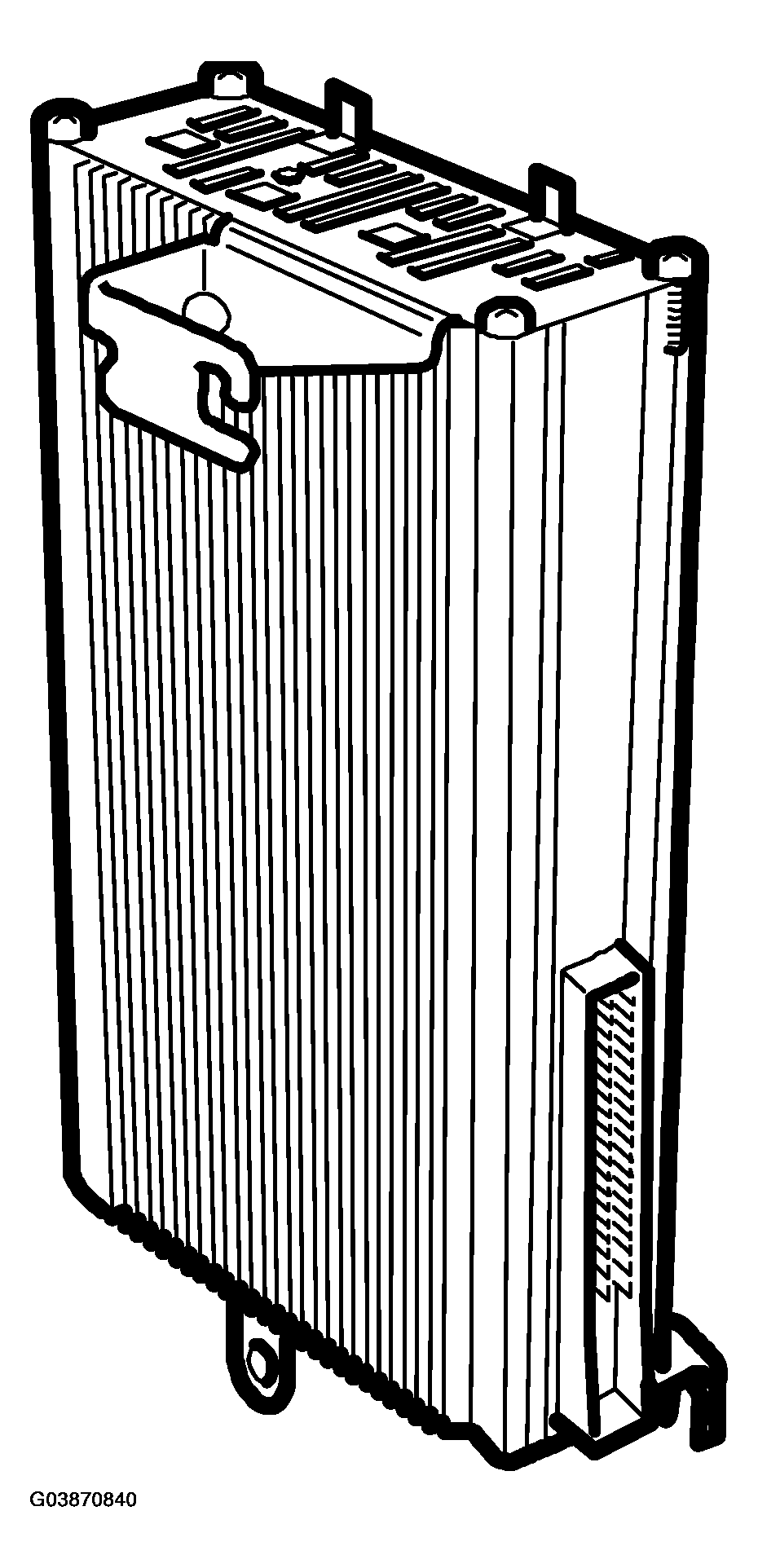

Amplifier, Prestige
AMPLIFIER (PRESTIGE) TECHNICAL DATA
| Manufacturer: | Harman-Kardon | |
| Location: | Right-hand A-pillar | |
| Number of pins: | 39 | |
| Mute control (in): | Pin No. | 11 |
| Trigger voltage: | Pin No. | 12 |
| Power supply +30: | Pin No. | 1, 2 |
| Ground: | Pin No. | 21, 22 |
| Inputs: | 4 channels (lines), balanced | |
| Outputs: | Center | 1 x 16 W (at 5.9 ohms) |
| mid-range/treble | 4 x 16 W (at 2.5 ohms), right/left dashboard and right/left rear doors | |
| midrange/bass & sub-woofer, 4D subwoofer, 5D |
2 x 22 W (at 2.4 ohms), right/left front doors. 2 x 22 W (at 2 ohms) right/left-hand side of parcel shelf. 2 x 22 W (at 2 ohms) right side of luggage compartment, 1 bass cabinet with 1 loudspeaker |
|
| Distortion (THD) at rated power: | < 1% | |
| Closed-circuit current consumption: | mA | +/-0.1 |
| Max. current consumption: | A | < 20 |
