Head unit ground: Notes

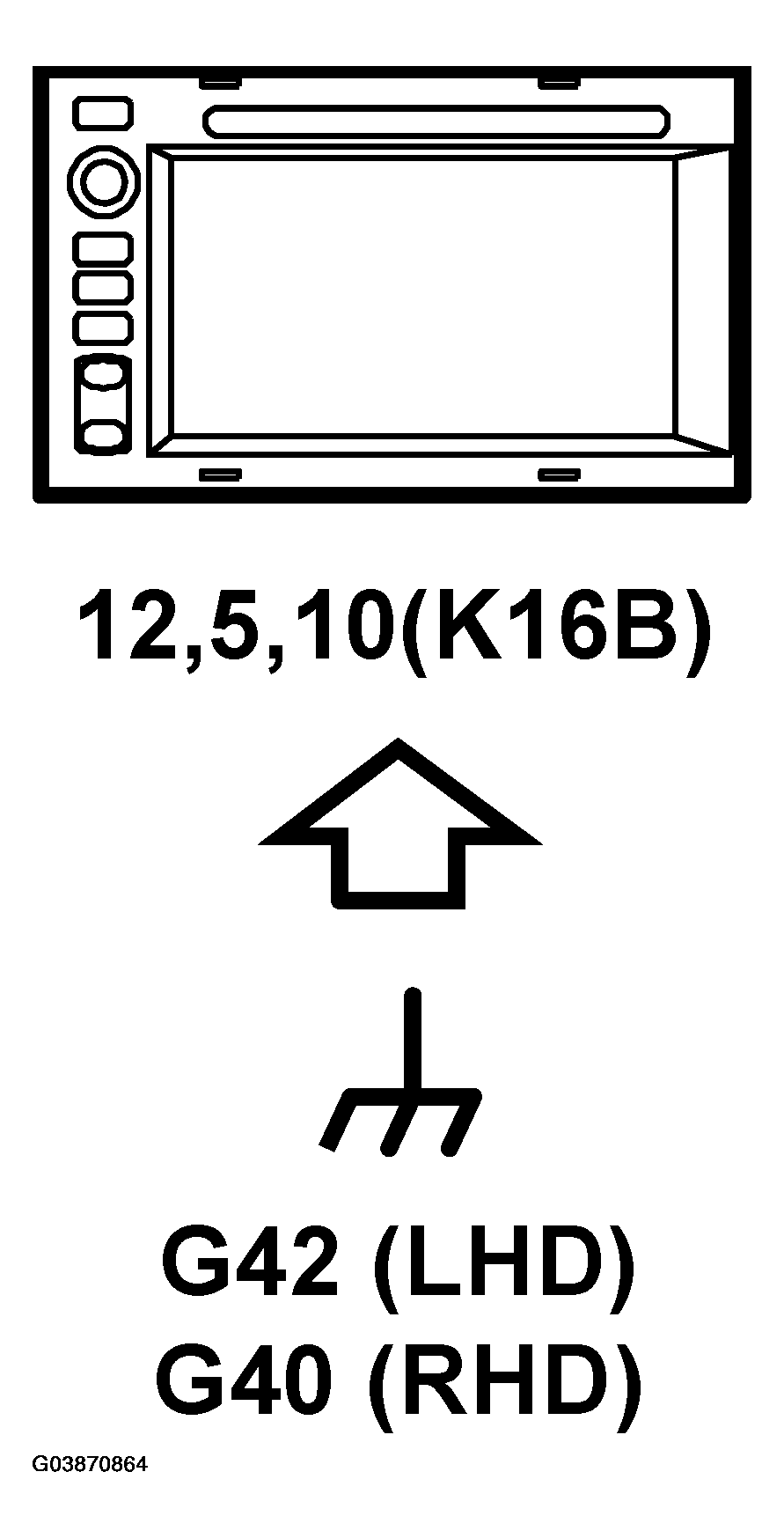

Fig 1: Head Unit Ground Communication Diagram
G03870864Courtesy of SAAB-SCANIA OF AMERICA, INC.

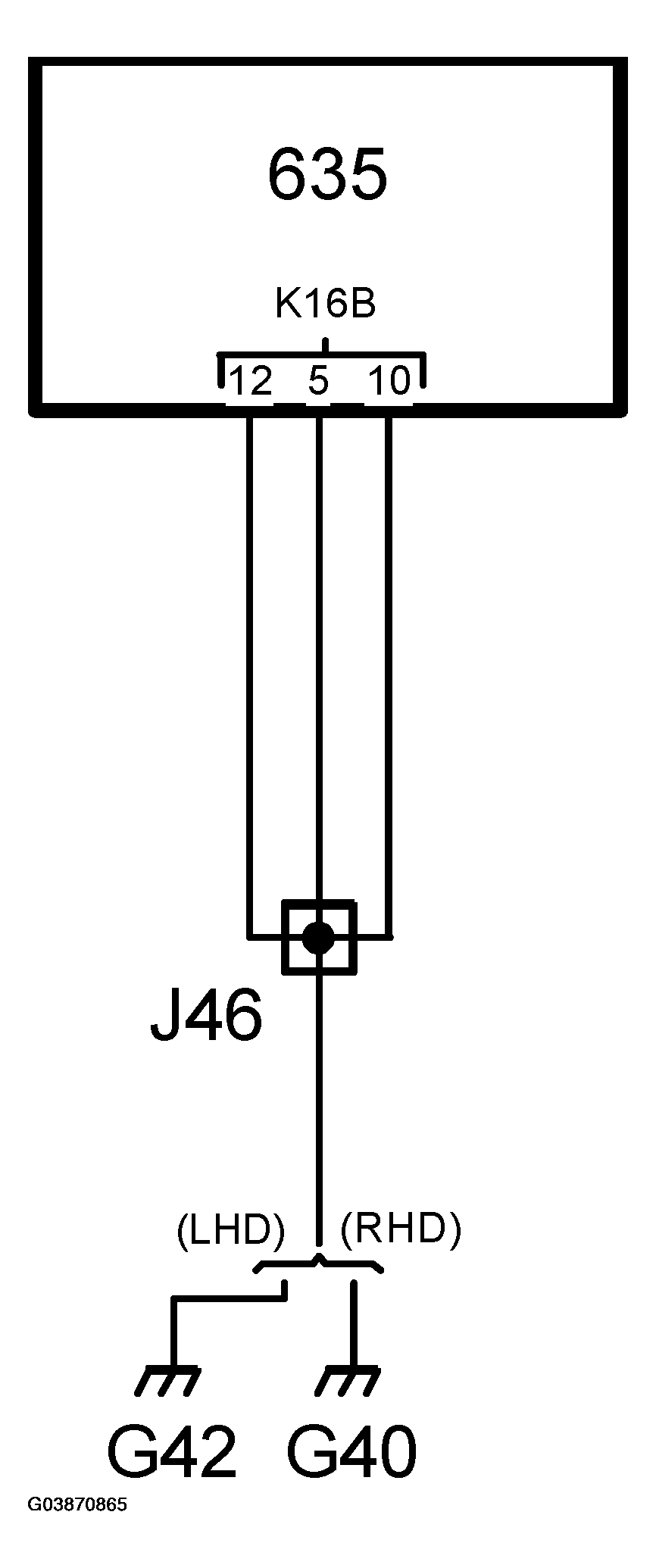

Fig 2: Head Unit Ground Wiring Diagram
G03870865Courtesy of SAAB-SCANIA OF AMERICA, INC.
