Power amplifier, Premium/Prestige: Notes

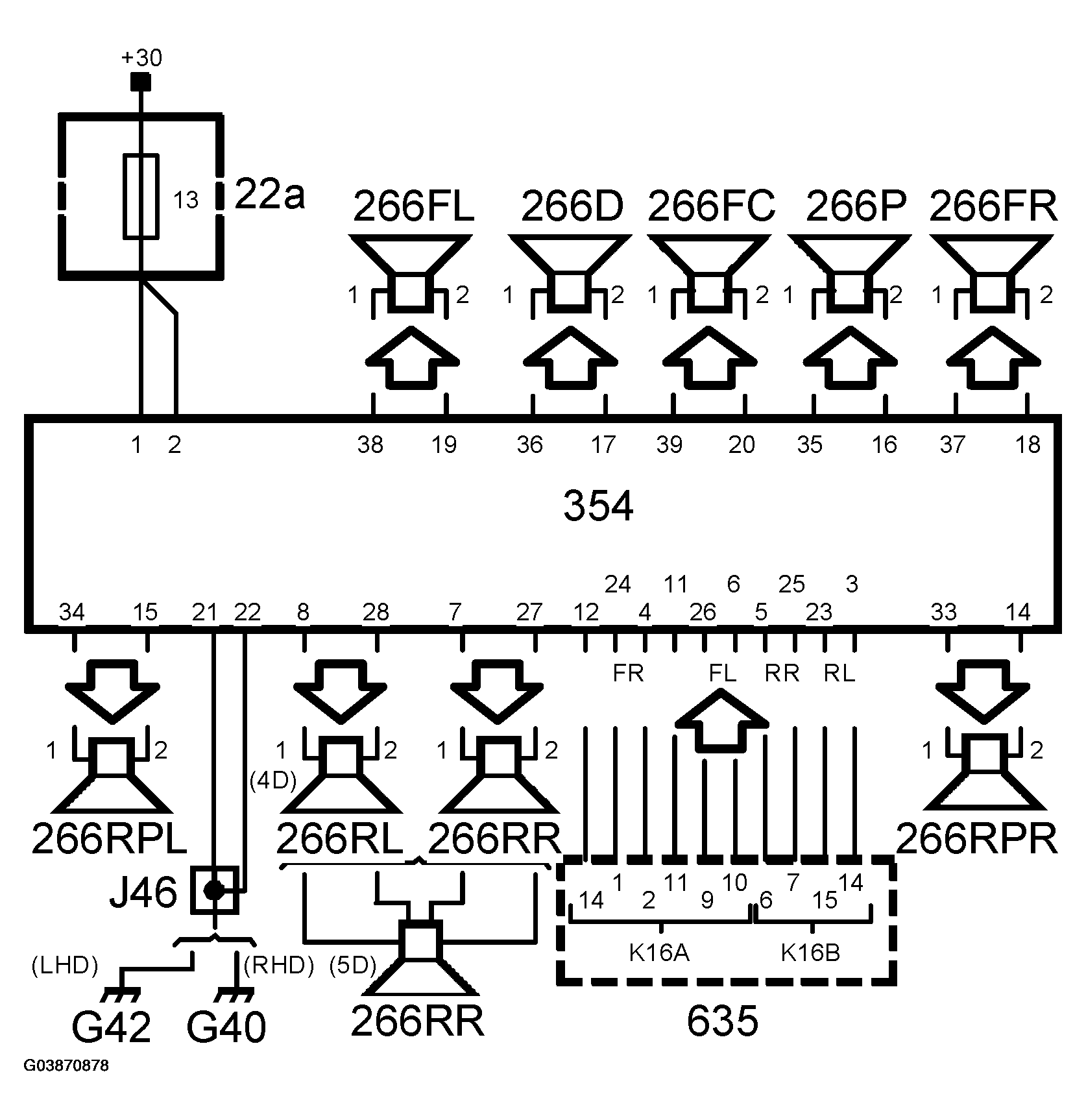

Fig 1: Power Amplifier, Premium/Prestige Communication Diagram (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

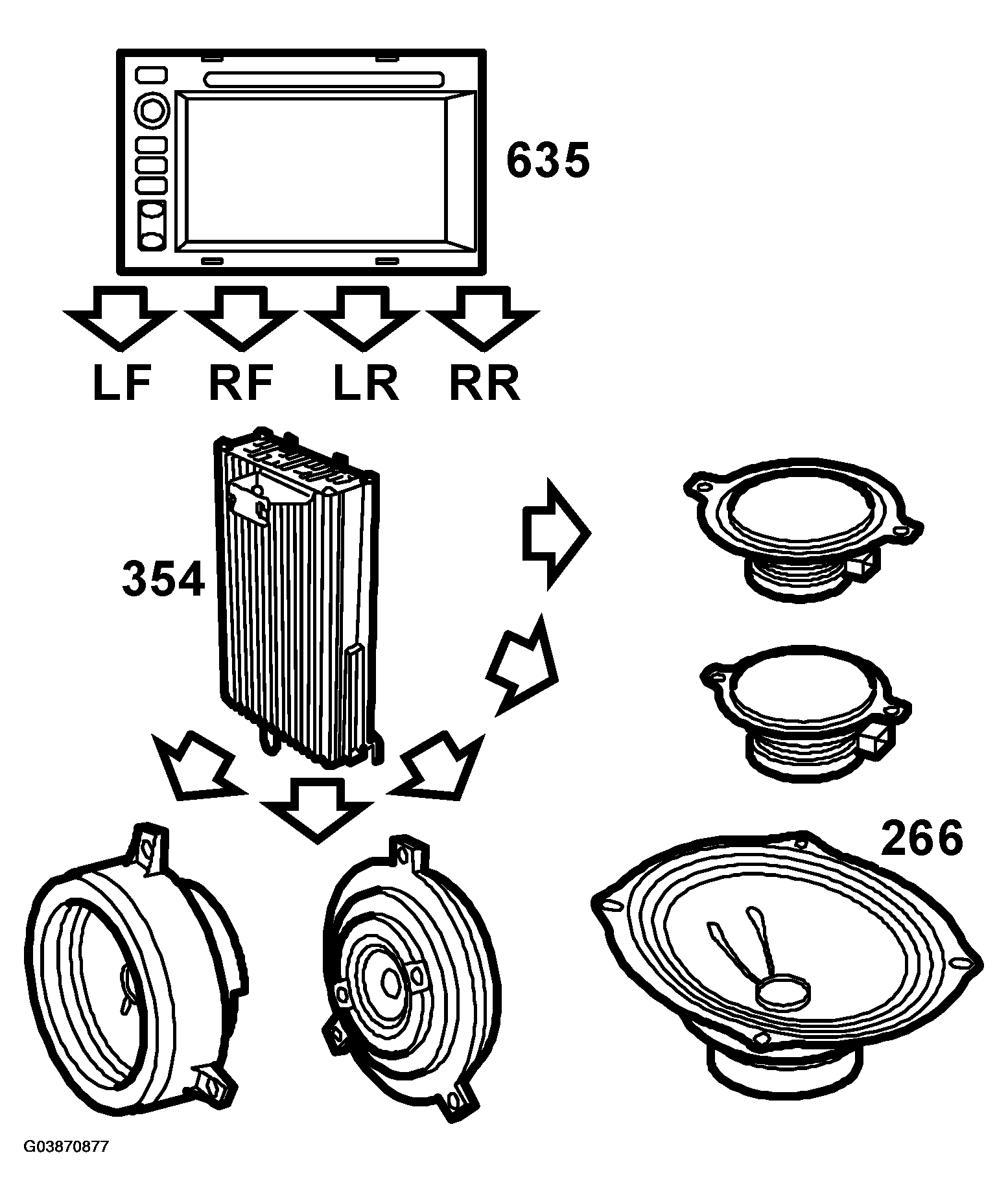

Fig 2: Power Amplifier, Premium/Prestige Communication Diagram (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
