To remove

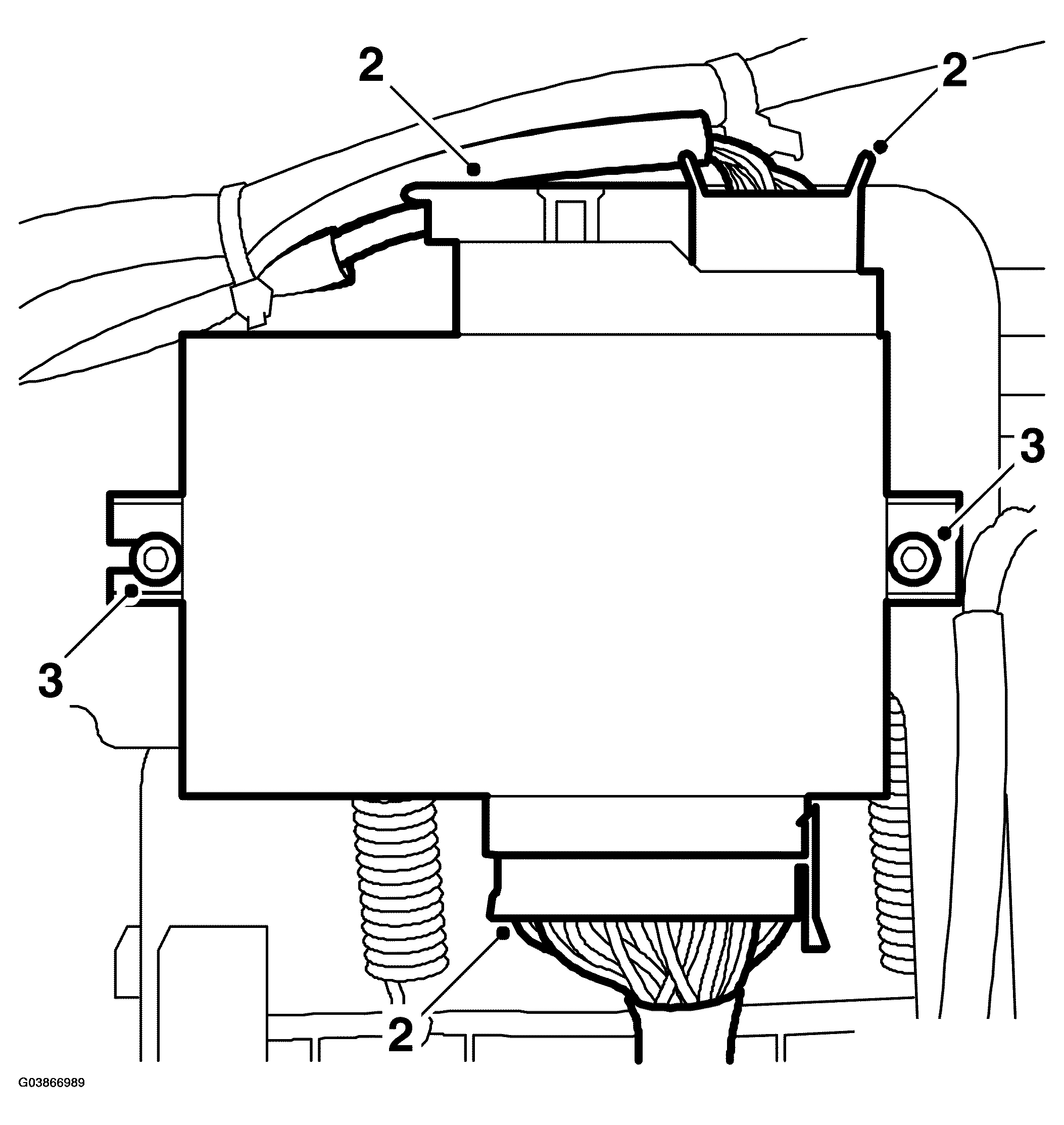

Fig 1: Illustration For Step 2-3
G03866989Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat and tilt it back.
  2. Unplug 3 connectors on the control module.
  3. Unscrew the control module from the bracket, 2 screws.
