PSG16 Control Module, Connector M (595M)
PSG16 Control Module, Connector M (595M)

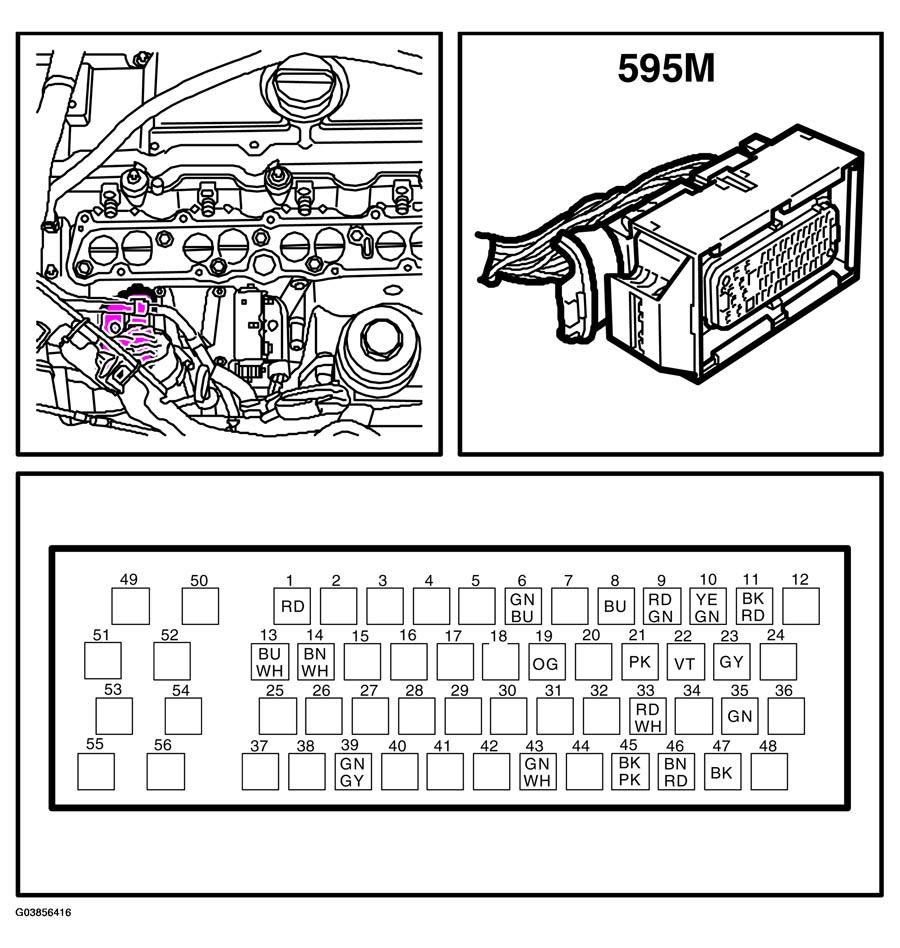

Fig 1: Identifying PSG16 Control Module Connector M Pin Outs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
