Fuel Tank

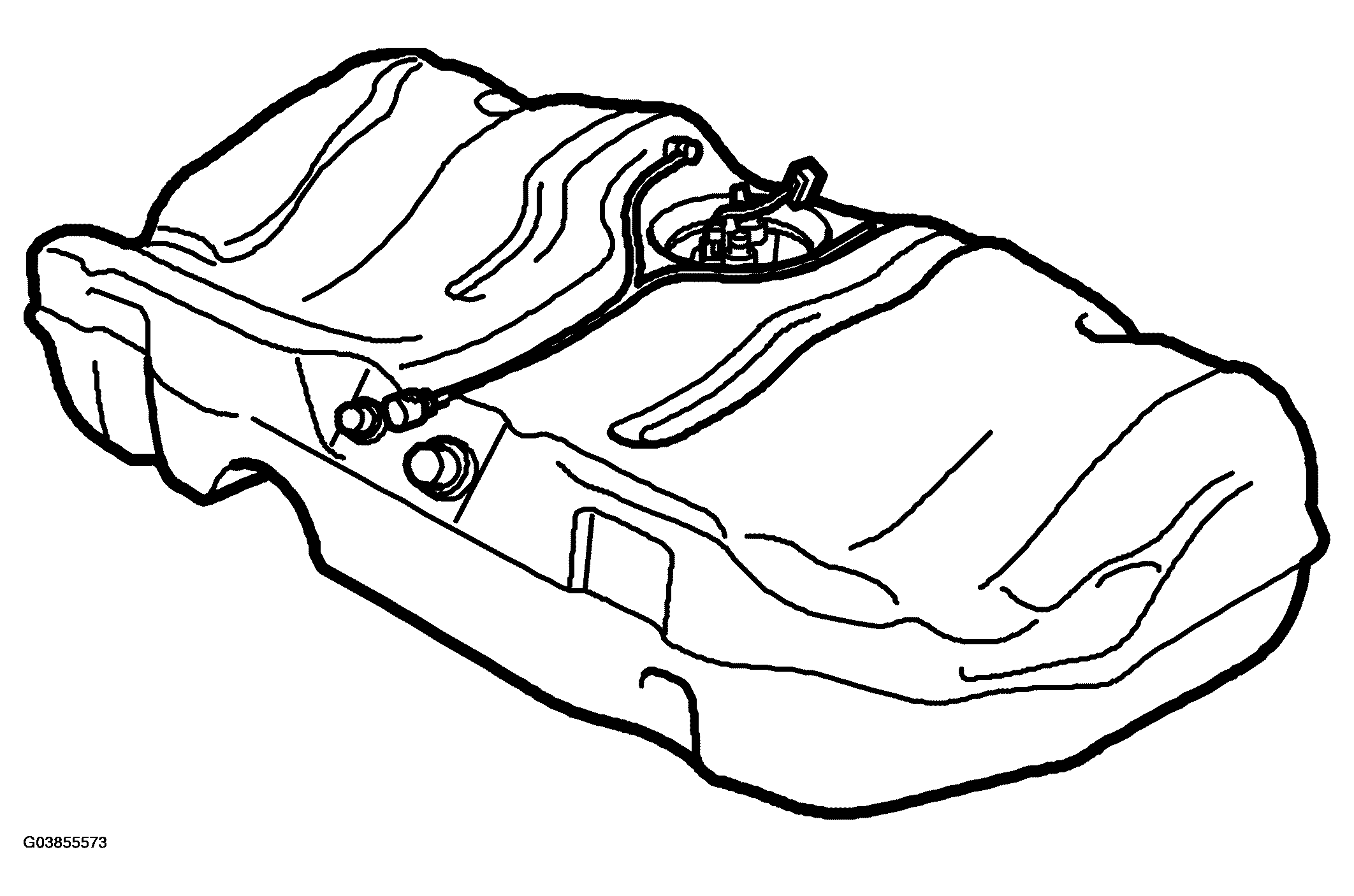

Fig 1: Identifying Fuel Tank

G03855573

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FUEL TANK SPECIFICATION CHART

Application	B205E	B235E/R
Total capacity	75 litres	70 litres
Fuel remaining when low fuel warning lamp comes on	10 litres	10 litres
